11
11

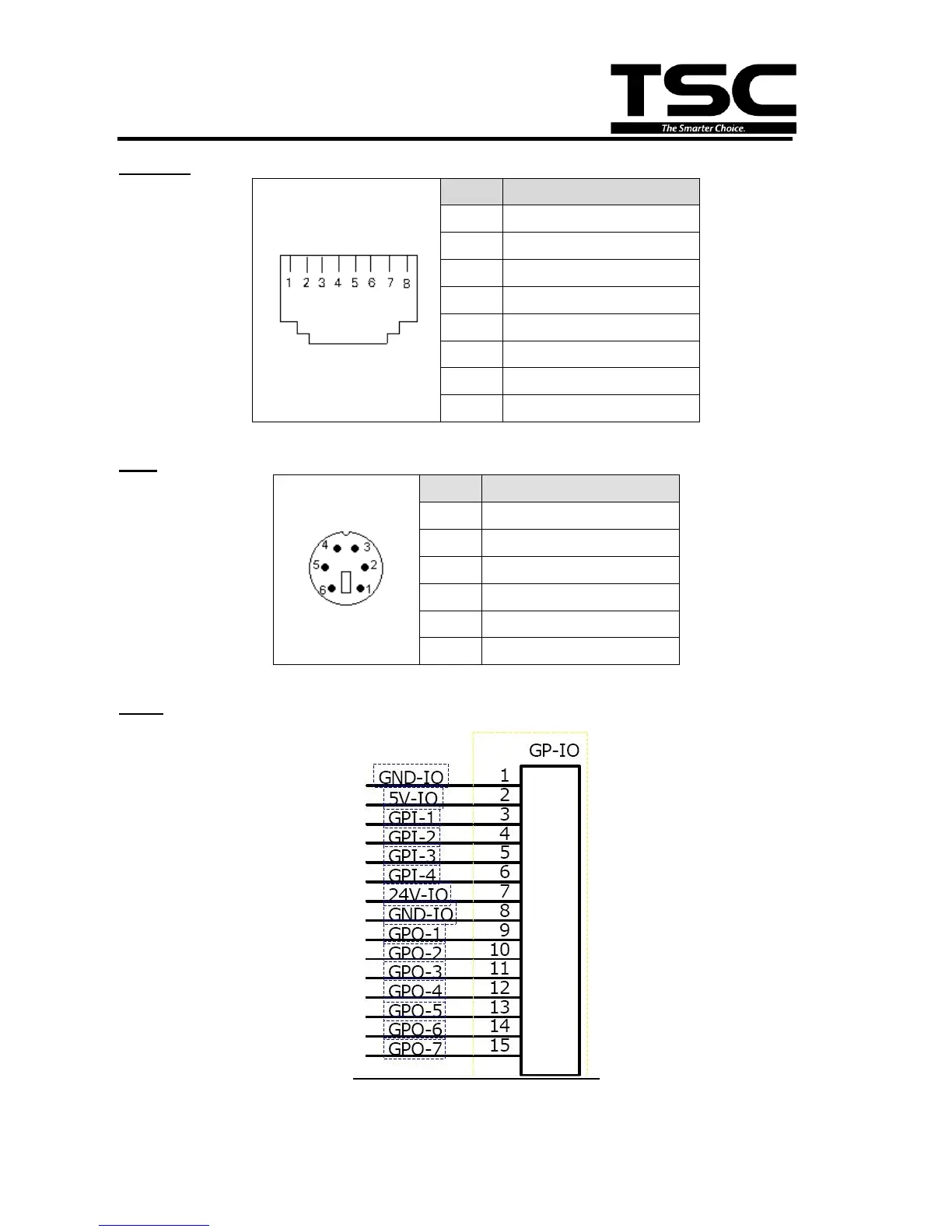

TTP-268M/ TTP-366M
Bar Code Printer Service Manual
Ethernet
PIN
CONFIGURATION
1
Tx+
2
Tx-
3
Rx+
4
N/C
5
N/C
6
Rx-
7
N/C
8
N/C
PS/2
PIN
CONFIGURATION
1
KBD Clock
2
GND
3
KBD Data
4
N/C
5
+5V(VCC)
6
N/C
GPIO
