TTP-268M/ TTP-366M
Bar Code Printer Service Manual

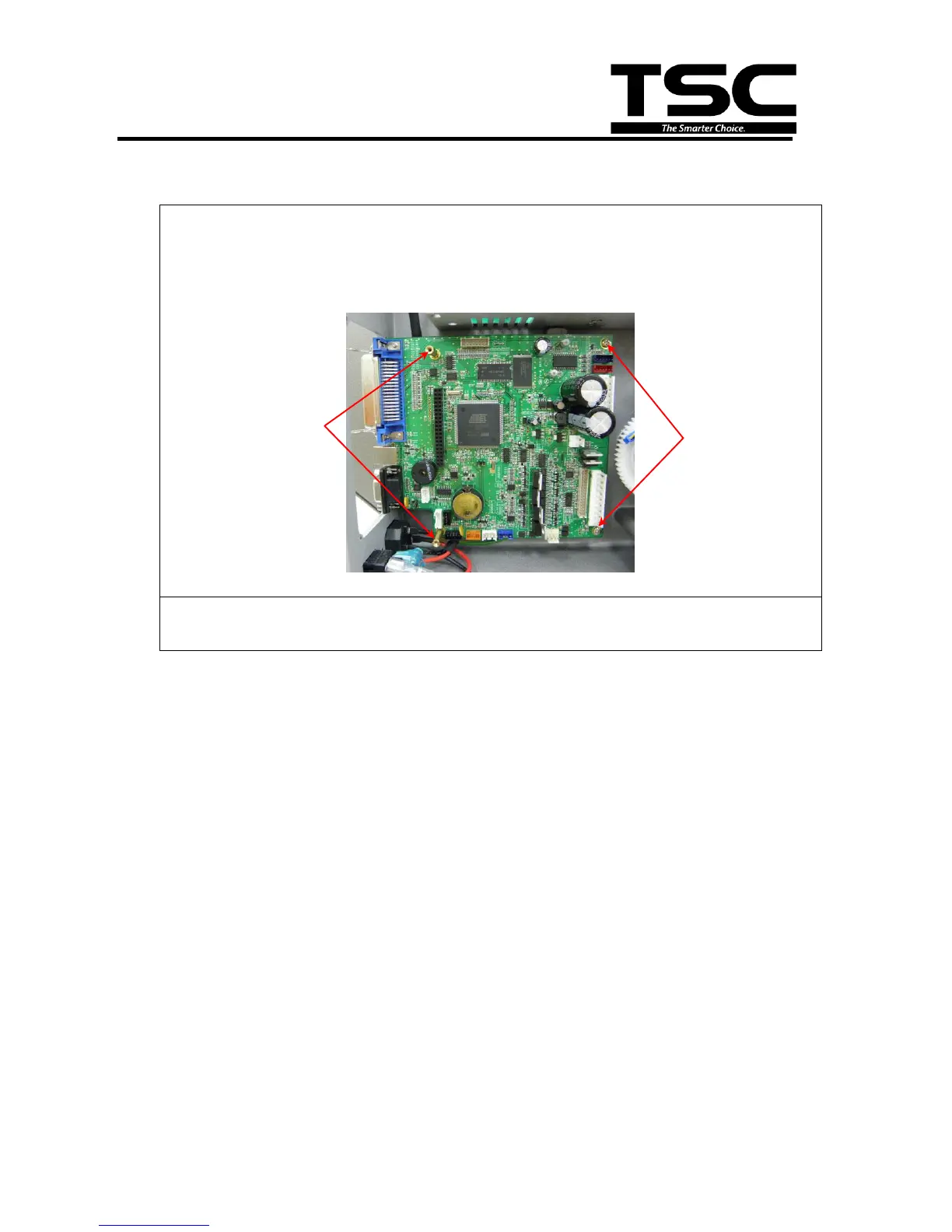

3.5 Replacing the Main Board
1. Refer to section 3.1 and 3.4 to remove electronics cover and multi-interface
board.
2. Disconnect all connectors from the main board.
3. Remove 2 copper pillars and 2 screws.
4. Replace the main board.
5. Reassemble the parts in the reverse procedures.
Copper pillars
Screws
