TTP-268M/ TTP-366M
Bar Code Printer Service Manual

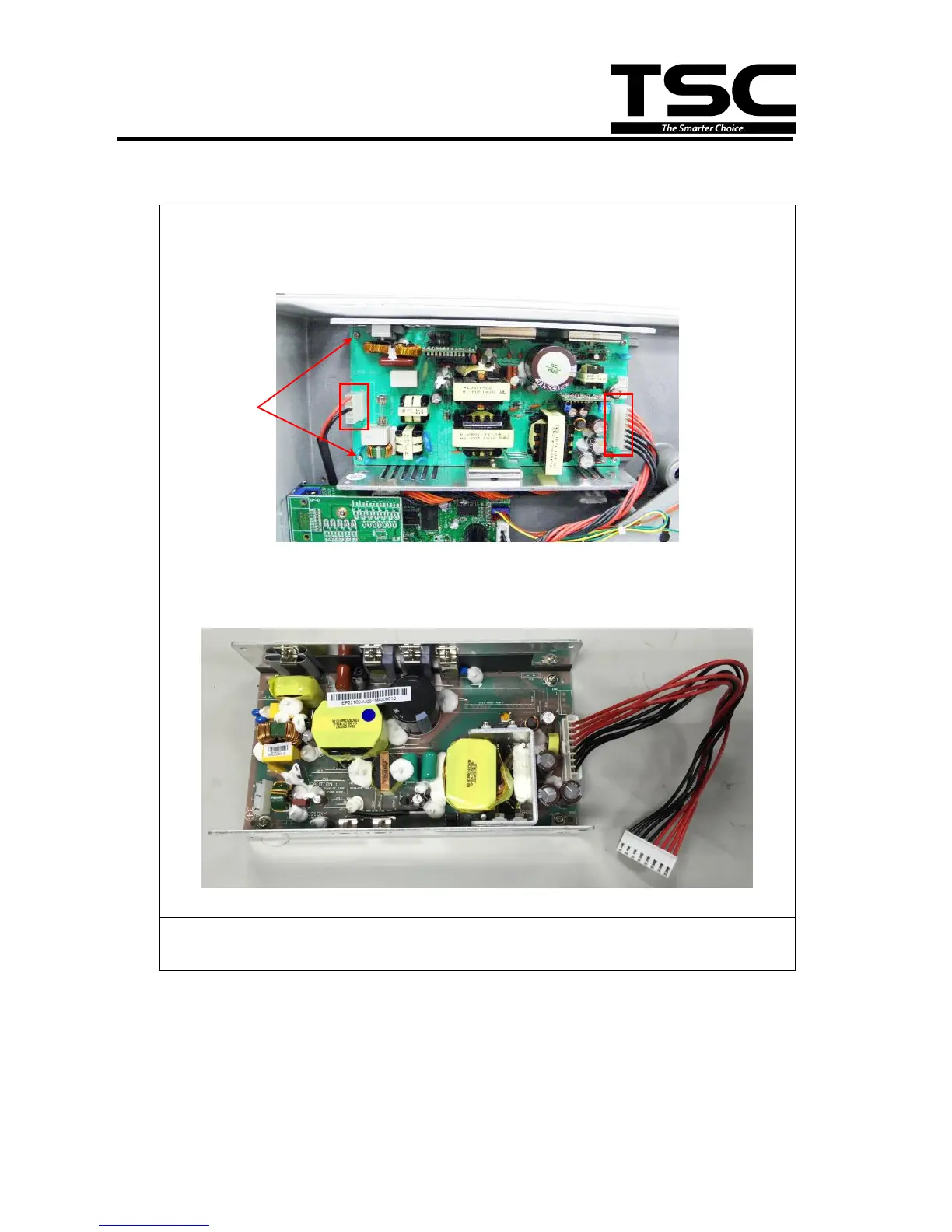

3.3 Replacing the Power Supply Unit
1. Refer to section 3.1 to remove the electronics cover.
2. Disconnect 2 connectors and remove 2 screws on the power supply unit.
Note:
For new power supply unit (as shown below), it need to change new DC
cable.(10PIN on PSU，8PIN on PCB)
3. Replace the power supply unit.
4. Reassemble the parts in the reverse procedures.
Screws
