TTP-268M/ TTP-366M
Bar Code Printer Service Manual

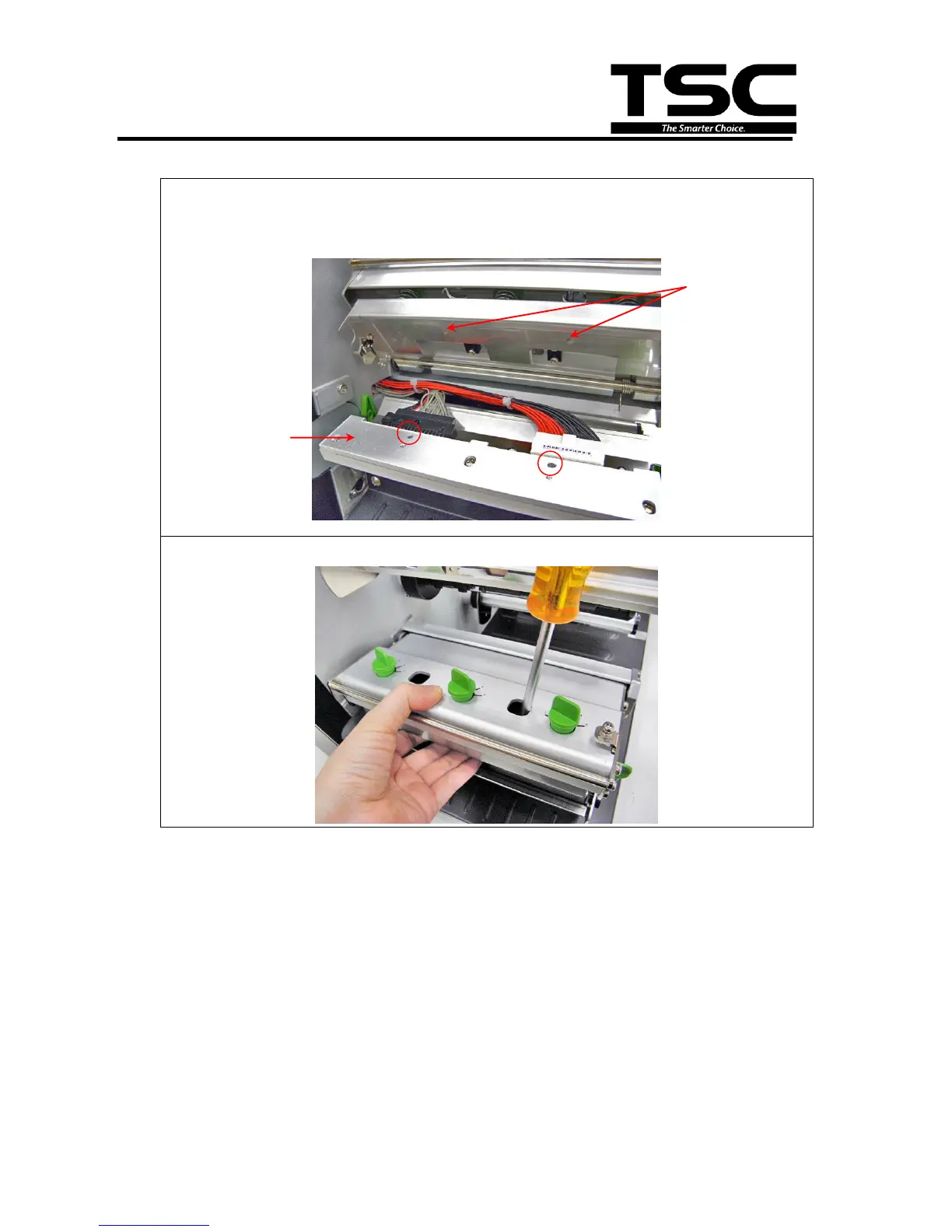

6. Connect the print head cable and carefully slide assembly into the print
mechanism. The holes of print head assembly must align and then insert the
tenons of print mechanism.
7. Reassemble the parts in the reverse procedures.
Print head
ASS'Y
Tenons
