TTP-268M/ TTP-366M
Bar Code Printer Service Manual
12

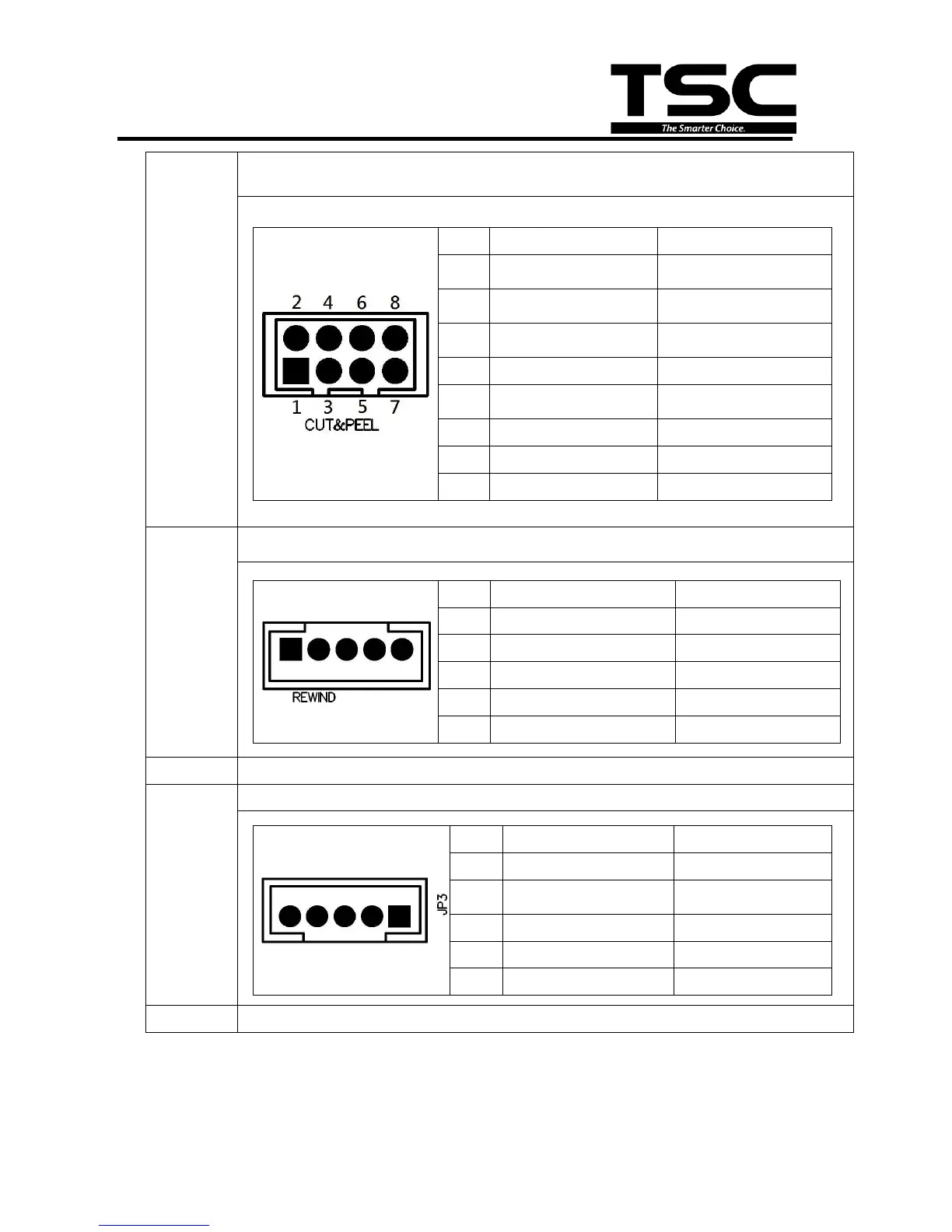

Cutter/peel-off sensor connector
Pin
Description
Voltage
1
Cutter enable
0V: Cutter work
5V: Cutter stop
2
Cutter direction
0V: Cutter positive cut
5V: Cutter negative cut
3
Cutter position sensor
switch
0V: Cutter stop
3.3V: Cutter work
4
Peel sensor receiver
A/D: 0~3.3V
5
Peel sensor emitter
4.0~4.1V: Emitter on
4.3~4.4V: Emitter off
6
Logic power
5V
7
GND
0V
8
Cutter power
24V
13
Rewind module connector
Pin
Description
Voltage
1
Rewind motor power
24V
2
Rewind signal
3.3V
3
Rewind enable
3.3V
4
Rewind sensor receiver
A/D: 0~3.3V
5
GND
0V
14
Stepping motor connector
15
Motor connector for ribbon rewind spindle
Pin
Description
Voltage
1
Logic power
5V
2
DC motor sensor
receiver
A/D: 0~3.3V
3
GND
0V
4
Motor signal A
Motor power
5
Motor signal B
Motor power
16
Motor connector for ribbon supply spindle (Option)
