13

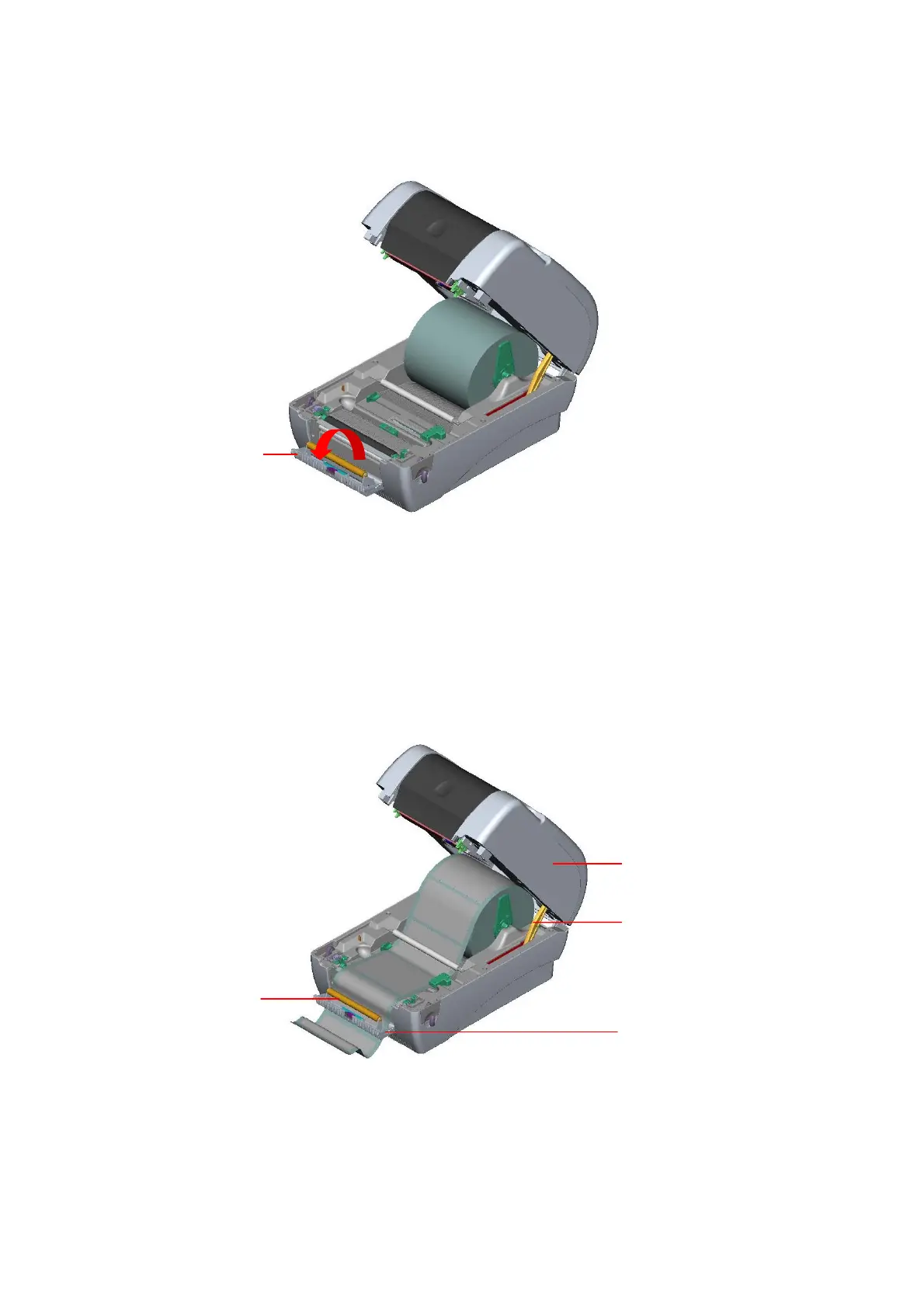

4. Open the peel-off panel by pulling it out.
Fig. 19 Open the peel-off panel
5. Feed the paper, printing side facing up, through the paper guide and pass over
the platen.
6. Lead the paper through the backing paper opening, beneath the roller, and tear
off one piece of the label.
7. Adjust the paper guide by removing left or right to fit the paper width.
Fig. 20 Lead the paper through the backing paper opening, beneath the
roller
8. Push the peel-off panel back to the printer.
Peel-off
panel
Roller
Top Cover
Top Cover Support
Peel-off panel
To Next Page
