38 Model 8710 DP-CALC
TM
Micromanometer and Model 8375 ACCUBALANCE
®
Air Balancing Tool
The direct inflow BSC hood includes (see
Figure 22):
❑ Fixed frame assembly with four removable flaps
❑ Fabric hood
❑ Hood support poles
❑ Base mounting hardware (threaded insert, washer, and screw)
❑ Telescopic pole stand with case to freely hold the 8710 Micromanometer in a vertical position when
mounted to a biological safety cabinet or lab hood

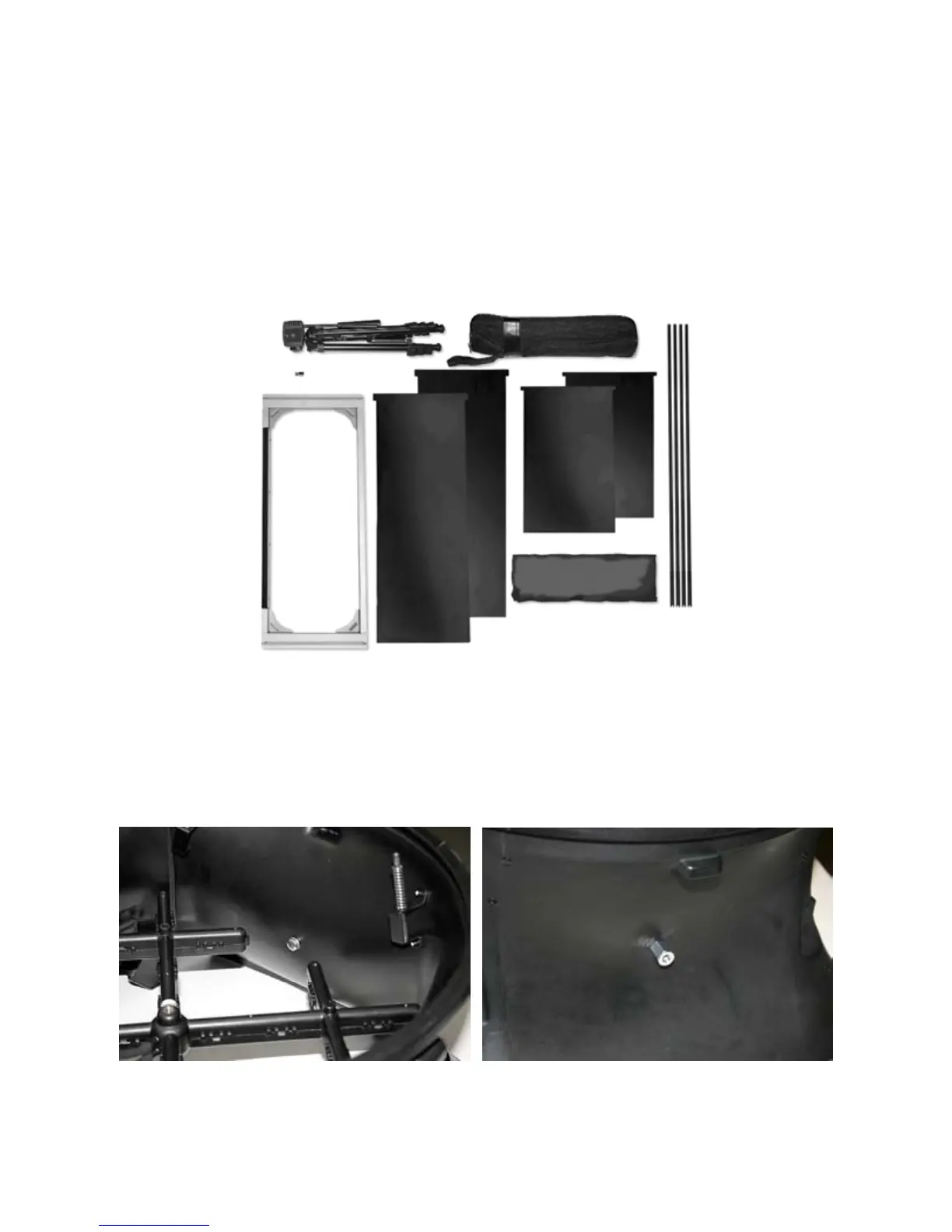

Figure 22: Direct Inflow Measurement Hood Components
To complete the assembly of the BSC hood, follow these seven steps:
1. Remove the plug located at the back of the base assembly and insert the Philips screw with washer
into the hole from the inside of the base (see
Figure 23). Place the threaded insert on the outside of
the base opposite the screw and tighten with a Philips screwdriver.
Figure 23: Remove Plug Located at Back of Base Assembly
