Setting Up SMPS Hardware 3-5
2. Locate the ¼-inch diameter (nominal) flexible tubing (3001903)
from the Classifier accessory kit and cut a length to 25 cm
[10 in.].
3. For the 3010 CPC, locate the Fitting adapter assembly
(1035992) from the SMPS accessory kit and fit the
3
⁄8-inch end
over the inlet of the CPC. This step is not needed for the 3772
CPC because the inlet of the 3772 is ¼-inch.
4. Locate the Flow equalizer assembly (1035989) from the SMPS
accessory kit and attach the straight portion of the tee to the
inlet of the 3772 or the fitting adapter on the 3010 CPC.
5. Position the 3772 or 3010 CPC so that the flexible tubing
connects from the DMA monodisperse aerosol outlet to the tee.

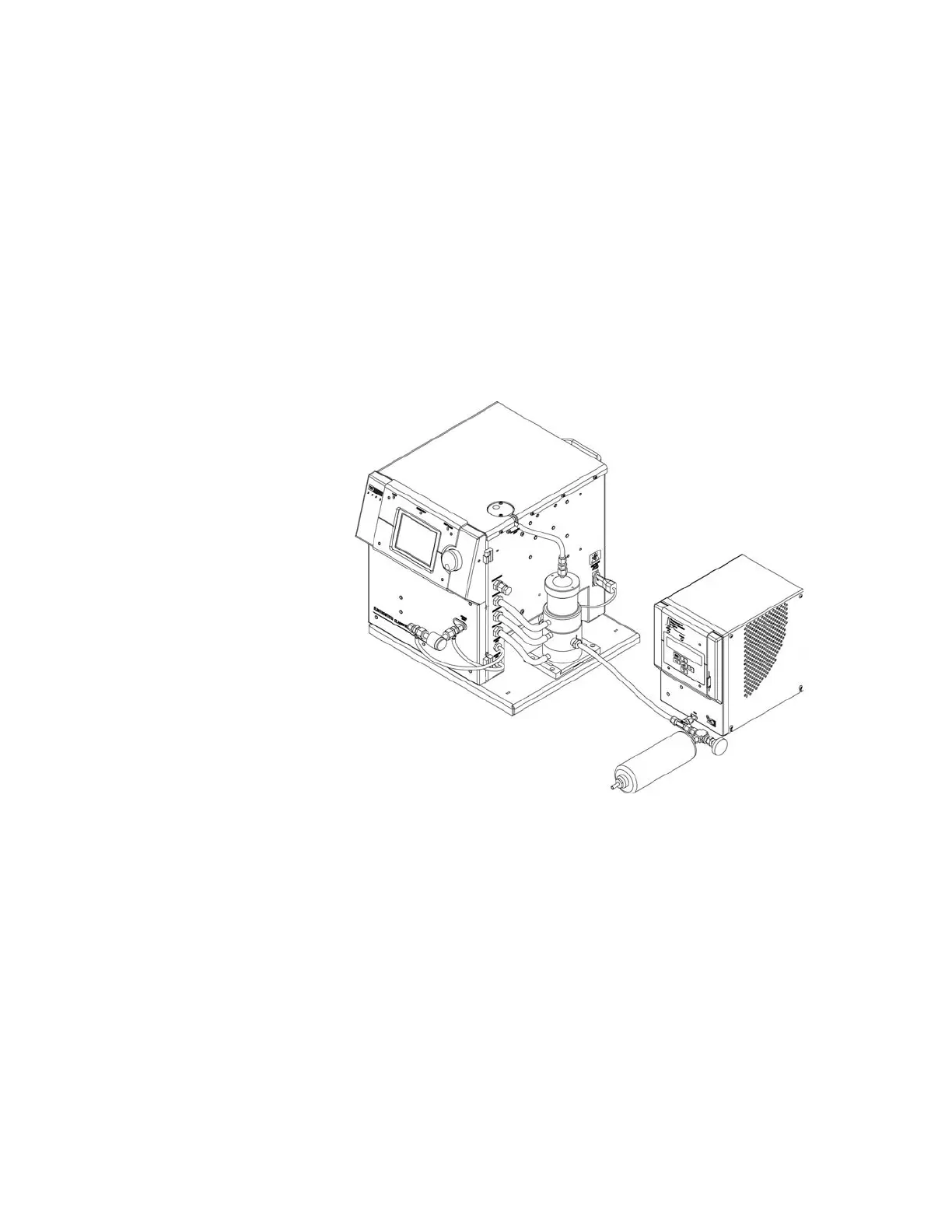

Figure 3-1
Model 3772 CPC with Nano DMA
