3-6 Model 3936 Scanning Mobility Particle Sizer
TM
(SMPS
TM
) Spectrometer

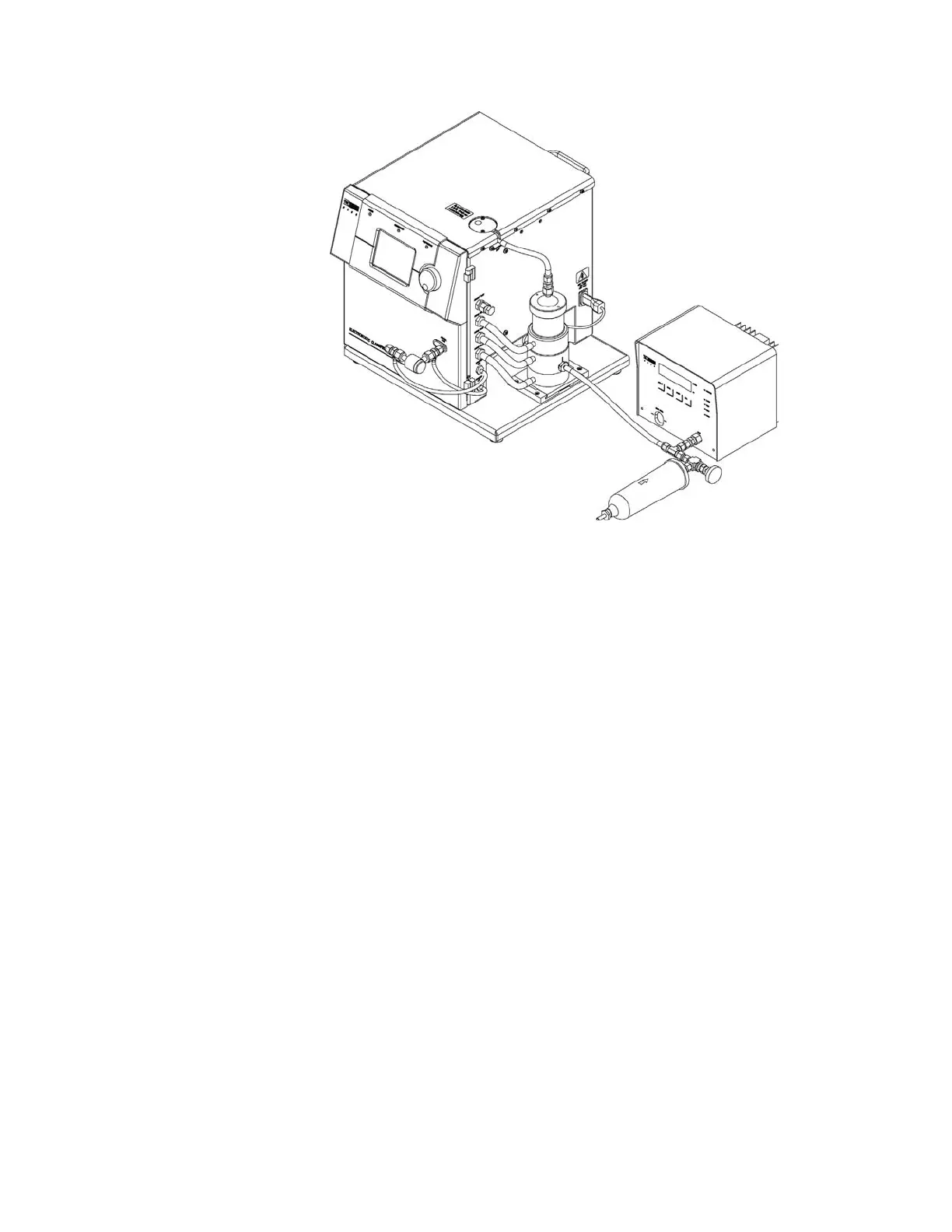

Figure 3-2
Model 3010 CPC with Nano DMA
Model 3772 or 3010 with Long DMA
Refer to Figure 3-3 and Figure 3-4 and the following instructions to
connect the plumbing between a Model 3080 Classifier with a
Model 3081 Long DMA and a Model 3772 or 3010 CPC:
1. Connect the CPC vacuum connection (¼-inch tube connection
on back panel) to a vacuum source or pump (see 3772 or 3010
CPC manual for details).
2. Locate the ¼-inch diameter (nominal) flexible tubing (3001903)
from the Classifier accessory kit and cut a length to 25 cm
[10 in.].
3. For the 3010 CPC, locate the Fitting adapter assembly
(1035992) from the SMPS accessory kit and fit the
3
⁄8-inch end
over the inlet of the CPC. This step is not needed for the 3772
CPC because the inlet of the 3772 is ¼-inch.
4. Locate the Flow equalizer assembly (1035989) from the SMPS
accessory kit and attach the straight portion of the tee to the
inlet of the 3772 CPC or the fitting adapter on the 3010 CPC.
5. Position the 3772 or 3010 CPC so that the flexible tubing
connects from the DMA monodisperse aerosol outlet to the tee.
