Operation 3-3

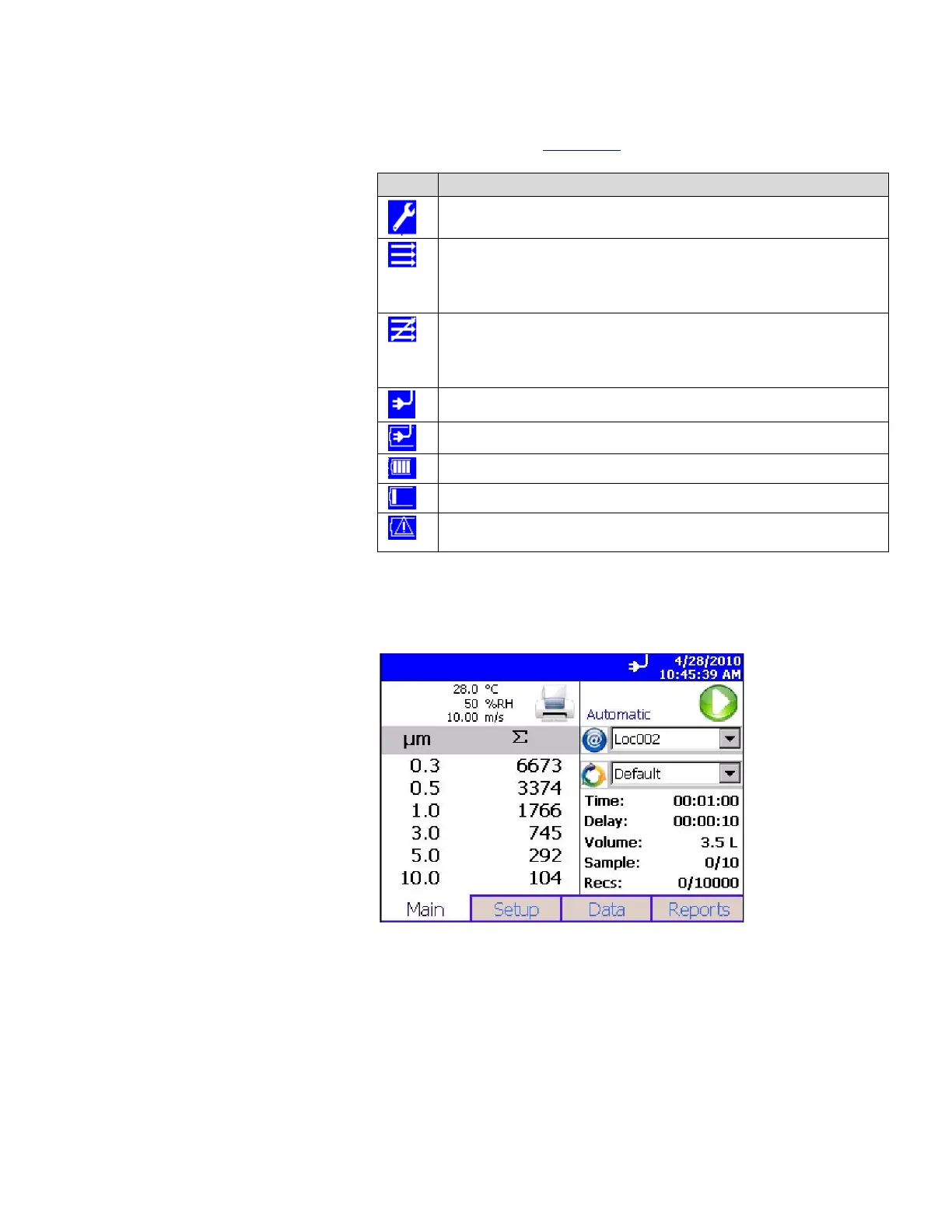

The status bar at the top of the screen shows the current time and
date settings (see the Setup Tab
) and indicates:
Icon Description
Laser requires service.
Sufficient flow through the instrument
Note: During Start Delay (Delay) and Hold Times (Hold), this is only
an indicator of flow On. During Sample Time (Time), this is an
indicator of flow within specified tolerances.
Insufficient flow through the instrument
Note: During Start Delay (Delay) and Hold Times (Hold), this is an
indicator of flow Off. During Sample Time (Time), this is an indicator
of flow not being within specified tolerances.
Operating on AC power, no battery installed.
Operating on AC power, battery is installed and charging.
Battery charged, and operating on battery.
Low battery, and operating on battery.
Battery must be charged, and operating on battery. Icon will also
show if attempting to run the 100 L/min model on a single battery.
The right side of the Main Tab shows locations and other
information (sample time, delay/hold time, etc.). These can be
configured using the Setup Tab.
