Maintenance
c. Pull out single cylindrical filter from filter well. If filter well is visibly
dirty, blow out with compressed air.

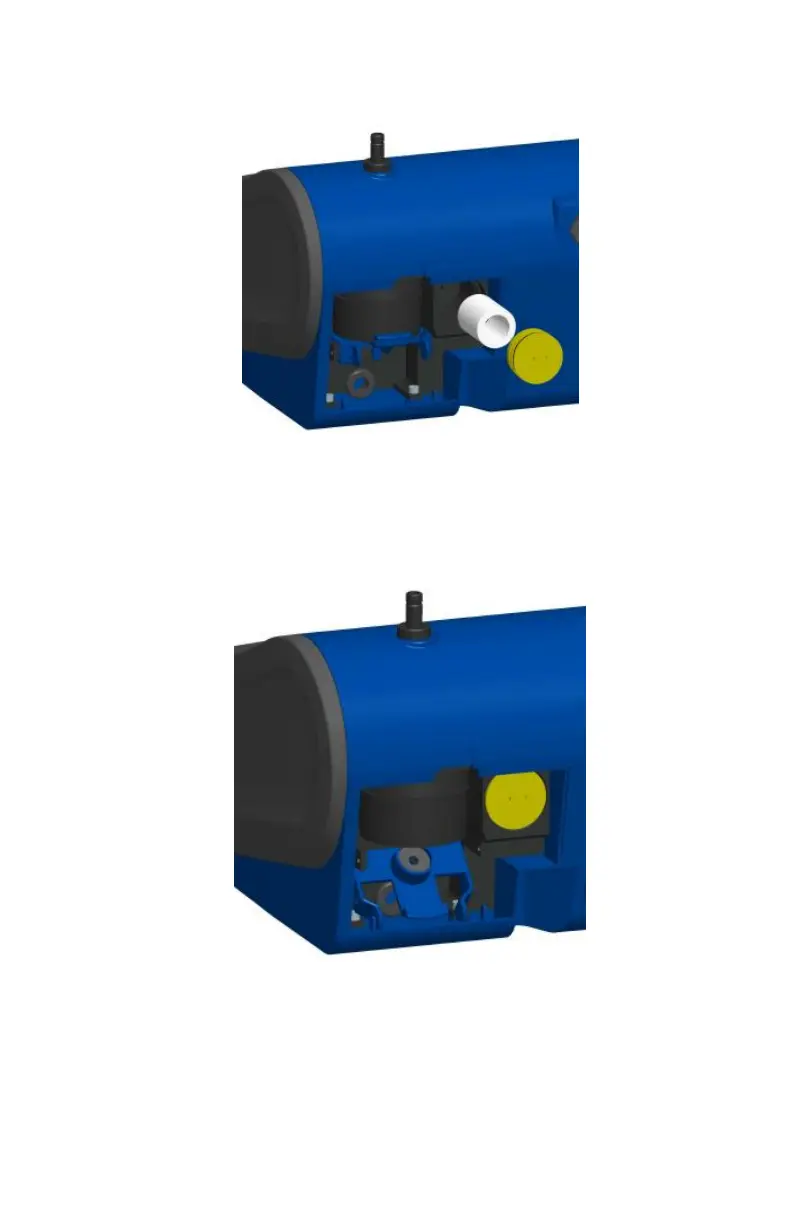

Figure 4-6: Pull out Single Cylindrical Filter from Filter Well
(Desktop Model)
d. Put new filer (P/N 801673) back into filter well and screw filter cap
back into place.
e. Open blue retention clip by pinching ends inward and pushing down.
Figure 4-7: Open Blue Retention Clip
