PCM30U, PCM30U-OCH – User's, Operating and Maintenance Manual

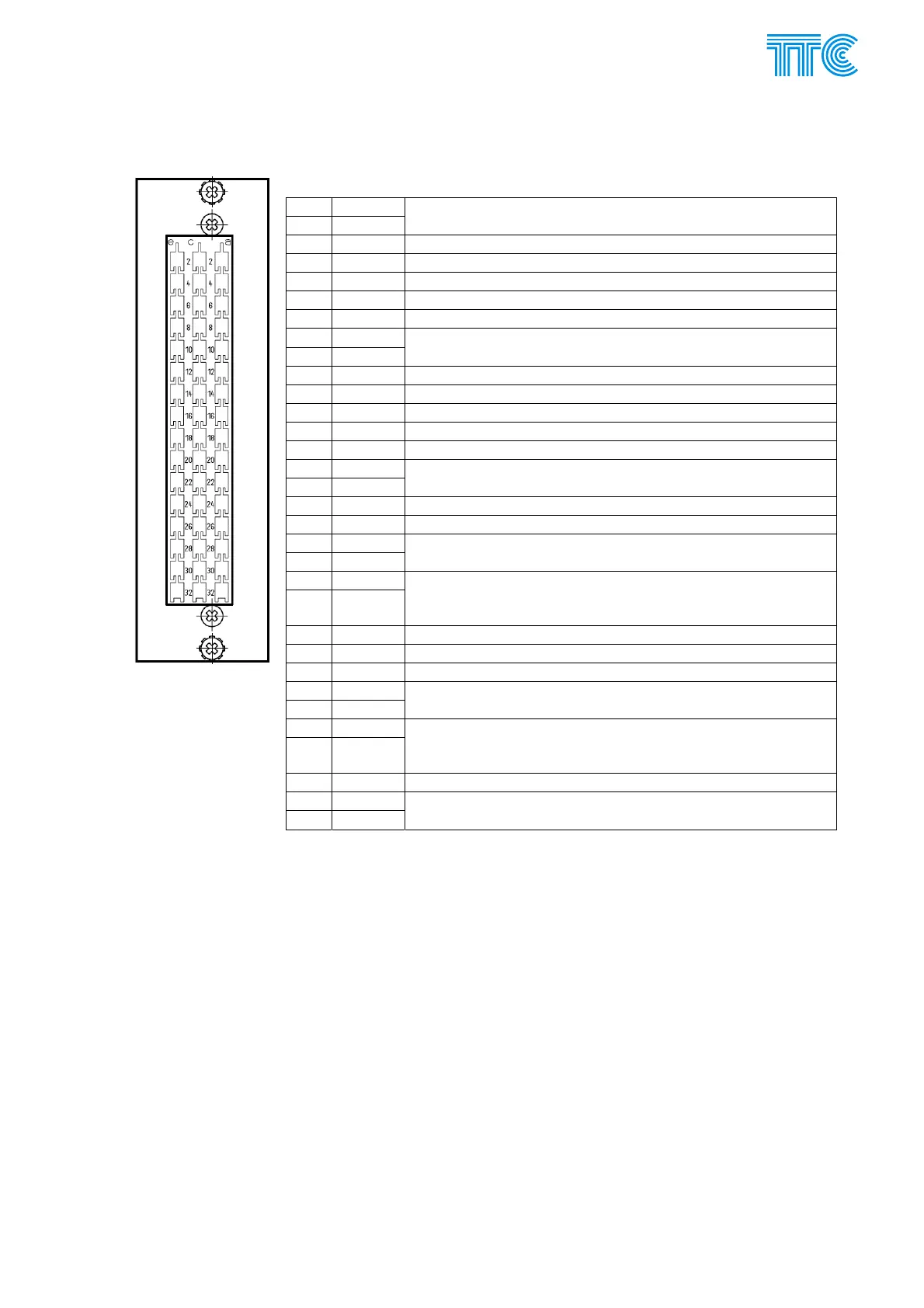

E.2.6 Connector of the RO4 unit
a2 INP1A
a4 INP1b
Input of channel 1 – 50Hz signal
a6
a8
a10 OFF1+ Input for the blocking of the output of the 1
st
channel
a12 OFF1- Input for the blocking of the output of the 1
st
channel
a14
a16 INP2A
a18 INP2b
Input of channel 2 – 50Hz signal
a20
a22
a24 OFF2+ Input for the blocking of the output of the 2
nd
channel
a26 OFF2- Input for the blocking of the output of the 2
nd
channel
a28
a30 GND
a32 GND
ground
e2
e4
e6 OUT1a
e8 OUT1b
Output of channel 1 – 50Hz signal
e10 ERR1+
e12 ERR1-
Fault in channel 1 (the fault: relay anchor dropped)
(the status of the contacts can be selected, using XJ206
jumper)
e14
e16
e18
e20 OUT2a
e22 OUT2b
Output of channel 2 – 50Hz signal
e24 ERR2+
e26 ERR2-
Fault in channel 2 (the fault: relay anchor dropped)
(the status of the contacts can be selected, using XJ206
jumper)
e28
e30 ERR+
e32 ERR-
Output of the fast summation (channels 1+2) error optic
relay
Power Channel Modules E-38 446S037.914.14N00
