E.3 The ROR Module
ROR - The protection interface module, Russian version.
Basic functionality of the ROR module is the same as that of RO3. The 4 wire interface of the A/D and
D/A translators without output amplifiers and output/input transformers is connected to "ustrojstvo
sopraženija", which compares local and opposite signals and alters the unit's operation to the two-wire
interface of the comparative protection of DZL.

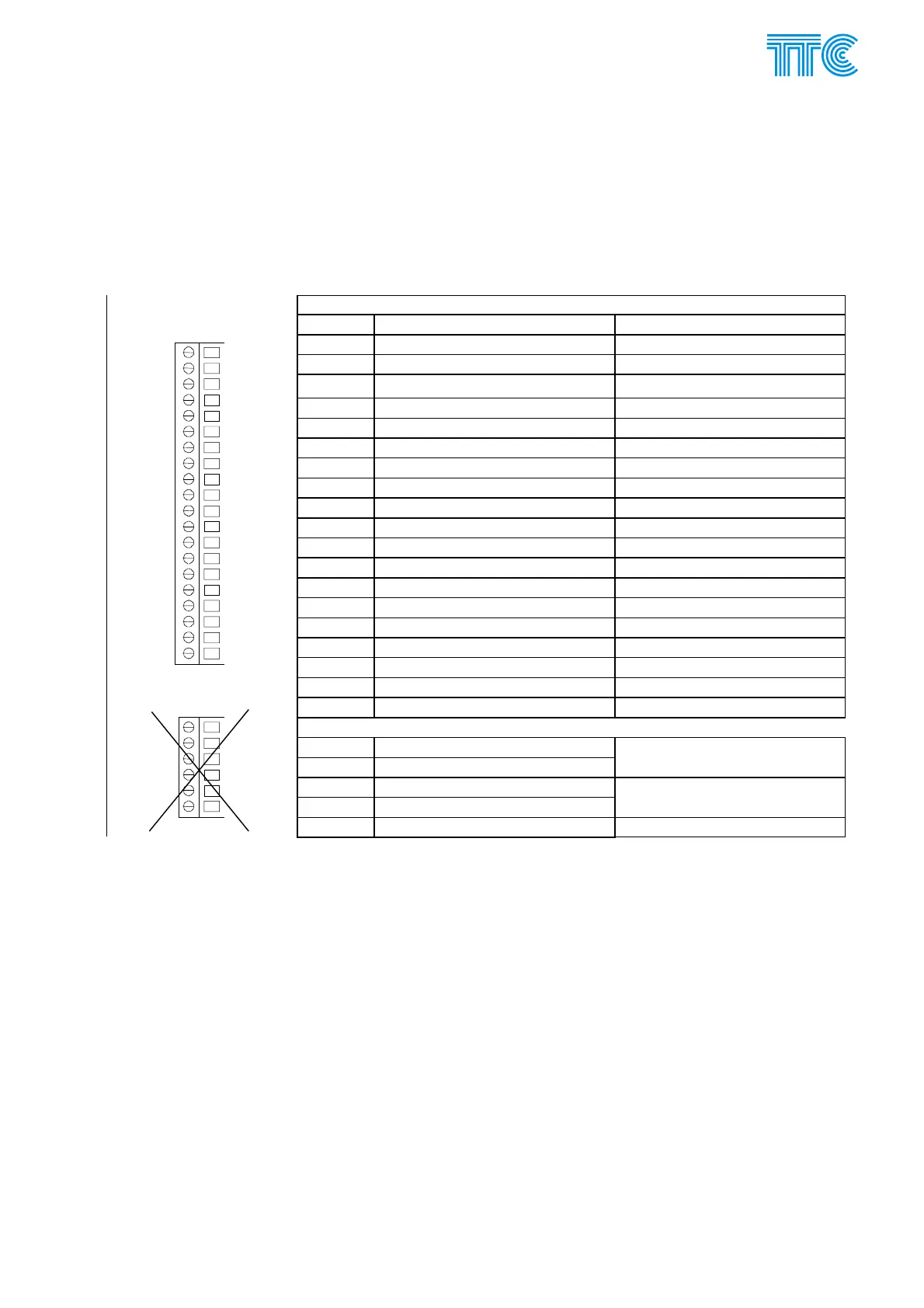

ROR
1 INP1a Channel 1 input
2 INP1b Channel 1 input
3 OUT1a Output contact 1
4 OUT1b Output contact 1
5 BLOCK1a Error contact 1
6 BLOCK1b Error contact 1
7 GND Electrical grounding
8 INP2a Channel 2 output
9 INP2b Channel 2 output
10 OUT2a Output contact 2
11 OUT2b Output contact 2
12 BLOCK2a Error contact 2
13 BLOCK2b Error contact 2
14 GND Electrical grounding
15 +RBLOCK Quick cumulative error contact
16 -RBLOCK Quick cumulative error contact
17 +BLOKIN1 External blocking 1
18 -BLOKIN1 External blocking 1
19 +BLOKIN2 External blocking 2
20 -BLOKIN2 External blocking 2
1
2
3
4
5
1
20
1
6
Power Channel Modules E-42 446S037.914.14N00
