E.1.4 Combination and time features

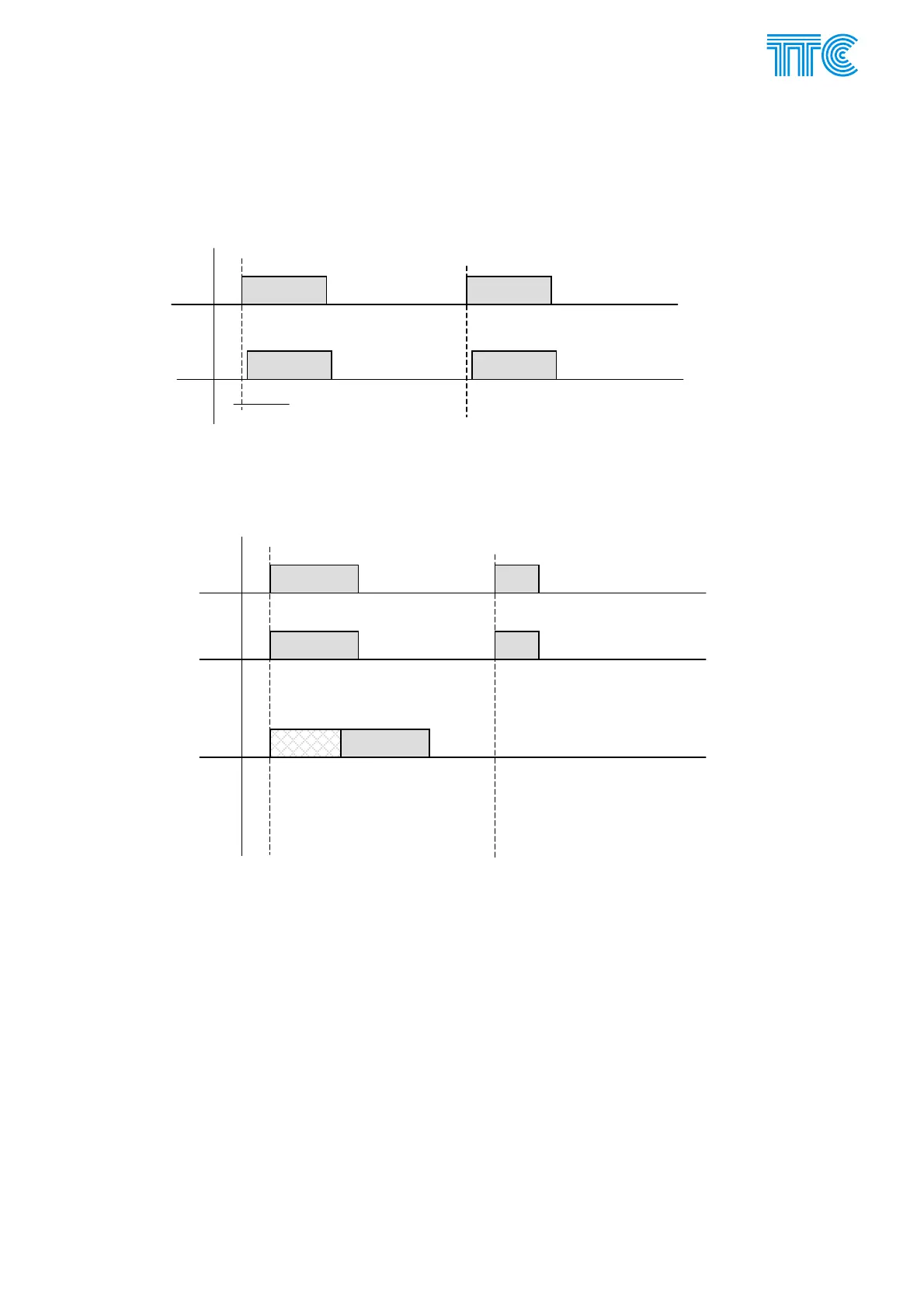

E.1.4.1 Standard function
Input state is transferred to remote unit outputs with minimal transport delay.
Input 1
Output 1
Td
E.1.4.2 Input filtering
Input filtering is minimal presence of command at input required to be transmitted to remote PBS. Shorter
input signals are ignored. Result is transmission delay.
Input 1
10 ms
Transmission
of input 1 to
remote PBS.
Input filtering
0 ms
5 ms
10 ms 5 ms
Transmission
of input 1 to
remote PBS.
Input filtering
8 ms.
8 ms 10 ms
