Tuff Torq K92 Hydrostatic Transaxle
4WD Output Disassembly (continued)

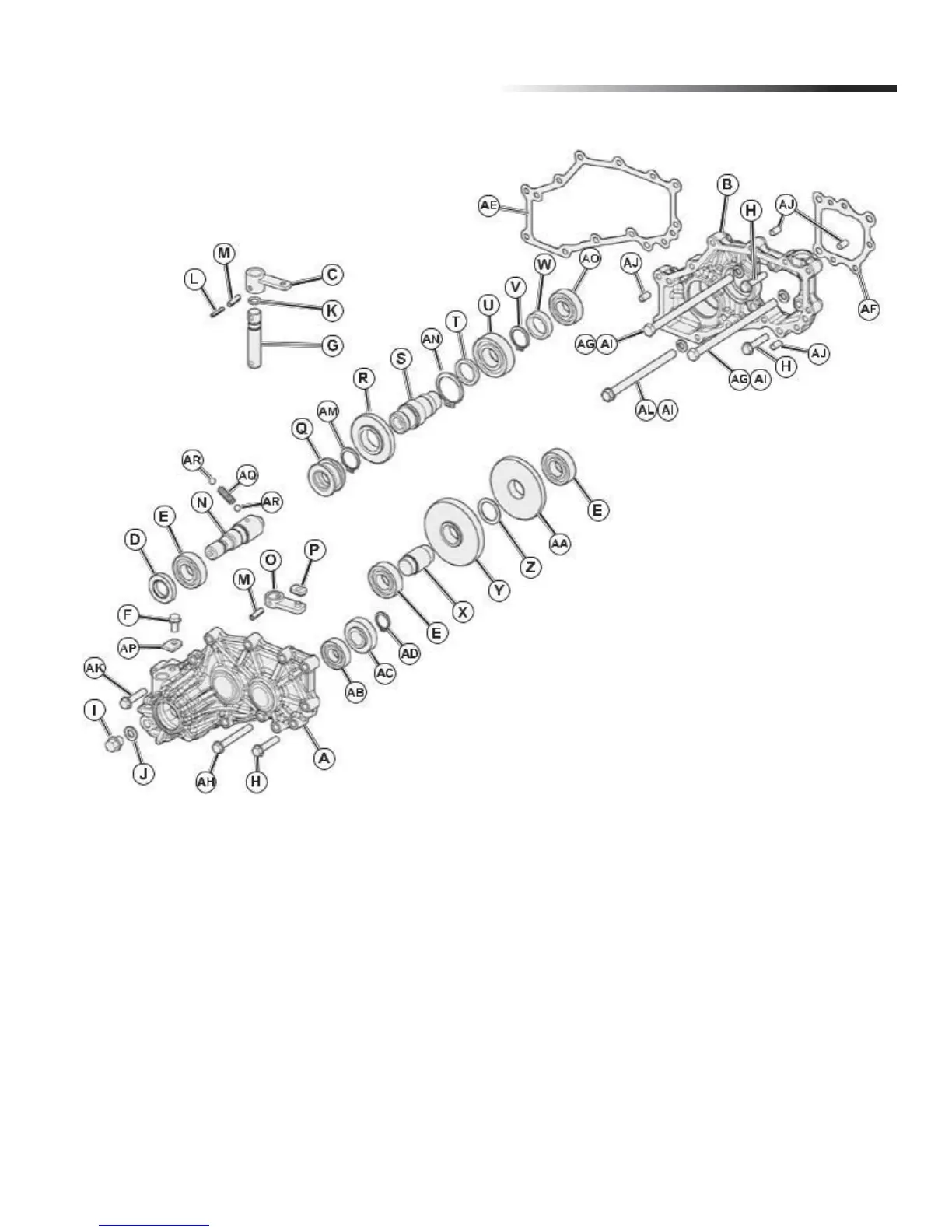

Fig. 52, 4WD Output Disassembly
U - Bearing AG - Bolt
V - Snap Ring AH - Bolt
W - Collar AI - Washer
X - Shaft Reduction 4WD AJ - Guide Pin
Y - Gear 4WD AK - Bolt
Z - Washer AL - Bolt
AA - Gear AM - Ring
AB - Bearing AN - Ring
AC - Gear AO - Bearing
AD - Ring AP - Keeper Plate
AE - 4WD Gear Box Gasket AQ - Spring
AF - 4WD Gear Box Cover Gasket AR - Detent Ball
27
