Apollo Modular Gym System (Base Unit)
19

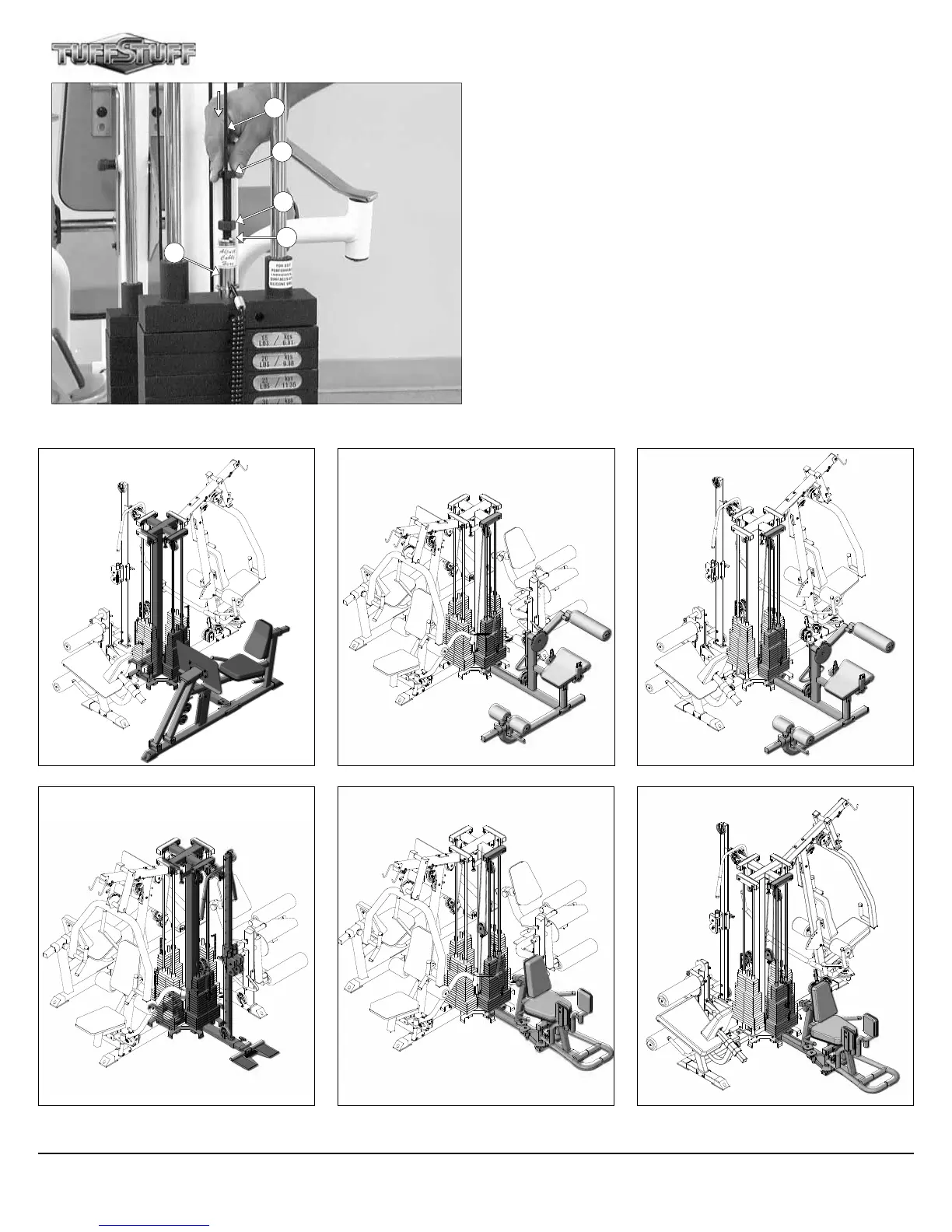

Leg Press Station Ab/Back Station Ab/Back Station
Single Column Station
Inner Outer Thigh Station
FIG. 66 Proceed to Assemble two of the four optional attachments to the sides of the unit.
Inner Outer Thigh Station
FIG. 65 Attach one Split Hex Tap Bolt 1/2-13 X 3 1/2 (#151) to the
Leg Extension Cable (#26). Then, thread one Finished Hex Nut 1/2-
13 (#88) and insert one Split Lock Washer 1/2” (#153) to the Split Hex
Tap Bolt 1/2-13 X 3 1/2 (#151).
Next, thread the Split Hex Tap Bolt 1/2-13 X 3 1/2 (#151) to the Top
Plate Selector Bar (#58).
26
151
88
153
58
