Navigation
The DSP parameters are organised by channel. The currently selected channel is shown in the top
left hand corner of the display. You can navigate between the channels by pressing the channel
buttons. Pressing the channel buttons will scroll through the channels, utilities and back to the
default screen. When using a Preset that is stereo linked, the channel selection will reflect this. For
example ‘1&4’ indicates outputs 1 and 4. When navigating onto an output channel, the usage of
the output, as define in the factory preset, will be shown briefly at the top of the screen.
LMS-D26
Out1 Freq Width Gain
EQ1 100Hz 1.4Q 0.0dB
a
b
c
CHANNEL
EDIT

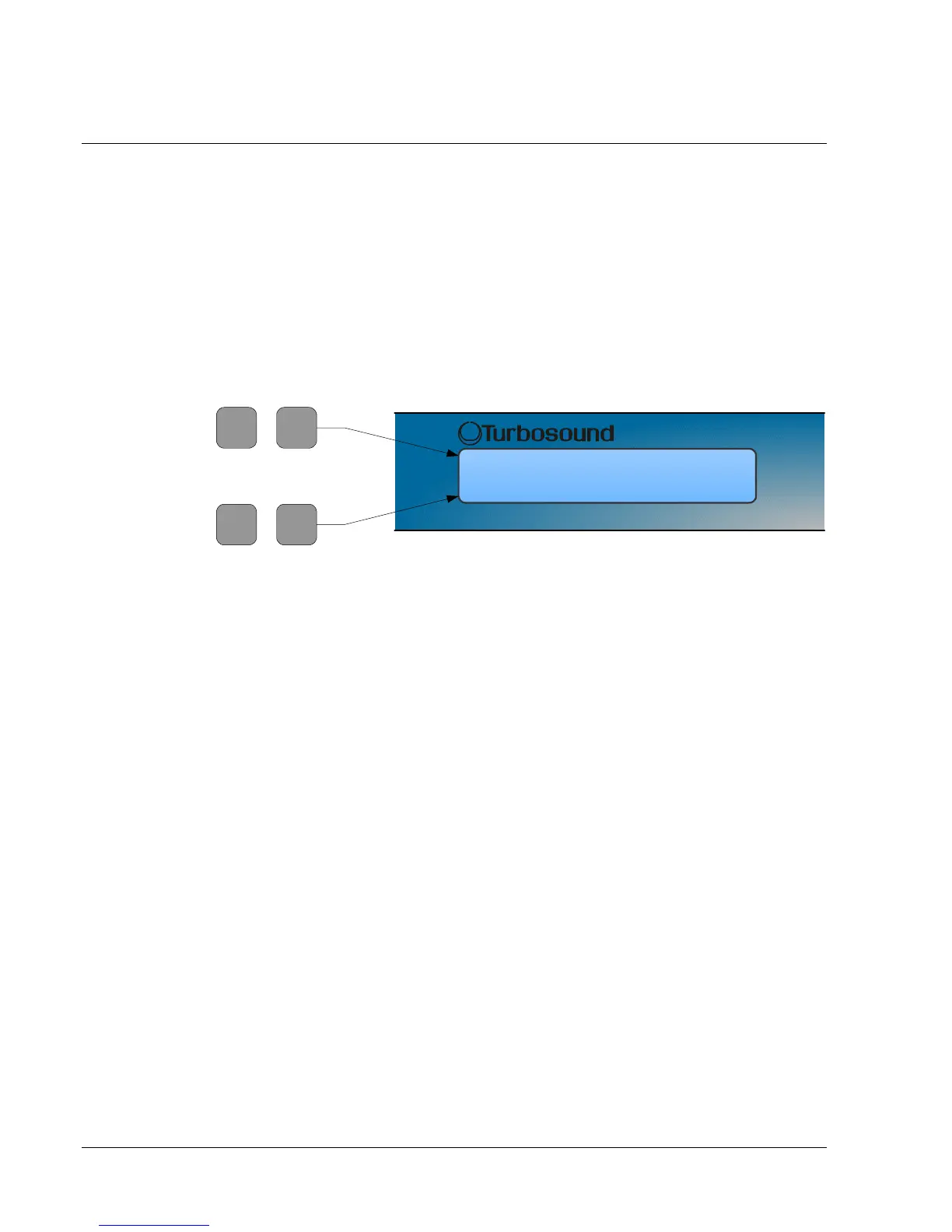

Pressing the edit navigation buttons gives access to the various pages of parameters available for
each channel. The currently selected page is shown in the bottom left hand corner of the display,
this is omitted on some pages where the function is obvious. The screen shows up to three
(normally related) parameters for a given part of the processing functions on a given channel.
The edit buttons allow you to scroll, in either direction, through the different processing pages for
a given Channel. When you go past the last page, you will be returned to the default page.
The channel buttons allow you to scroll, in either direction, through the input and output channels,
whilst trying to maintain the currently viewed processing block. If the channel you scroll to does
not have the currently viewed processing block, the next one will be shown instead.
NB. When the unit powers-up, the settings will be the same as those when the unit was last
switched off.
