17

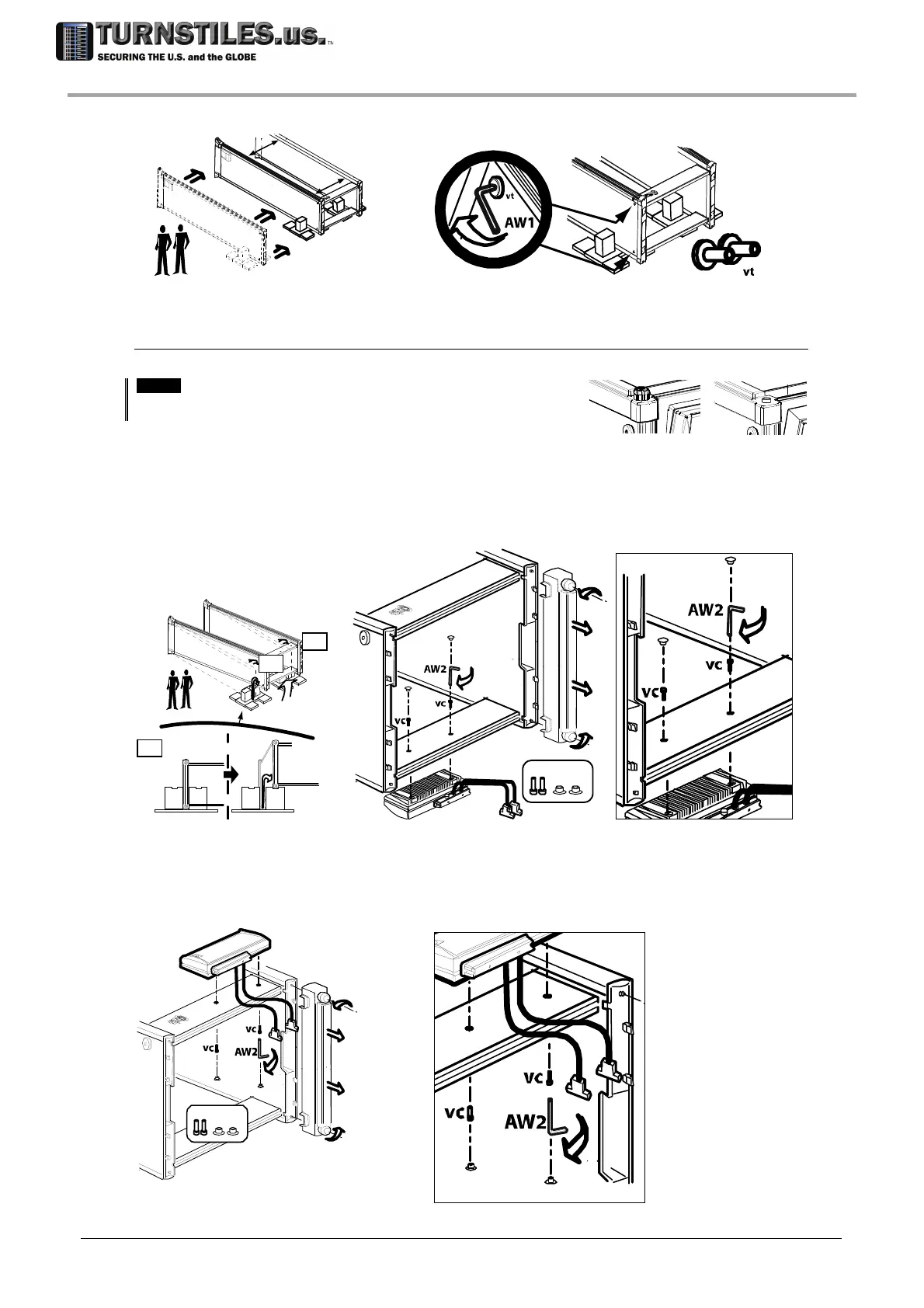

Approach the other panel and attach the crossbars, using vt screws and AW1 Allen key.
RX
TX
TX
d
d
Attaching the control unit
Remove the protection caps of the panels, to access the inner connectors.
[OPTION]
NOTE: the protection caps of the standard protection degree
configuration are fitted with locking knobs. For higher protection degrees, the
knobs are replaced by screws: use Allen key AW2 or TX1 to free them.
Configuration A
Lift the archway, placing it on the supports S1 and S2 Attach the control unit to the lower
crossbar, using vc screws and AW2 Allen key (included in the installation kit). Tightening torque:
1.2 Nm. Cover the entry side of the fixing holes with the cbc caps.
cbc
vc
cbc
cbc
cbc
cbc
Configuration B
Attach the control unit to the upper crossbar, using vc screws and AW2 Allen key (included in the
installation kit). Cover the entry side of the fixing holes with the cbc caps. Tightening torque: 1.2
Nm.
cbc
vc
cbc
cbc
cbc
cbc
S2
S1
S1
