23

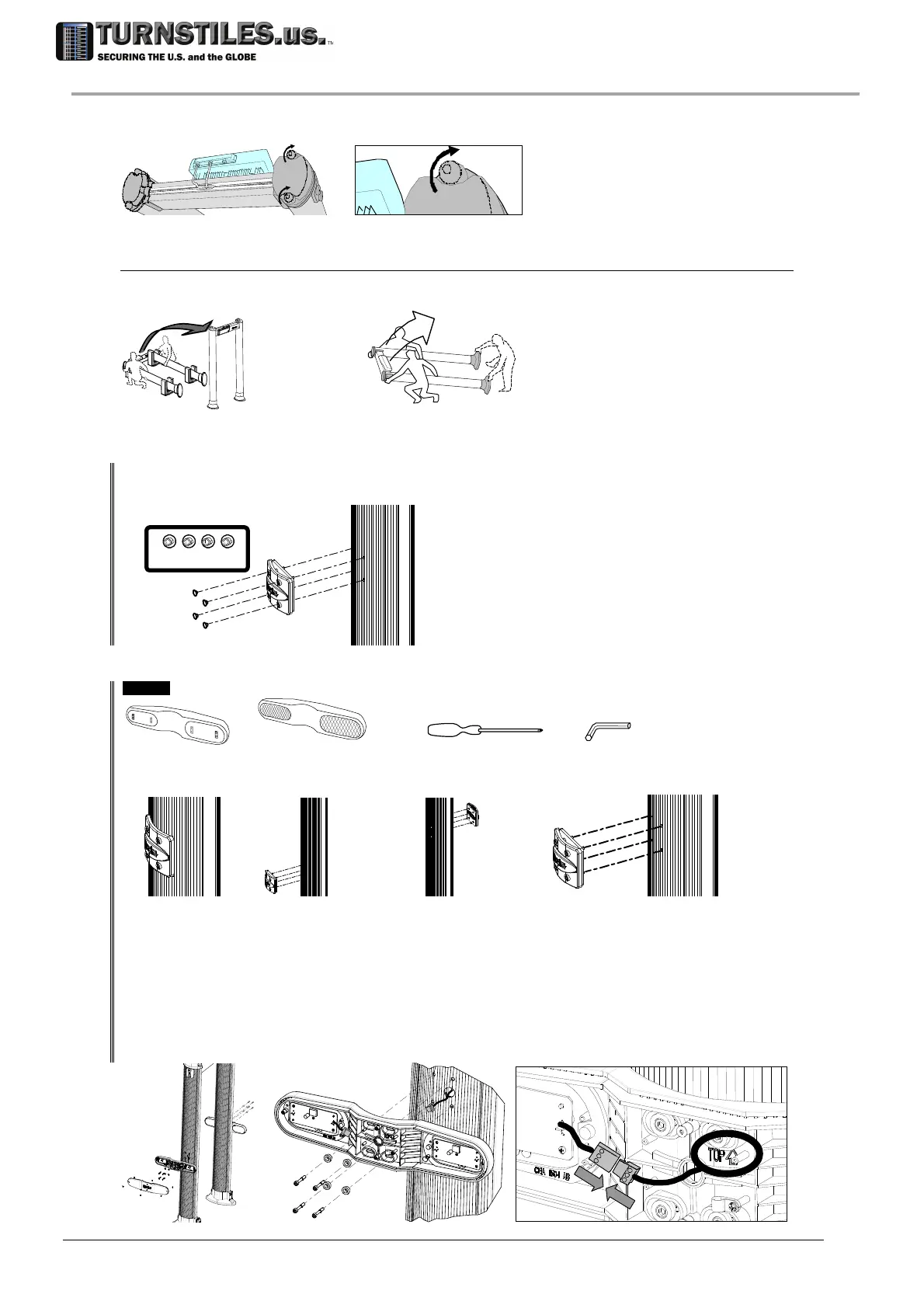

Remount the upper protection caps of the columns.
Lifting the archway up
Lift up the assembled archway from the floor.
Remark: it is mandatory that this operation is performed by two or more people!
Cover for photocell connections
This cover protects the connections pre-arranged for the optional transit counter. This cover must be removed only to
install the photocell modules.
pcc
[OPTION]
Version with photocells: mounting the photocells
PH2
AW
Photocells Reflectors Phillips screwdriver and Allen wrench (included in the installation kit)
Remove the pc cap using AW key.
pc
Open the Ph photocell module using a PH2 cross-head screwdriver.
Pass the cable from the TX column through the central hole in the internal part of the Ph module and fix it to the TX
column using the AW Allen wrench provided (TOP arrow up!).
Attach the photocell module connector to the cable coming from the TX column.
Open the Rf reflector module using the PH2 cross-head screwdriver.
Fix the internal part of the Rf reflector module to the RX column using the AW Allen wrench.
Ph
Rf
Ph
TX
RX
TX
