TURNTIDE Hub 7 - Product Overview; Dimensions; Left View

3
© Turntide Technologies. Condential. All Rights Reserved. DOCT00369-082321 Last Modied: 2023-03-09
1. Product Overview
1.1. Turntide Hub 7

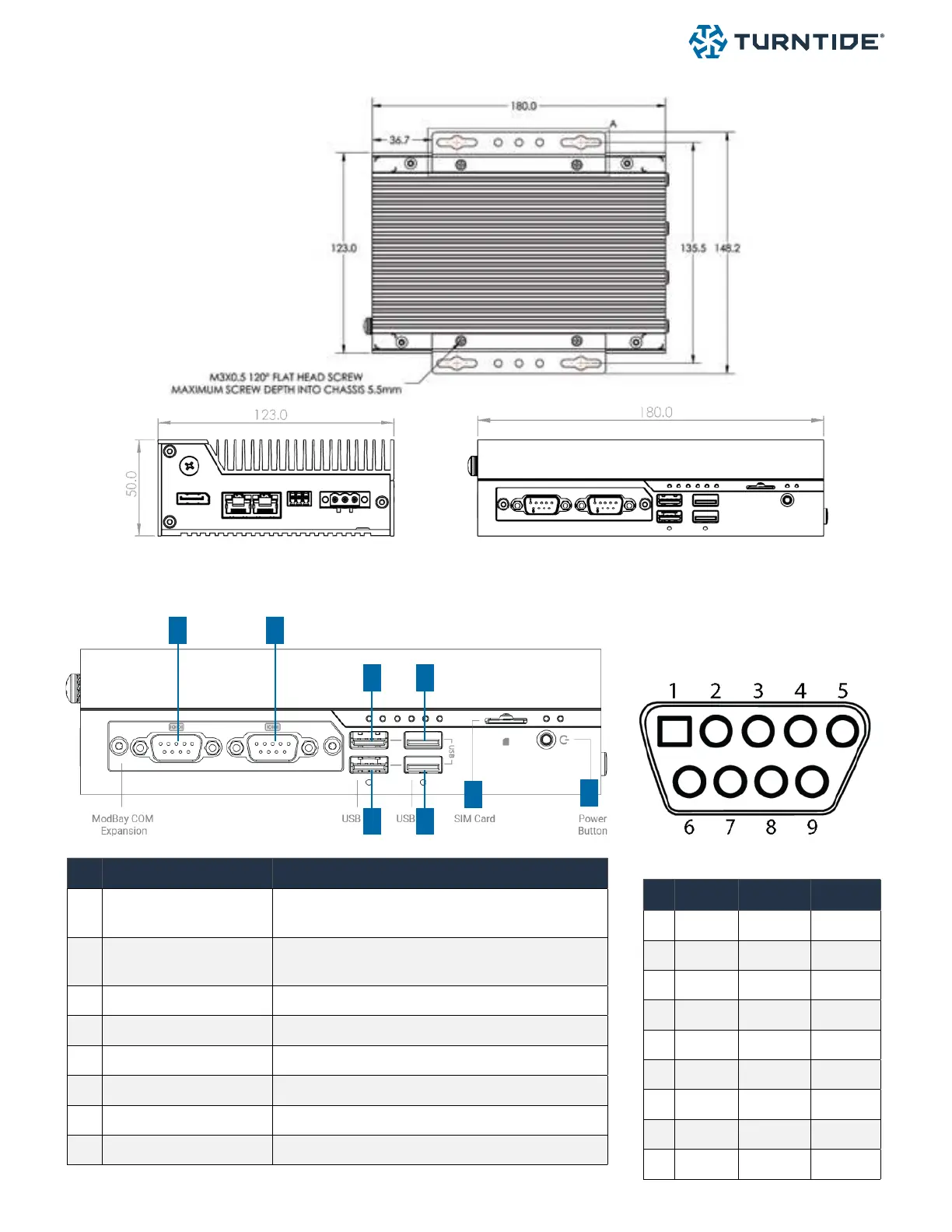

1.1.1. Dimensions
Dimensions in mm
1.1.2. Left View
7
2 1
35
8
# Label Description
1 COM 1 RS-232/422/485
Connects to an RS-485 network. Requires an
RS232/RS485 converter
2 COM 2 RS-232/422/485
Connects to an RS-485 network. Requires an
RS232/RS485 converter
3 USB 1
4 USB 2
5 USB 3
6 USB 4
7 MicroSIM For SIM Cards
8 Power Button Used to power on/off the hub
PIN RS232 RS422 RS485
1 DCD TX- TX-/RX-
2 RX TX+ TX+/RX+
3 TX RX+ NC
4 NC RX- NC
5 GND NC NC
6 NC NC NC
7 RTS NC NC
8 CTS NC NC
9 RI/PWR NC/PWR NC/PWR
Connecting Pins for
COM 1 and COM 2
D-SUB Conn. 9P 90D(M) DIP
