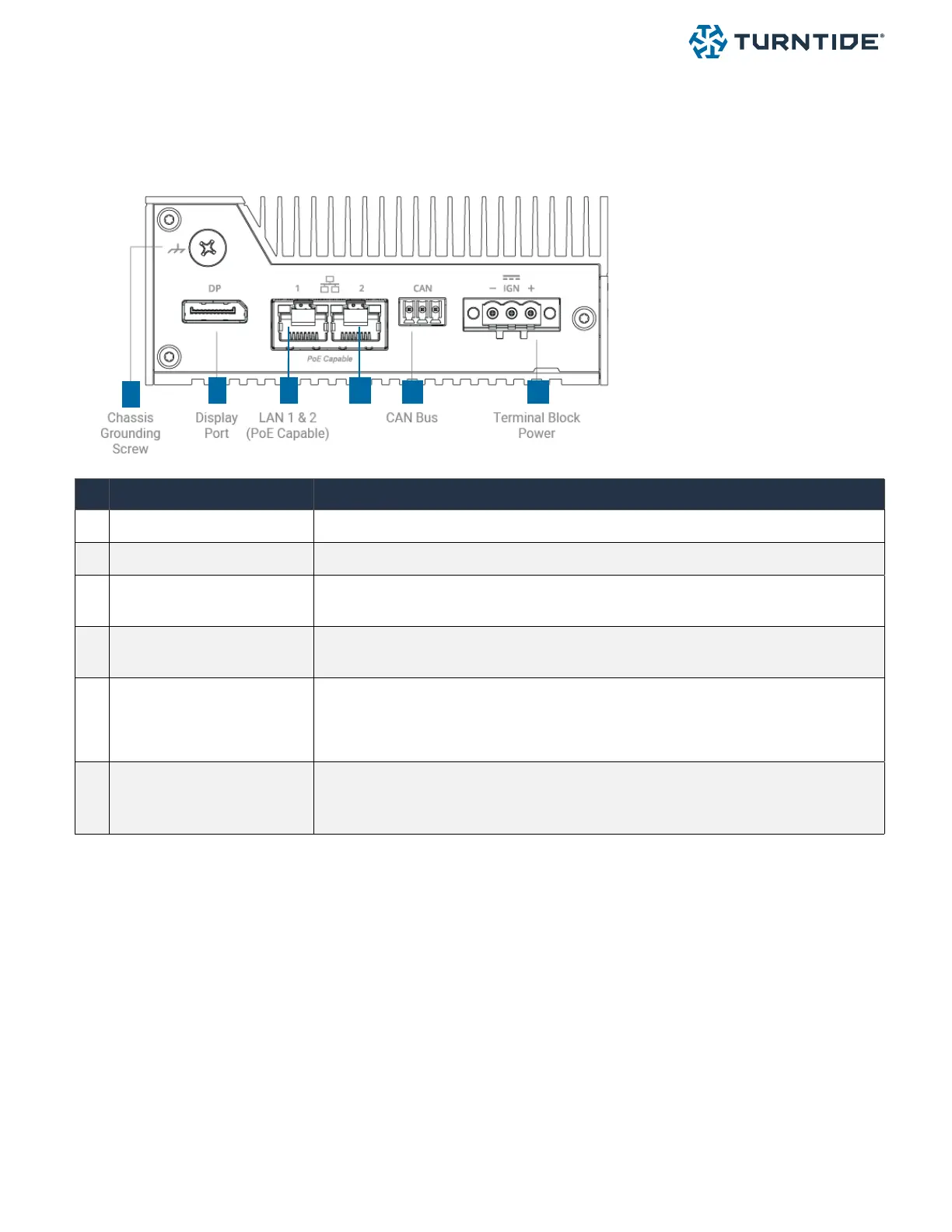

1.1.3. Right View
# Label Description
1 Chassis Grounding Screw Common system, grounding point
2 Display Port For troubleshooting purposes only
3 IP1 Connect an Ethernet (RJ45) cable to gain network access.
4 IP2 Connect an Ethernet (RJ45) cable to gain network access.
5 CAN Bus*
Serial communication bus standard that allows microcontrollers and devices to
communicate with each other.
*CAN Bus is not supported at this time.
6 Terminal Block Power Connect a 10-30 VDC power connector to provide power to your system
1
2
5 6
3 4
