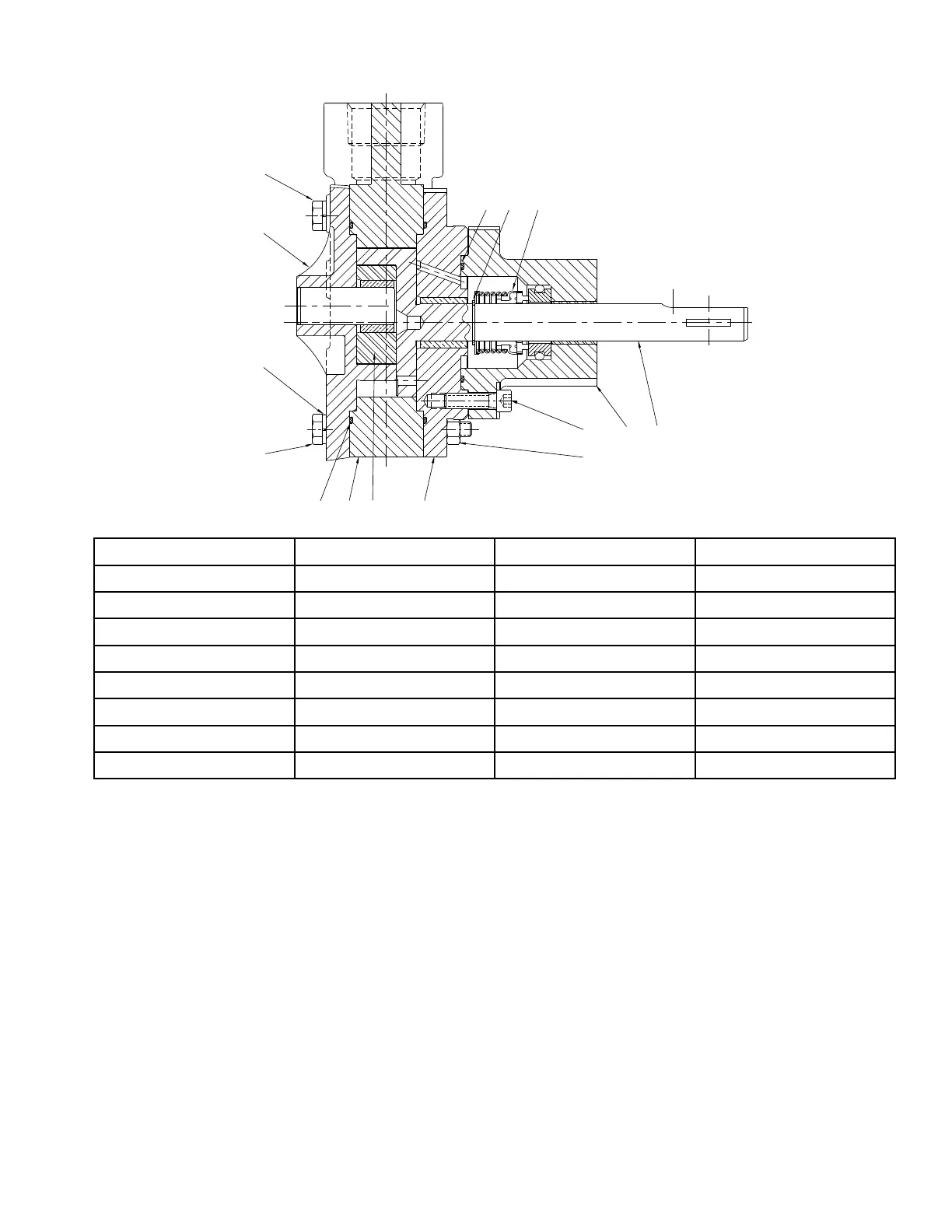

4312-4316 Parts List
13
1
14
11
7 2 4 3
15 5 6
12
8 10 9
Item Description Item Description
1 Cover 9 Mechanical Seal
2 Housing 10 Retaining Ring
3 Bracket 11 Cover Screws
4 Idler Gear 12 Nut
5 Seal Gland 13 Cover Screws
6 Rotor 14 Lockwasher
7 O-Ring 15 Gland Screws
8 O-Ring
Seal Replacement
Grip the pump rmly across the ports and secure the housing in a vise with the shaft end up
Remove any burrs or nicks on the shaft. Use a small, ne le if needed
Remove the seal gland cap screws
Slide the seal gland cap o the shaft
Remove the stationary seat of the seal from the seal gland
Slide the seal cartridge o the shaft
Polish the pump shaft with crocus cloth or very ne sandpaper and clean the seal chamber thoroughly with a clean cloth.
This will prevent damage to the new seal and ease installation
Place the new seal cartridge on the shaft and slide into place
Install the new stationary seat into the seal gland
Place the bearing cap on the shaft and slide into place
Align the mounting holes and reinstall the seal gland cap screws
