Page 12 of 18

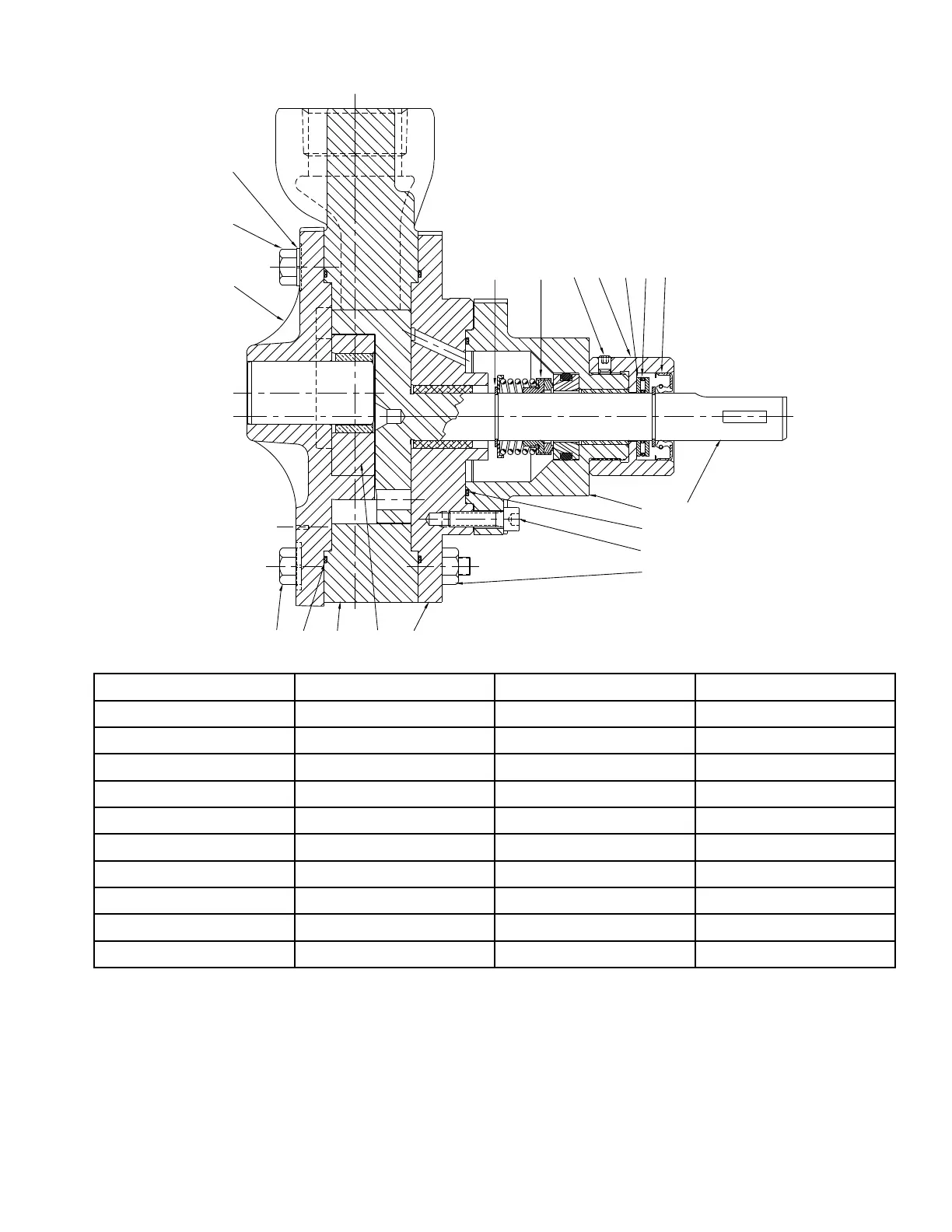

4332-4336 Parts List
19
18
1
16 8 2 4 3
5 7
9
20
17
11 10 15 6 12 13 14
Item Description Item Description
1 Cover 11 Retaining Ring
2 Housing 12 Thrust Washer
3 Bracket 13 Thrust Bearing
4 Idler Gear 14 Lip Seal
5 Seal Gland 15 Set Screw
6 Adjusting Sleeve 16 Cover Screws
7 Rotor 17 Nut
8 O-Ring 18 Cover Screws
9 O-Ring 19 Lockwasher
10 Mechanical Seal 20 Gland Screws
