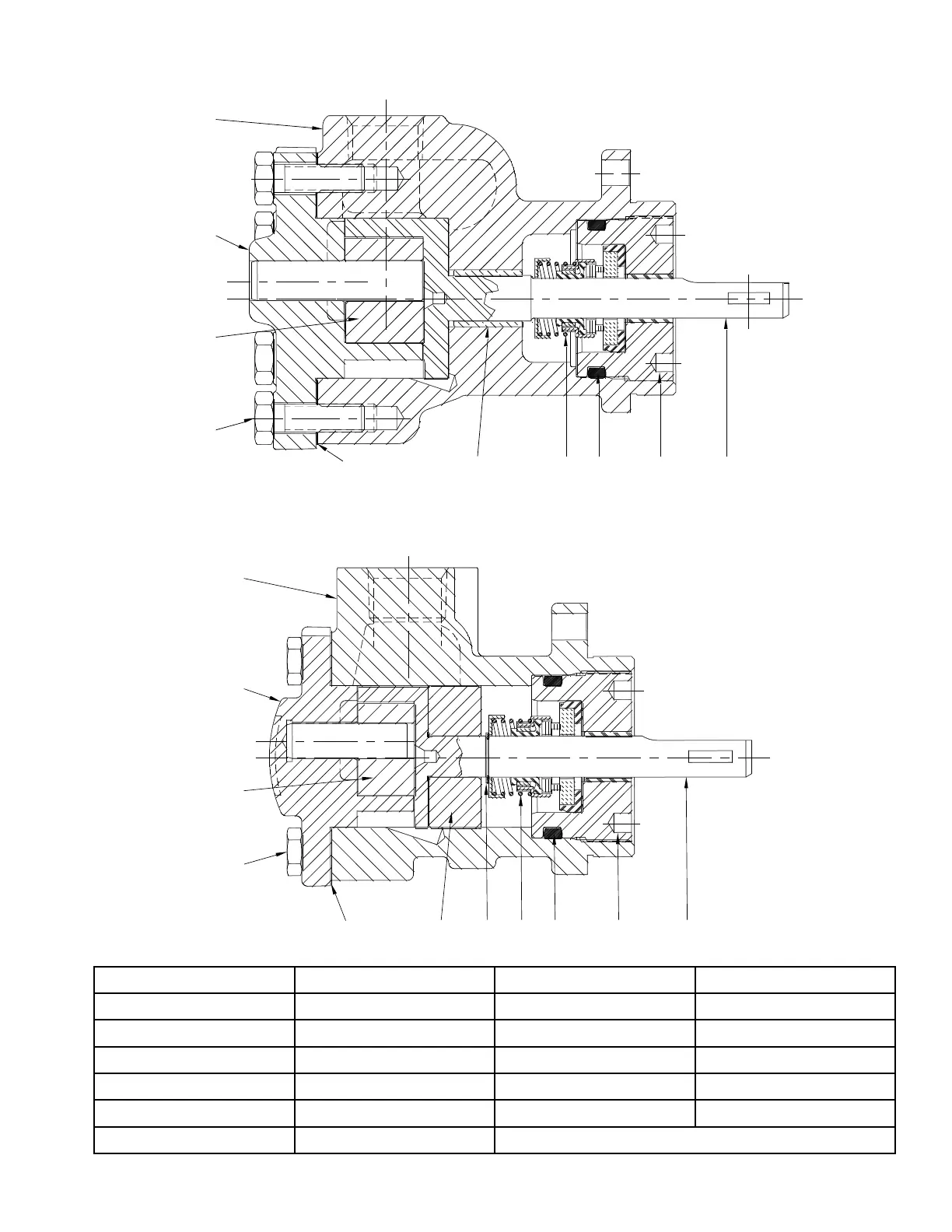

4101-4108 Parts List
1
2
3
4
5 6 8 9 10 11
4121-4128 Parts List
1
2
3
4
5 6 7 8 9 10 11
Item Description Item Description
1 Housing 7 Retaining Ring*
2 Cover Assembly 8 Mechanical Seal
3 Idler Gear 9 O’Ring
4 Cover Screws 10 Housing Plug
5 Cover Gasket 11 Rotor
6 Housing Bushing * Models 4101/4121, 4102/4122, 4103/4123 & 4104/4124 only.
