Tank Installation (cont’d)
Materials:
• 1-1/4” steel pipe cut to a length at least 3” above of the bottom of the tank when screwed into the tank adapter, with
the tank adapter screwed into the bung conection on top of the tank.
• Thread pipe joint sealant appropriate for the application.
1. Thread the 1-1/4” pipe into the tank adapter. Seal threads
liquid tight with appropriate sealant. (Figure 1)
2. Screw the tank adapter (with suction pipe) into the tank bung;
seal threads liquid tight with appropriate thread sealant (Figure 2).
Mount the pump on the tank adapter; making sure the seal and
screen are installed as shown. (Figure 2).

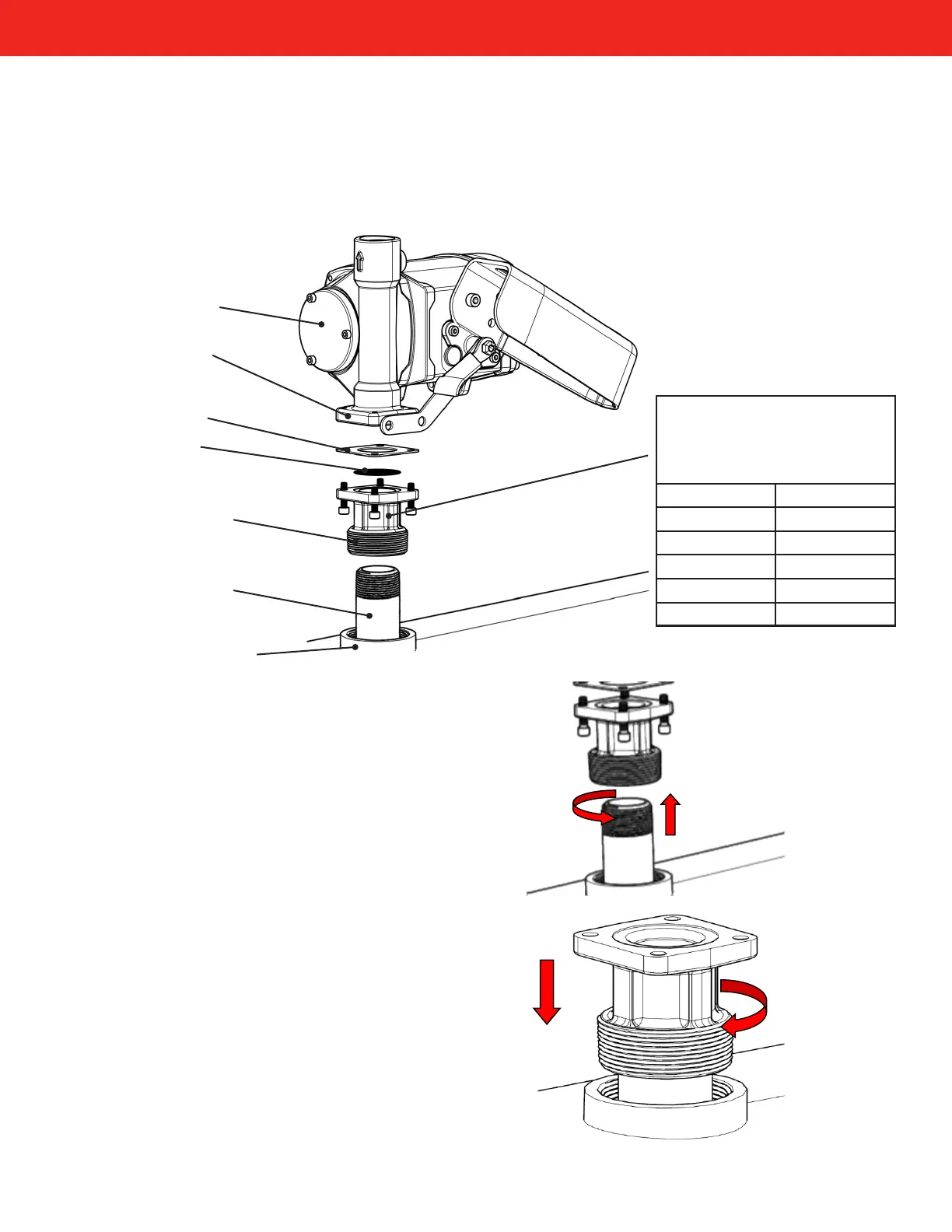

Figure 1
Figure 2
Pump
Gasket
Screen
Tank Adapter
Suction Tube
Tank Bung Connection
Inlet Flange
NOTE: Tank adapters come in
either NPT or BSPP threads,
depending on the model you
purchase:
NX3204 NPT
NX3204F NPT
NX3205E BSPT
NX3205FE BSPT
NX3210B NPT
NX3210FB NPT
To Next Page
