Tuthill T650 - Page 14

14

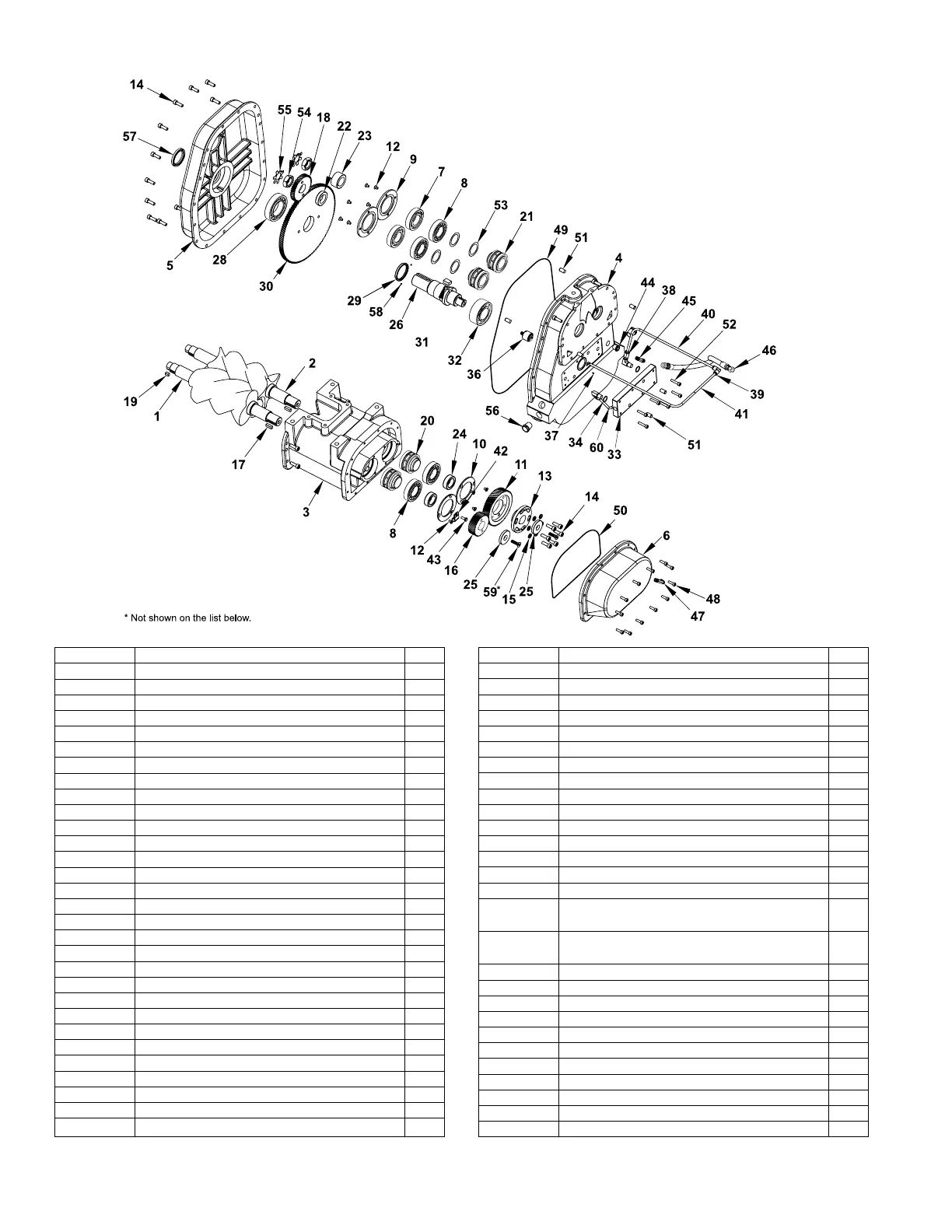

T650 AND T950H EXPLODED VIEW DRAWING AND PARTS LIST
ITEM NO. DESCRIPTION QTY.
1 ROTOR MALE 131MM 1
2 ROTOR FEMALE 121 MM 1
3 HOUSING MACH C.I. T650/T950H 1
4 ENDPLATE MACH C.I. 1
5 COVER MACH C.I. 1
6 COVER MACH ALUM 1
7 BEARING QJ BALL 2
8 BEARING, ROLL CYLINDER 4
9 RETAINER BEARING DISCHARGE END 2
10 RETAINER BEARING INLET END 2
11 GEAR TIMING FEMALE 1
12 FHCS M6 × 10 SOCKET DR 11
13 HUB TIMING GEAR 1
14 SHCS M8 × 25 32
15 LOCKWASHER 6
16 GEAR TIMING MALE 1
17 KEY, 8MM × 7 × 22 2
18 GEAR DRIVE FEMALE 1
19 KEY, 8MM × 7 × 12 1
20 SEAL ASSEMBLY - RIGHT HAND 2
21 SEAL ASSEMBLY - LEFT HAND 2
22 SPACER GEAR 30MM 1
23 SPACER GEAR 30MM EXT 1
24 SPACER INLET GEAR 2
25 WASHER ROTOR SHAFT 2
26 SHAFT DRIVE T650/T950H 1
27 SPRING, WAVE STL SSB 1
28 BEARING, ROLL CYLINDER 1
29 SPACER GEAR 1
30 GEAR DRIVE INPUT 1
ITEM NO. DESCRIPTION QTY.
31 KEY 14MM × 9 × 22 1
32 BEARING, BALL 2 ROW 1
33 OIL PUMP PLATE 1
34 O-RING VITON 2
35 O-RING VITON 1
36 PUMP OIL SHAFT MTD 1
37 PIN OIL PUMP DRIVE 1
38 ELL, TUBE 1/4 × 1/4 MPT 2
39 ELL, TUBE 1/4T × 1/4T 1
40 TUBING, ROUND, 1018 STEEL 1
41 TUBE, INJECTION 1
42 CLAMP, LOOP 1
43 HHCS M6 × 16 1
44 BUSHING, REDUCER, 3/8 × 1/8 1
45 ELBOW 1/4 NPT × 1/4 37DEG FLARE 1
46
HOSE 1/4 × 15 FEMALE SWIVELS BOTH
ENDS
1
47
ELBOW 1/8 NPT × 1/4 37DEG FLARE
EXTENDED
1
48 SHCS M6 × 20 12
49 O-RING, VITON 1
50 O-RING, VITON 1
51 PIN, DOWEL 10 × 20 MM 6
52 SHCS M6 × 30 6
53 SHIM BEARING 1.375 ID × .001 THK 4
54 HEX NUT M24 2
55 WASHER, GEAR LOCK 2
56 OIL SIGHT GLASS, 1/2 NPT 2
57 SEAL TRIPLE LIP VITON 1.875 DIA 1
58 SCREW SET M3 × 3 CUP POINT 2
