Tuthill T855 - Oil Fill Locations and Capacities

Operator’s Manual 2023 Rev G p/n 2023
23
04
Installation

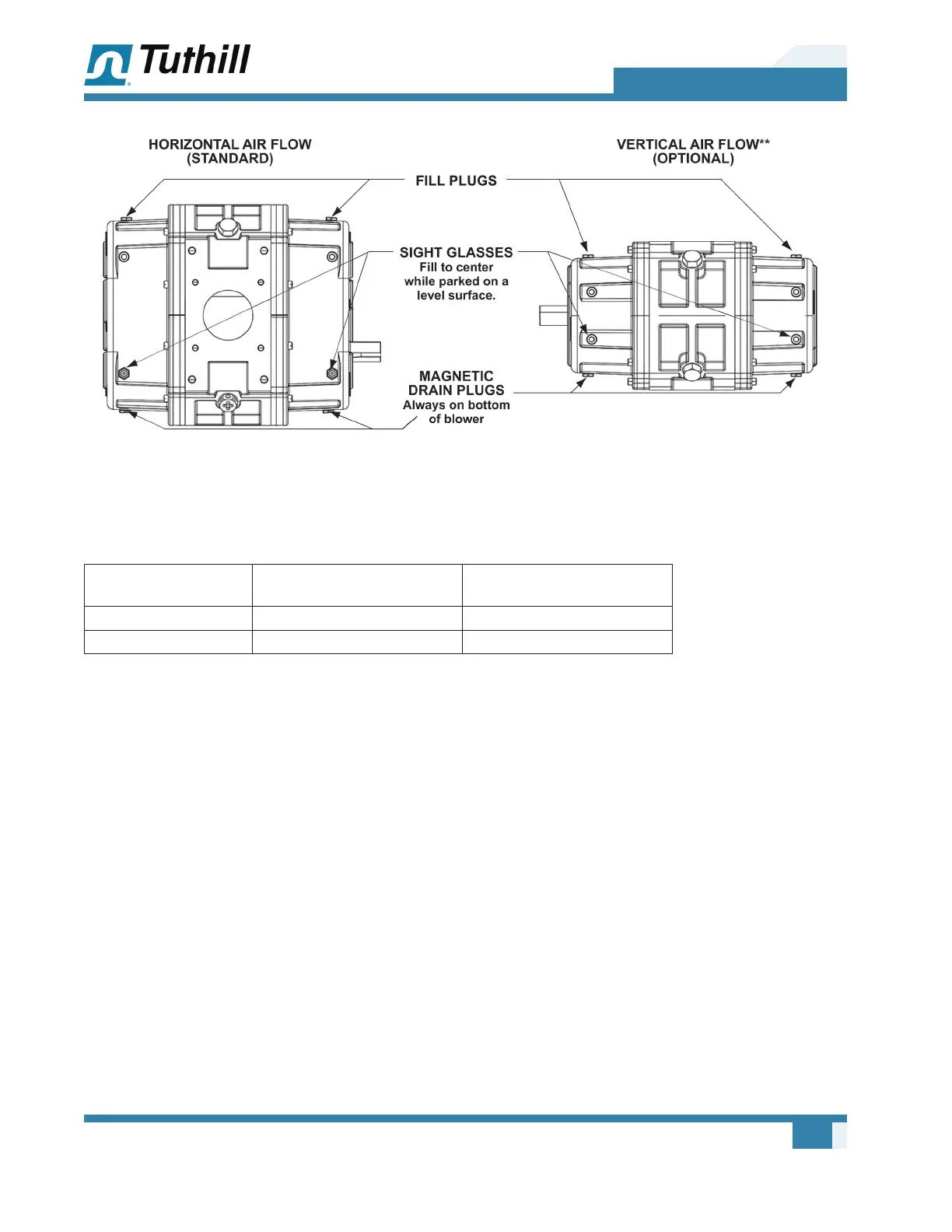

Figure 4-14 – Oil Fill Locations
OTE: N Tuthill MD oil is available from your
authorized Tuthill Transport Channel
Partner.
HORIZONTAL AIR FLOW
(STANDARD)
VERTICAL AIR FLOW
(OPTIONAL)
Drive end 1.06 qt (1.0 L) (34 oz) 1.68 qt (1.59 L) (54 oz)
Non‑drive (gear) end 1.0 qt (0.95 L) (32 oz) 1.75 qt (1.66 L) (56 oz)
Table 4-2 – Lubrication Capacities
OTE: N Oil capacities are based on lling from
dry condition. Less oil may be needed
depending on emptiness of oil reservoirs
after draining.
