2.9 Specifications

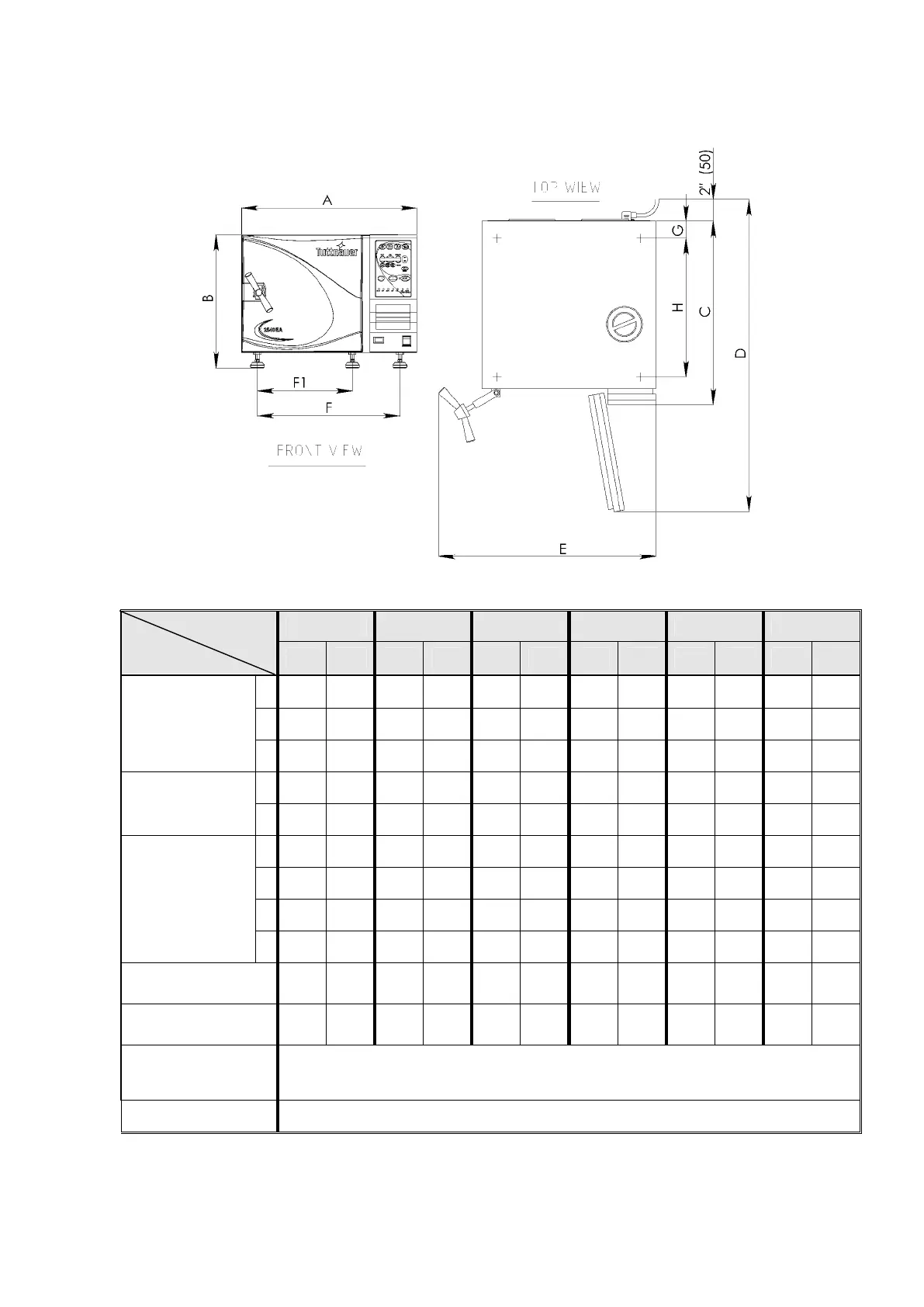

Overall Dimensions
1730 2340 2540 3140 3850 3870
Model
Dimensions
mm in mm in mm in mm in mm in mm in
A 440 17.4 510 20.0 510 20.0 590 23.2 660 26.0 660 26.0
B 305 12.0 365 14.4 365 14.4 450 17.7 525 20.7 525 20.7
Overall
Dimensions
C 455 17.9 540 21.5 545 21.5 566 21.9 695 27.5 875 34.5
D 750 29.5 910 35.8 910 35.8 990 39.0 1155 45.5 1335 53.0
Maximum
Dimensions
(door open)
E 560 22.0 630 24.8 655 25.8 755 29.7 815 32.0 815 32.0
F 234 9.2 299 11.8 299 11.8 371 14.6 451 17.8 451 17.8
F1 339 13.4 422 16.6 422 16.6 488 19.2 562 22.1 562 22.1
G 50 2.0 50 2.0 50 2.0 50 2.0 50 2.0 50 2.0
Distance
Between
Supporting Legs
H 315 12.4 400 15.8 400 15.8 400 15.2 555 2.0 725 2.0
Reservoir Volume
3
lit.
0.8
gal.
3
lit.
0.8
gal.
3
lit.
0.8
gal.
3.0
lit.
0.8
gal.
6
lit.
1.6
gal.
6
lit.
1.6
gal.
Minimum Water
Vol. in Reservoir
0.8
lit.
0.21
gal.
0.8
lit.
0.21
gal.
0.8
lit.
0.21
gal.
0.8
lit.
0.21
gal.
2.0
lit.
0.53
gal.
2.0
lit.
0.53
gal.
Max. Allowable
Working Pressure
(MAWP)
2.76 bar (40 psi)
Load No. Counter Counting from 0 to 250 and nullifies.
