Tuttnauer Valueklave 1730 - Autoclave Component Description

11

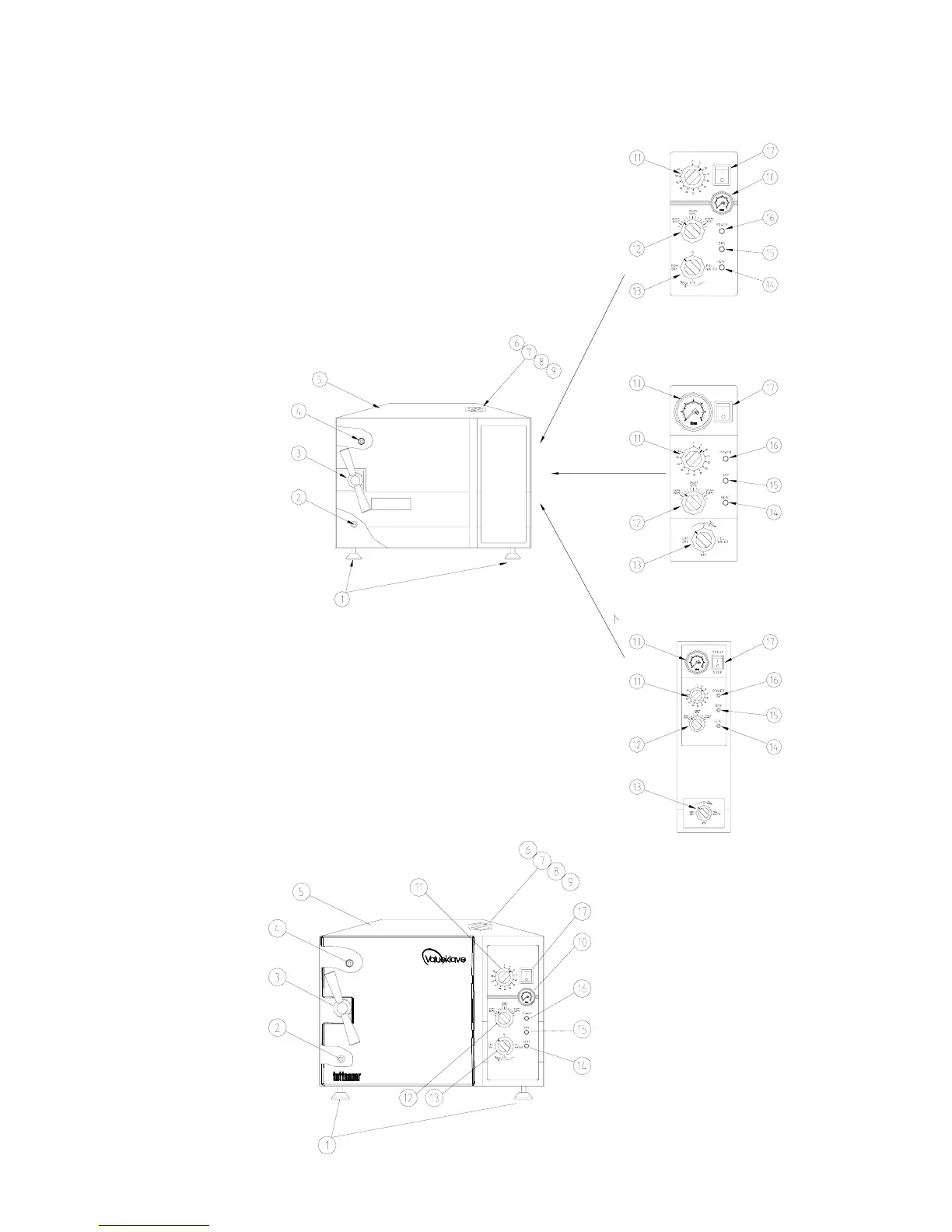

FRONT VIEW
1. Front legs 9. Air trap jet
2. Reservoir water drain 10. Pressure gauge
valve. 11. Timer
3. Door Closing Device 12. Thermostat (B10) knob
4. Door Micro-switch 13. Multipurpose valve
5. Autoclave cover 14. Heat indicator light
6. Water reservoir cover 15. Dry indicator light
7. Water reservoir 16. Power indicator light
8. Safety valve 17. Main power switch
Model 1730 MK Valuelave
Models 3140/3850/3870 M, MK
Models 2340/2540 M, MK
Models 1730 M, MK
