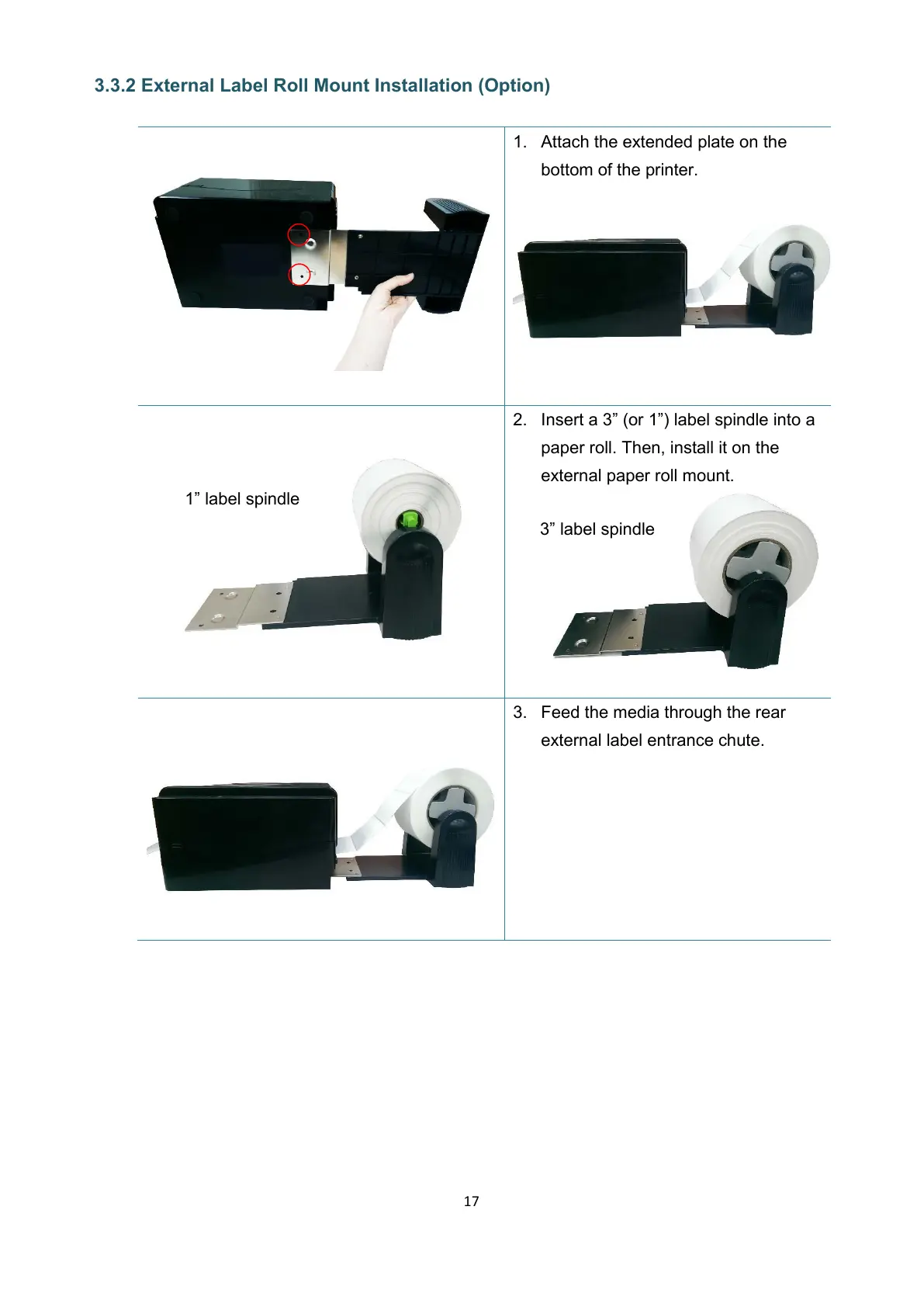

3.3.2 External Label Roll Mount Installation (Option)
1. Attach the extended plate on the
bottom of the printer.
2. Insert a 3” (or 1”) label spindle into a
paper roll. Then, install it on the
external paper roll mount.
3. Feed the media through the rear
external label entrance chute.
1” label spindle
3” label spindle
