To replace bulb
Bellows should be kept in good condition and replaced
immediately if torn or cracked by approaching our Dealer or
Authorized service centers.
Torn or cracked bellows allow dust and water into the
propeller shaft flanges which will cause damage to flange,
slider block and pins. Inspect the bellows regularly.
Head lamp bulb removal
- Remove the rubber boot ( A ) from reflector housing
which is located under the dash board
- Un-lock the clip (B) to take out the bulb holder assembly.
ELECTRICAL

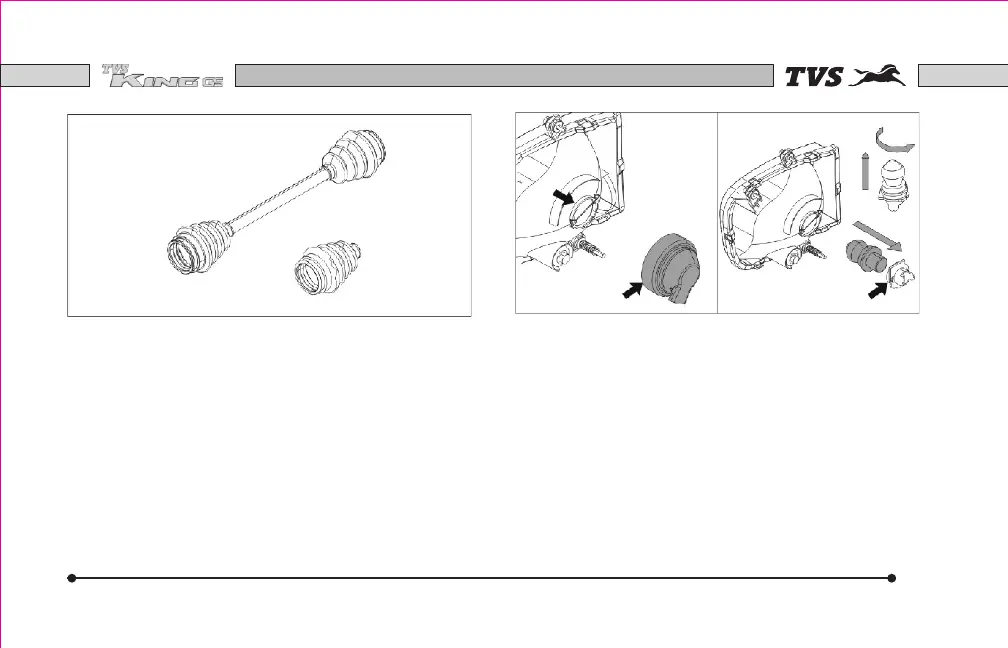

Rubber bellows for propeller shaft
Rubber bellows
Head lamp bulb removal
- Push the bulb in and turn it in anti-clockwise direction to
remove the bulb from holder ( C ).
Tail/brake/ rear turn signal lamp bulb
- Loosen and remove screws holding the lens.
- Insert holder into reflector housing and lock the holder
clip. Reinsert rubber boot.
- Push the new bulb in and turn it in clockwise direction to
fit new bulb.
- Remove lens. Push in and twist in anti clockwise direction to
remove bulb.
- Replace bulb and assemble back in reverse order of
disassembly.
A
B
C
SELF MAINTENANCE PROCEDURE
To Next Page
