Rear brake

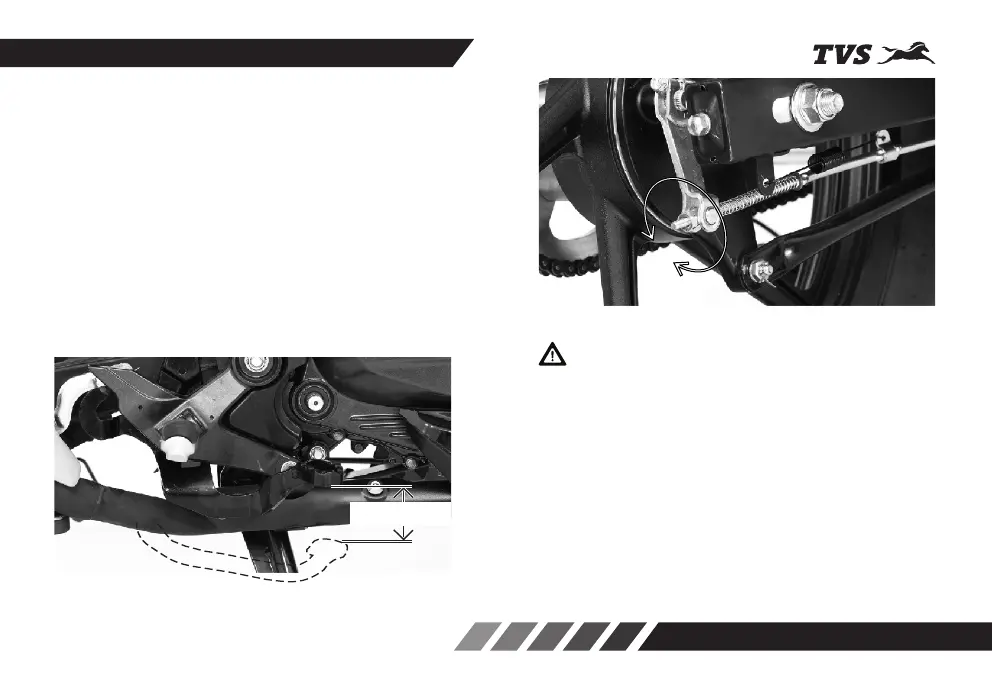

1. Measure the free play of the rear brake pedal at
the pedal end as shown in the figure.
2. The free play of the brake pedal before the
engagement of brake should be between 15 ~ 20
mm.
3. If the measured free play is more than the limit,
adjust the nut provided at the rear wheel end to
obtain the correct play.
4. Turn the adjuster nut clockwise to reduce the free
play or turn it in anti-clockwise direction to
increase the free play.
Please remember that the rear brake lever free play
adjustment to be done only after adjusting the front
brake lever play in case of front drum brake type
vehicle.
Warning
MAINTENANCE
48
