Brake shoe wear indicator

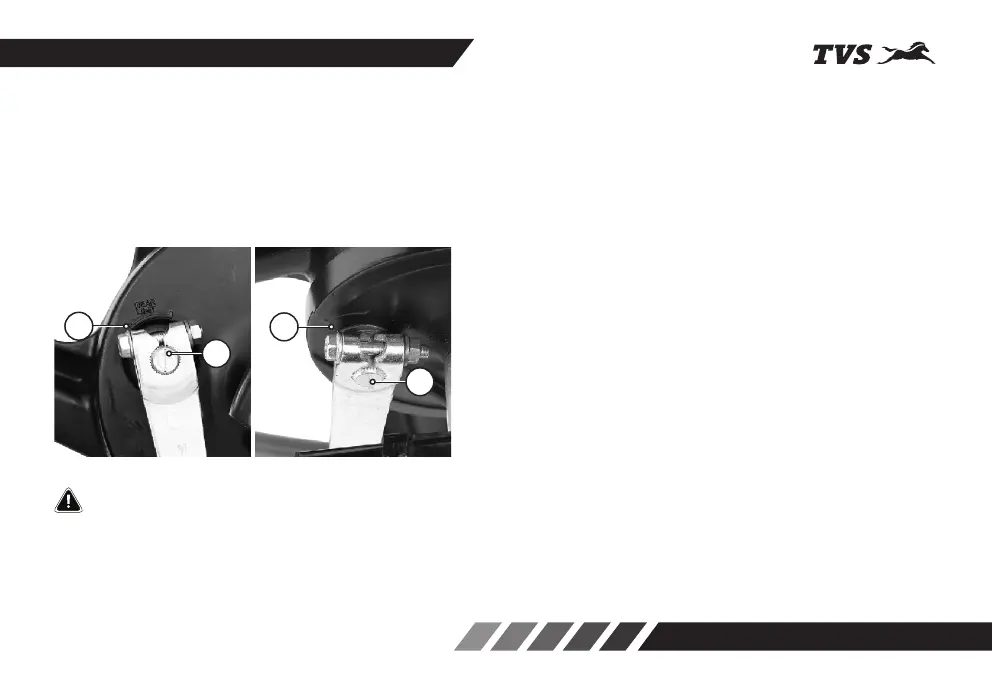

When the brake is applied, wear limit index mark (A)
on both front and rear cam brake should be within the
range of wear limit indicator (B) on panel assembly.
Incase the index mark (A) is going beyond the wear
limit (B), replace the brake shoes as a set, with the
help of the nearest TVS Motor Company Authorised
Distributor or Dealer / Authorised Service Center.
However, if cam lever adjustment goes beyond
certain range, then index the cam lever to next slot
(serration tooth) with the help of the nearest TVS
Motor Company Authorised Distributor or Dealer /
Authorised Service Center, to utilize remaining shoe
life until wear limit index mark (A) exceeds beyond the
range of wear limit indicator (B).
Replace the brake shoes as a set, if wear limit index
mark (A) exceeds beyond the range of wear limit
indicator (B) even after indexing the lever.
Caution
A
A
B
B
MAINTENANCE
49
