136

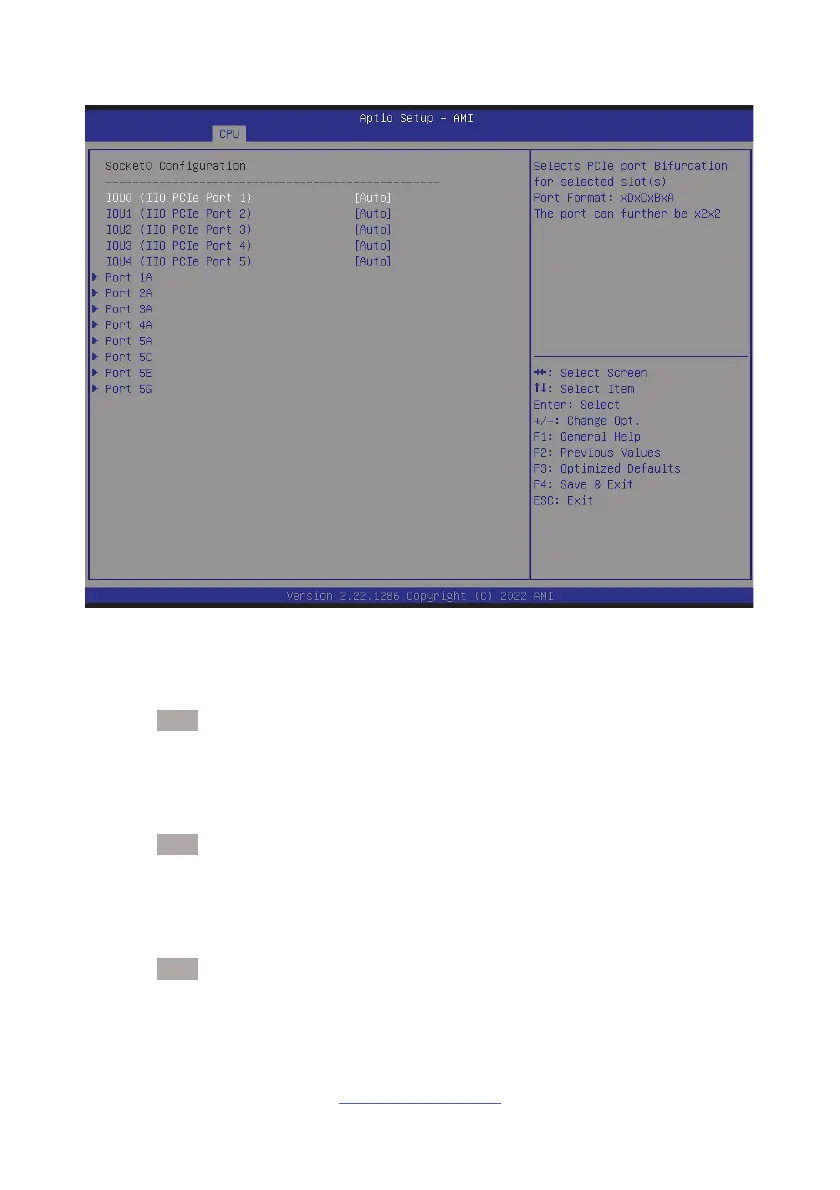

3.4.5.1 Socket0 Configuration
IOU0 (IIO PCIe Port 1)
Selects PCIe port Bifurcation for selected slot(s)
Port Format:xDxCxBxA.
The port can further be x2x2
Auto / x4x4x4x4 / x4x4_x8 / x_x8x4x4 / x_x8x_x8 / x_x_x_x16
IOU1 (IIO PCIe Port 2)
Selects PCIe port Bifurcation for selected slot(s)
Port Format: xDxCxBxA.
The port can further be x2x2
Auto / x4x4x4x4 / x4x4_x8 / x_x8x4x4 / x_x8x_x8 / x_x_x_x16
IOU2 (IIO PCIe Port 3)
Selects PCIe port Bifurcation for selected slot(s)
Port Format: xDxCxBxA.
The port can further be x2x2
Auto / x4x4x4x4 / x4x4_x8 / x_x8x4x4 / x_x8x_x8 / x_x_x_x16
