IOU3 (IIO PCIe Port 4)
Selects PCIe port Bifurcation for selected slot(s)
Port Format: xDxCxBxA.
The port can further be x2x2
Auto / x4x4x4x4 / x4x4_x8 / x_x8x4x4 / x_x8x_x8 / x_x_x_x16
IOU4 (IIO PCIe Port 5)
Selects PCIe port Bifurcation for selected slot(s).
Auto / x4x4x4x4 / x4x4_x8 / x_x8x4x4 / x_x8x_x8 / x_x_x_x16
Port 1A/2A/3A/4A/5A/5C/5E/5G
Settings related to PCI Express Ports
(0/1A/1B/1C/1D/2A/2B/2C/2D/3A/3B/3C/3D/4A/4B/4C/4D/5A/5B/5C/5D).

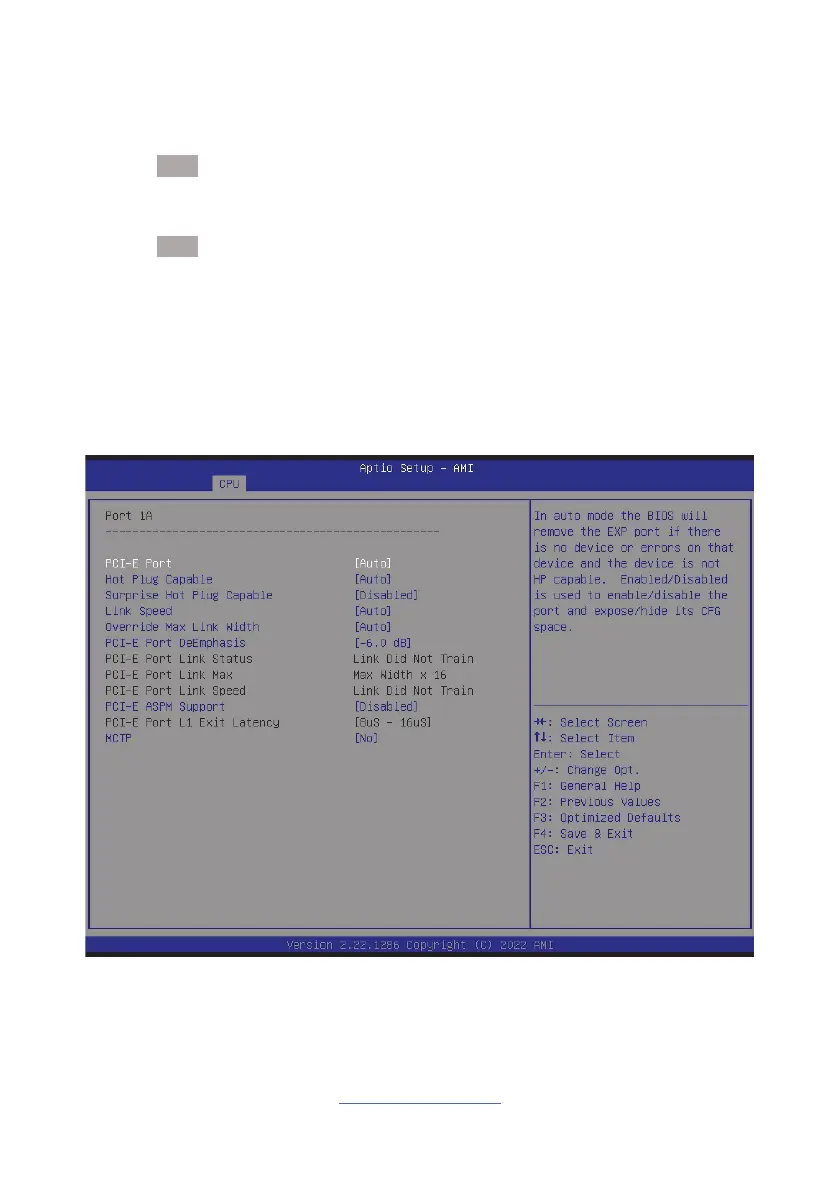

3.4.5.1.1 Port 1A/2A/3A/4A/5A/5C/5E/5G
