25

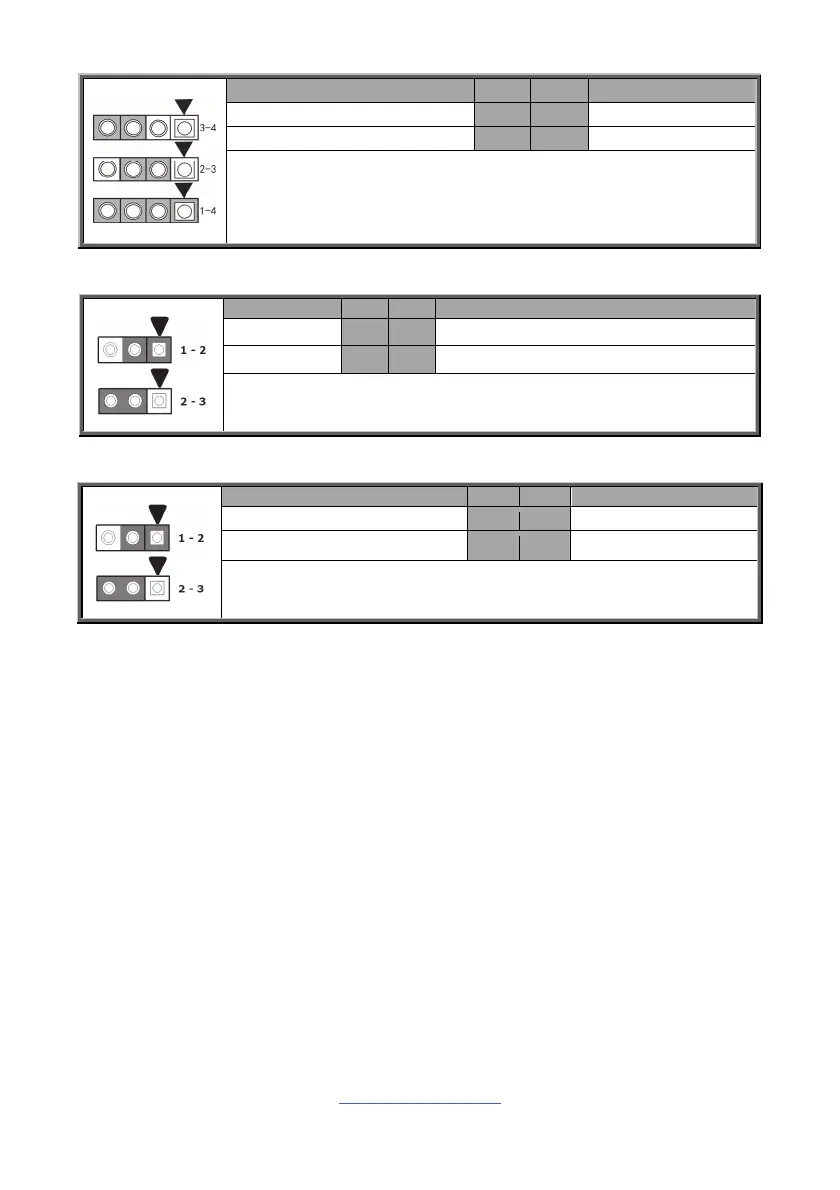

Signal Pin Pin Signal
VCC5_BZ 1 2 NC
BUZ_1 3 4 BUZ_2
Pin3-4 closed: Normal Mode (Default)
Pin2-3 closed: Disable PC Beep
Pin1-4 closed: Use the external speaker
J19: BMC Remote Debug Jumper
Signal Pin Pin Signal
P3V3_AUX
1 2 FM_REMOTE_DEBUG_EN_DET_R2
NC
3
1-2: Disable (Default)
2-3: Enable
J136: System Reset Mode Jumper
Signal Pin Pin Signal
FP_RST_BTN_N 1 2 FP_RST_BTN_JP_N
FP_BMC_RST_BTN_N 3
1-2: System Reset (Default)
2-3: BMC Reset
