24

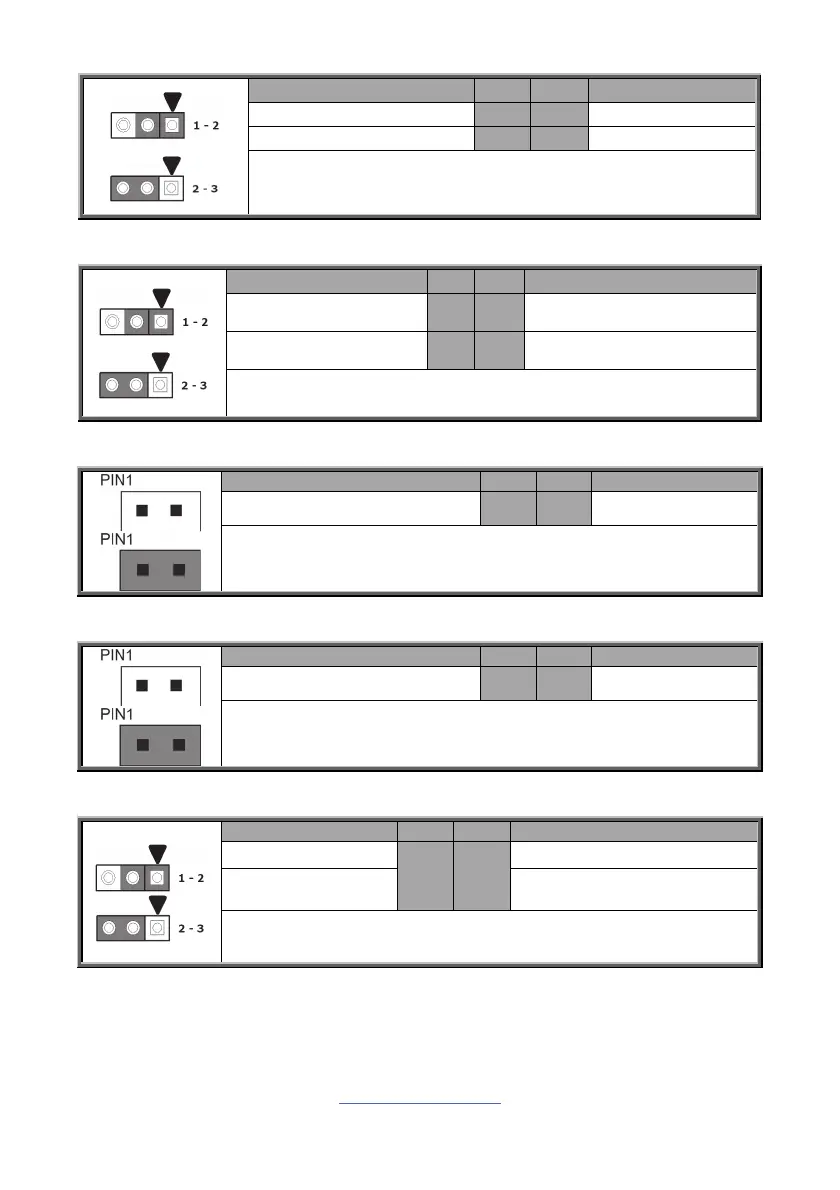

Signal Pin Pin Signal
PU_MFG_MODE 1 2 FM_MFG_MODE
PD_MFG_MODE 3
Pin1-2 closed: MFG DISABLE
Pin2-3 closed: MFG ENABLE (Default)
J5_PCH: BIOS Advance Function Jumper
Signal Pin Pin Signal
PD_BIOS_ADV_
FUNCT
1 2
FM_BIOS_ADV_
FUNCTIONS
PU_BIOS_ADV_
FUNCT
3
Pin1-2 closed: NORMAL OPERATION(Default)
Pin2-3 closed: MFG BIOS CORE EXECUTION TREE
J2: BIOS S5 Flash Enable Jumper
Signal Pin Pin Signal
P5V_AUX
1 2 SPI_SW_EN_N
1-2: Place J2_1-2 to isolate SPI
(Support BIOS SPI S5 Flash Mode)
INTR: Chassis Intrusion Header
Signal Pin Pin Signal
FP_CHASSIS_INTRUSION 1 2 GND
1-2: Chassis Cover Is Closed (Default)
Empty Chassis Cover Is Closed Removed
J7: CPLD setup Jumper
Signal Pin Pin Signal
NC
1 2 FM_FORCE_PWRON_LVC3R
PU_FORCE_PWRO
N_LVC3
3
1-2: BMC Remote debug
2-3: Disable Remote Debug (Default)
J14: System Buzzer Jumper
