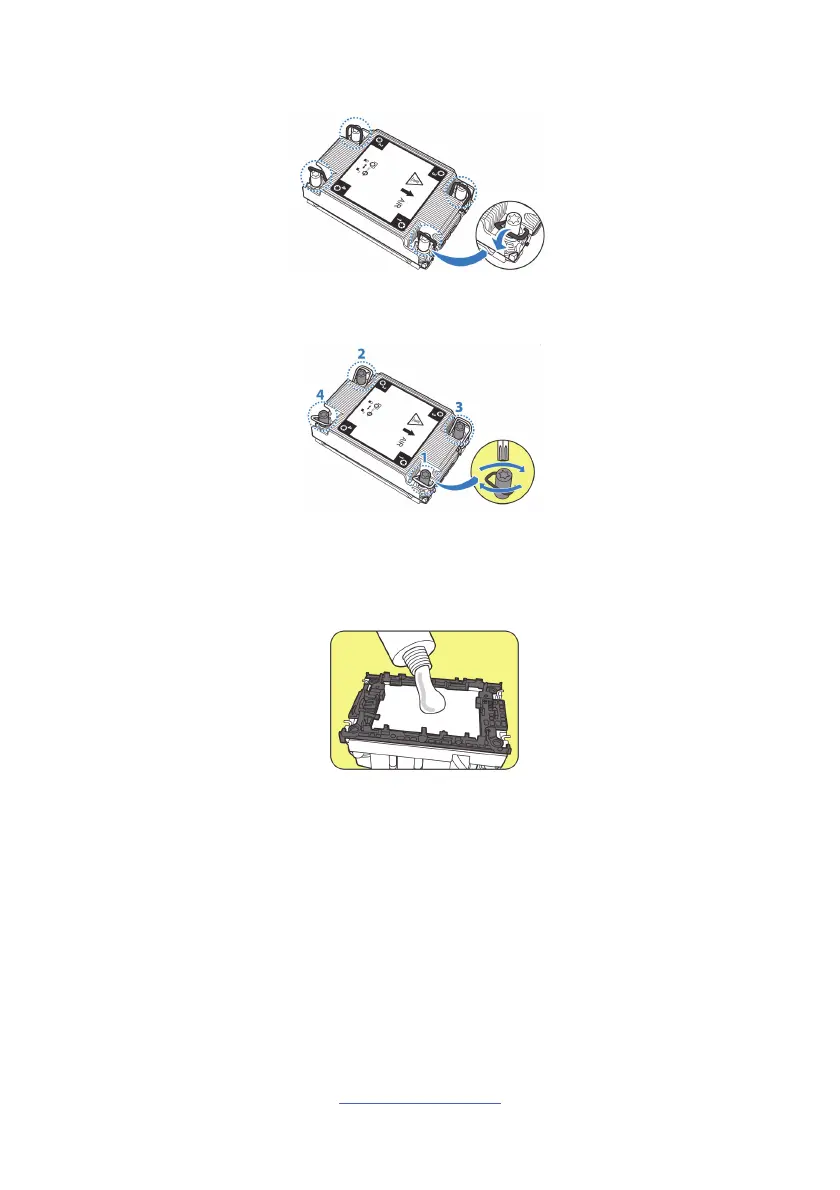

5. Press down on the retention clips to fix the heatsink assembly to the CPU
socket.
6. To secure the heatsink assembly, use a T30 Security Torx to tighten the screws
in a sequential order (1234). NOTE: When disassembling the heatsink,
loosen the screws in reverse order (4321).
NOTE: A new heatsink comes with pre-applied thermal grease.
Once the heatsink has been removed from the processor, you need to clean the
processor and heatsink using an alcohol solvent. Then apply new thermal grease
before reinstalling the heatsink.
