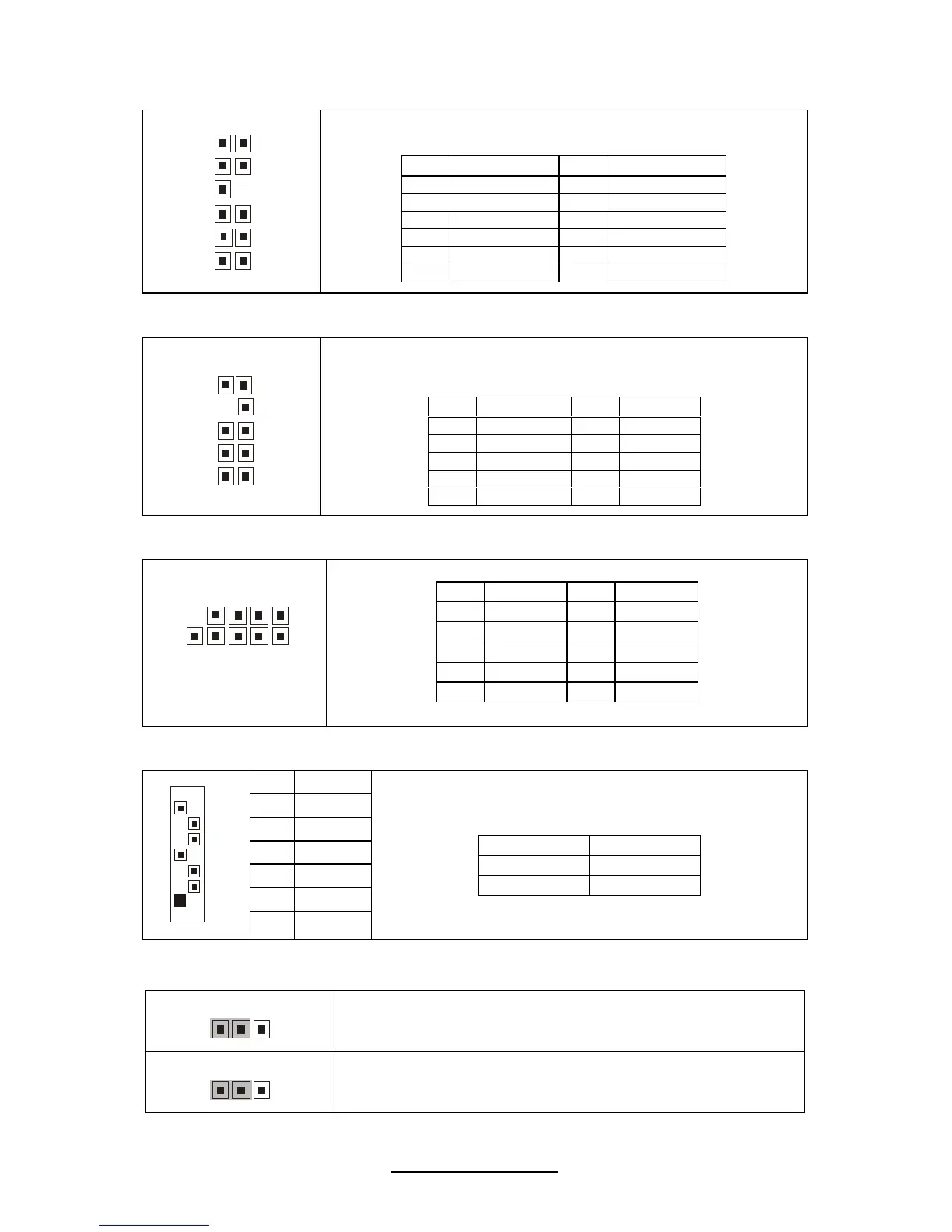

FPAUD1 (J6): Specific Definition Audio Header
1112
2
1
TYAN does not provide cables for this header.
Pin Signal Pin Signal
1 MIC_L_IN 2 MIC_R_IN
3 GND 4 MIC_JD
5 LINE_IN_L 6 LINE_IN_R
7 KEY 8 LINE_IN_JD
9 LINE_OUT_L 10 LINE_OUT_R
11 NC 12 LINE_OUT_JD
FPAUD2 (J4): Intel HD Audio Header
10
2
9
1
TYAN does not provide cables for this header.
Pin Signal Pin Signal
1 MIC_L_IN 2 GND
3 MIC_R_IN 4 NC
5 LINE_R_IN 6 MIC_JD
7 GND 8 KEY
9 LINE_L_IN 10 LINE_JD
J27/J28: USB Front Panel Header (Blue)
10 2
9
1
Pin Signal Pin Signal
1 +5V 2 +5V
3 USB D- 4 USB D-
5 USB D+ 6 USB D+
7 GND 8 GND
9 KEY 10 GND
SATA0/1/2/3/4/5: Serial ATA Connector
7 GND
6 RXP
5 RXN
4 GND
3 TXN
2 TXP
7
1
1 GND
Connects to the Serial ATA ready drives via the
Serial ATA cable.
SATA0: J26 SATA1: J25
SATA2: J24 SATA3: J22
SATA4: J21 SATA5: J20
JP4: Onboard 1394 Jumper
3
1
Pin 1-2 Closed: Enable 1394 (Default)
3
1
Pin 2-3 Closed: Disable 1394
