2.12 - Connecting External Devices

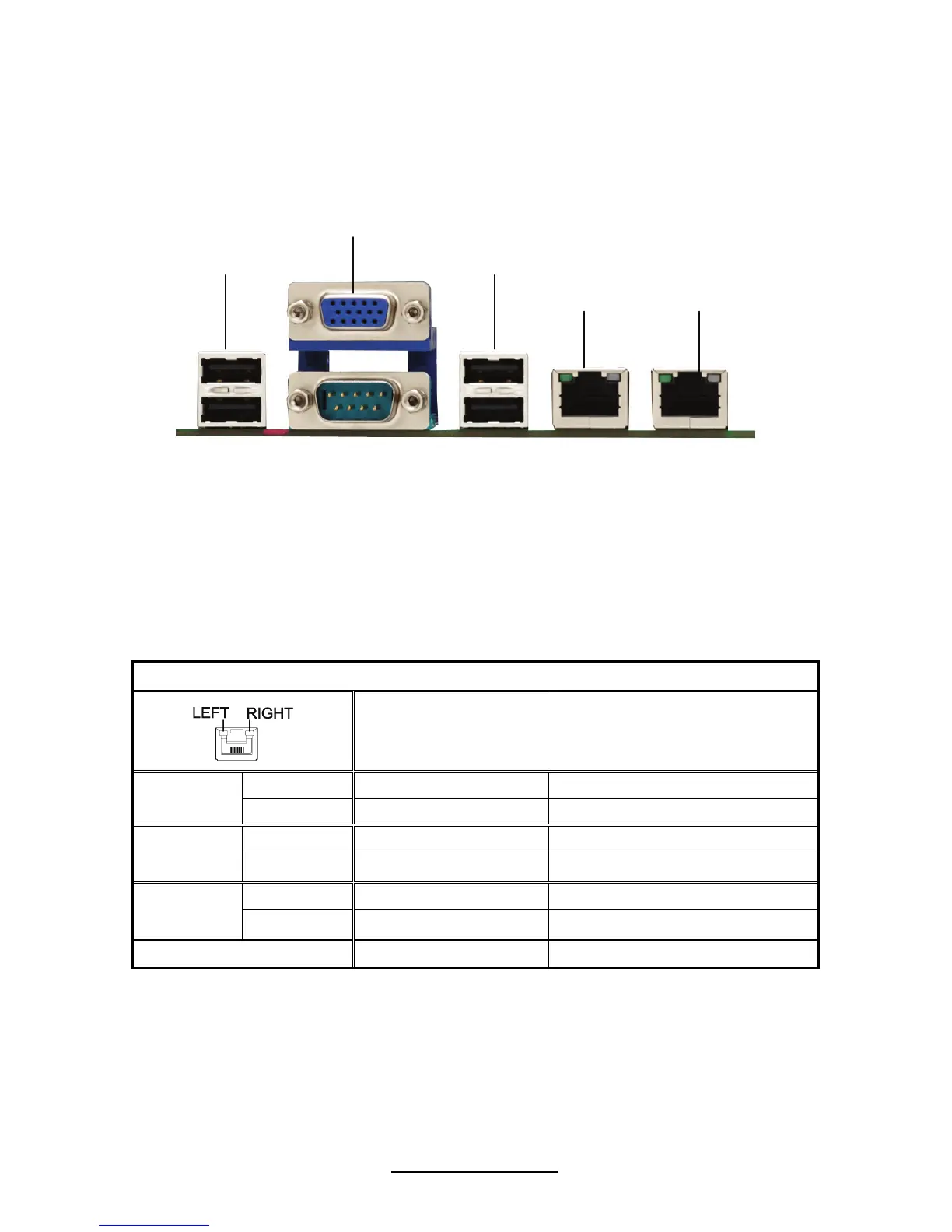

The following diagram will detail the rear port stack for this S7010 motherboard:
NOTE: Peripheral devices can be plugged straight into any of these ports but
software may be required to complete the installation.
Onboard LAN LED Color Definition
The three onboard Ethernet ports have green and yellow LEDs to indicate LAN
status. The chart below illustrates the different LED states.
10/100/1000 Mbps LAN Link/Activity LED Scheme
Left LED Right LED
Link Slow Blinking Green Off
10 Mbps
Active Blinking Green Off
Link Slow Blinking Green Green
100 Mbps
Active Blinking Green Green
Link Slow Blinking Green Orange
1000 Mbps
Active Blinking Green Orange
No Link Off Off
USB x 2
USB x2
Top: VGA Port
Bottom: Serial Port
LAN2
(share with IPMI)
LAN1
