TYAN S7010 - Page 17

17
http://www.tyan.com

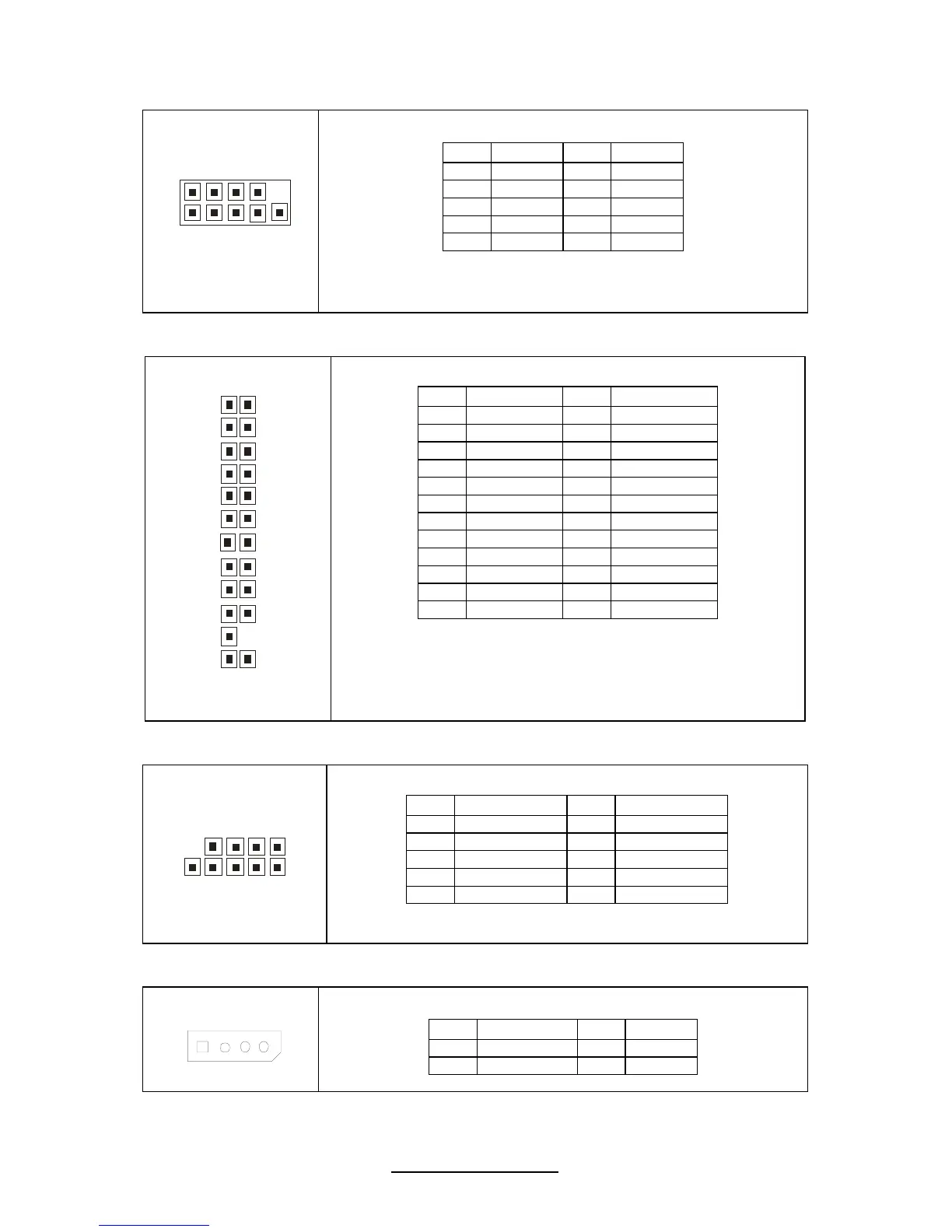

COM2 (J8): COM2 Connector
1
2
1
0
9
Pin Signal Pin Signal
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 KEY
J44: Standard Front Panel Connector
2
4
2
1
23
NOTE1: +3.3V power rail is IDLED, WLED (Warning LED),
LANLED
NOTE2: +5V power rail is PWRLED, HDLED
Pin Signal Pin Signal
1 PWRLED+ 2 +3VSB
3 KEY 4 IDLED+
5 PWRLED- 6 IDLED-
7 HDLED+ 8 WLED-
9 HDLED- 10 PSU_WLED-
11 PWRSW+ 12 LAN1LED+
13 GND 14 LAN1LED-
15 RSTSW 16 SMBDAT
17 GND 18 SMBCLK
19 IDLED_SW 20 INTRD#
21 GND 22 LAN2LED+
23 NMI_SW- 24 LAN2LED-
J17/J19: 1394 Front Panel Header (Black)
10
9
2
1
Pin Signal Pin Signal
1 XTPA 0/1P 2 XTPA 0/1M
3 GND 4 GND
5 XTPB0P 6 XTPB0M
7 1394PWR 1/2 8 1394PWR 1/2
9 KEY 10 GND
J41: IPMB Connector
1
Pin Signal Pin Signal
1 IPMB DATA 2 GND
3 IPMB CLK 4 NC
