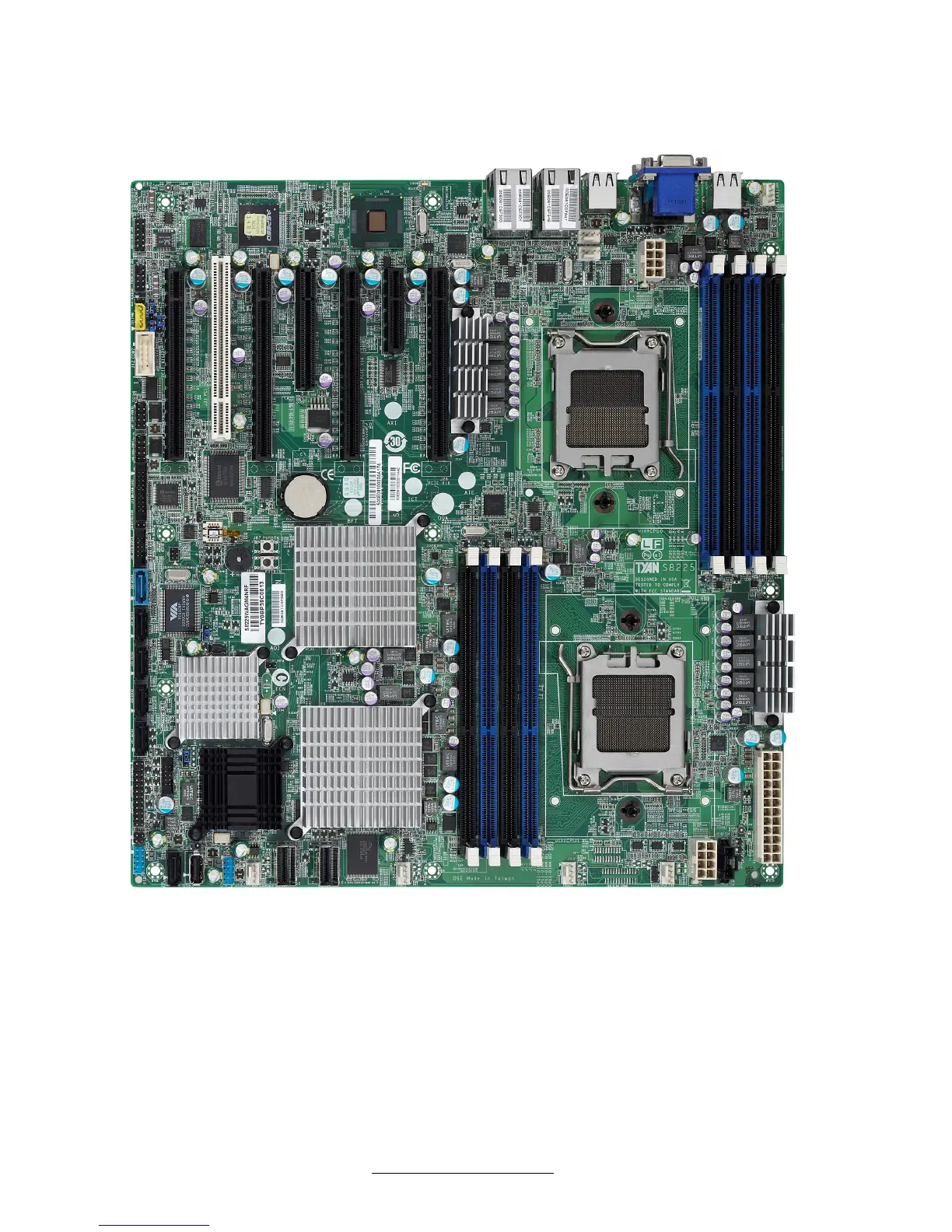

2.1 - Board Image
This diagram is representative of the latest motherboard (S8225WAGM4NRF)
revision available at the time of publishing. The board you receive may not look
exactly like the above diagram.
