2.4 - Installing the Processor and Heatsink
Your brand new S8225, Only AMD
®
“Opteron™ 4100 series” processors
are certified and supported with this motherboard.
Check our website for latest processor support. http://www.TYAN.com
TYAN
®
is not liable for damage as a result of operating an unsupported
configuration.

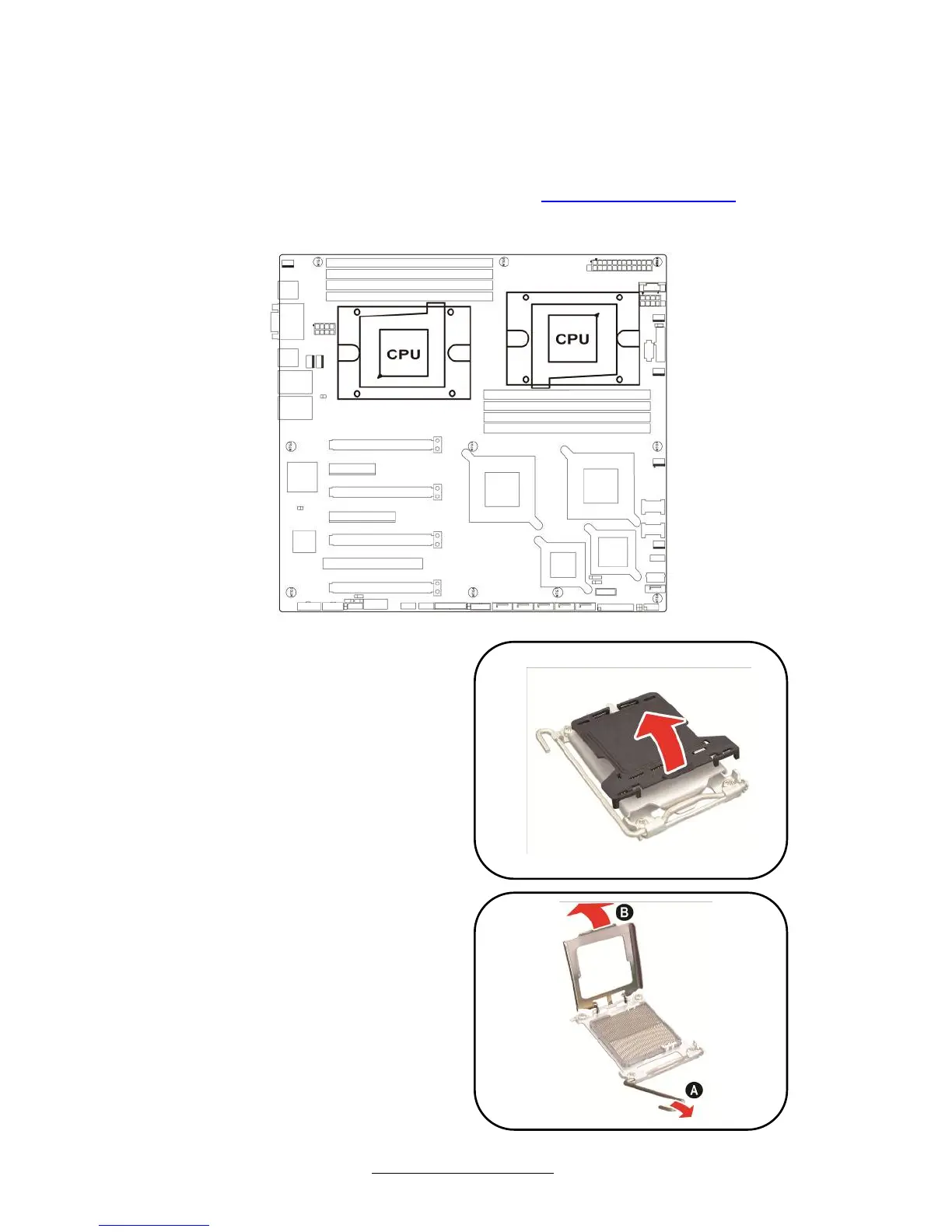

To install a CPU:
1.Take off the CPU protection cap.
2.Press the load lever with your thumb
and then move it to the right until it is
released from the retention tab. Lift the
load lever in the direction of the arrow
until the load plate is completely lifted.
(A) ------load lever
(B) ------load plate
