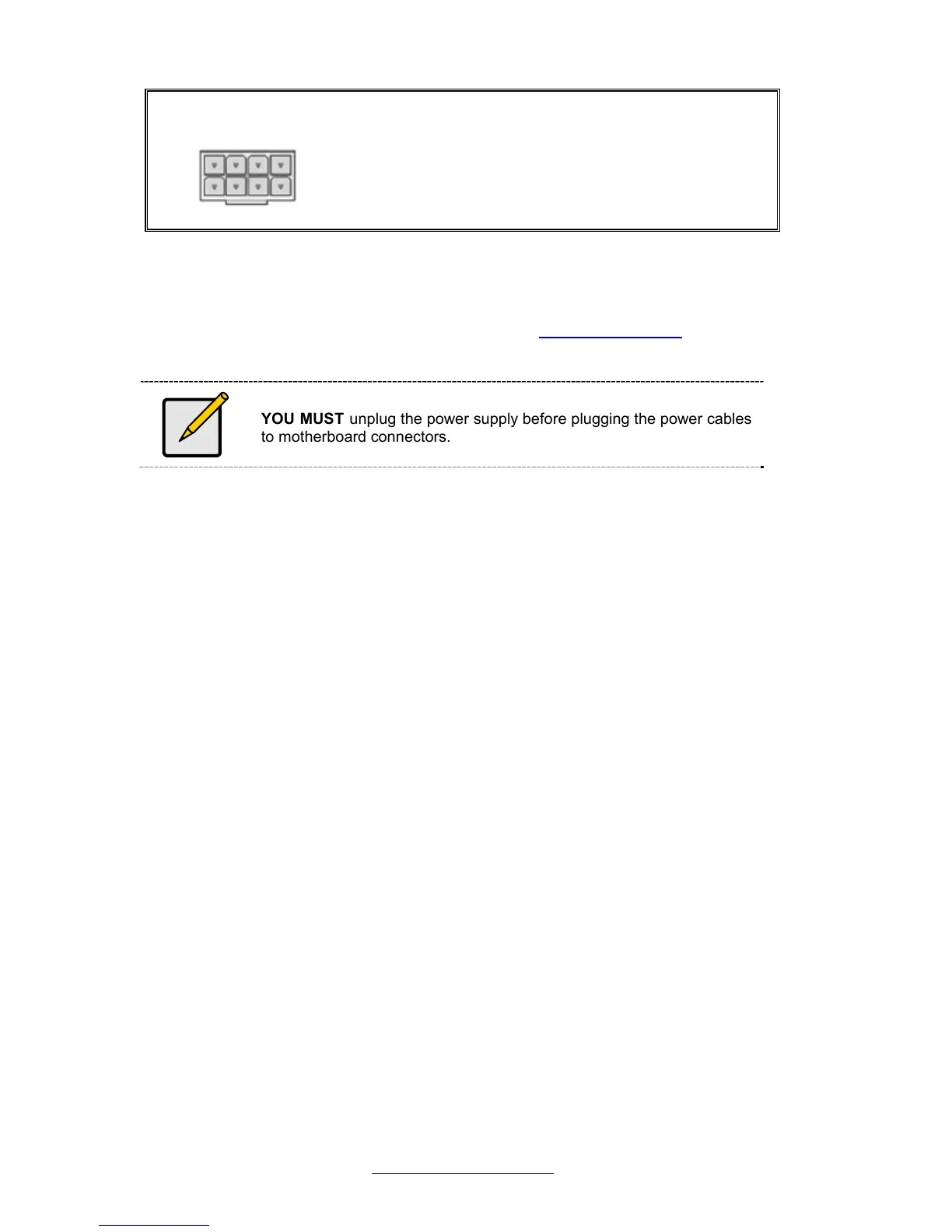

PWR 2: 8-Pin PWR Connector
PIN_1
⑴GND/⑵GND/⑶GND/⑷GND/⑸+12V/⑹+12V/⑺+12V/
⑻+12V
We suggest using a 450W per node supply. A 450W is sufficient for most
common system configurations, however a higher wattage solution may be
needed if the system is fully loaded. Look to the www.TYAN.com
website for
further information.
YOU MUST unplug the power supply before plugging the power cables
to motherboard connectors.
2.12 - Finishing Up
Congratulations on making it this far! You’re finished setting up the hardware
aspects of your computer. Before closing up your chassis, make sure that all
cables and wires are connected properly, especially IDE cables and most
importantly, jumpers. You may have difficulty powering on your system if the
motherboard jumpers are not set correctly. In the rare circumstance that you
have experienced difficulty, you can find help by asking your vendor for
assistance. If they are not available for assistance, please find setup
information and documentation online at our website or by calling your
vendor’s support line.
