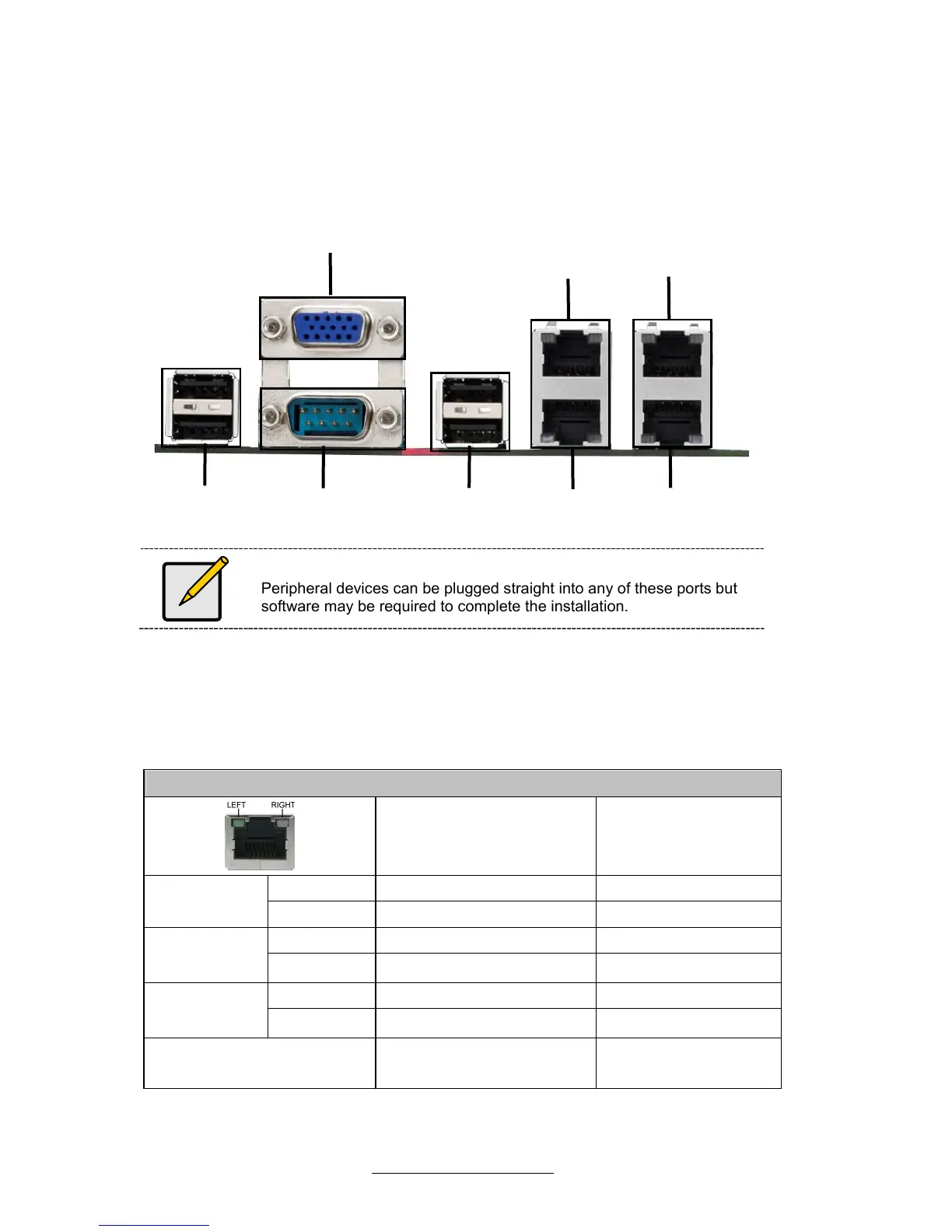

2.10 - Connecting External Devices
Your motherboard supports a number of different interfaces through connecting
peripherals. See the following diagrams for the details.
Peripheral devices can be plugged straight into any of these ports but
software may be required to complete the installation.
Onboard LAN LED Color Definition
The three onboard Ethernet ports have green and yellow LEDs to indicate LAN
status. The chart below illustrates the different LED states.
10/100/1000 Mbps LAN Link/Activity LED Scheme
Left LED Right LED
Link Green Amber
10 Mbps
Active Blinking Green Green
Link Green Amber
100 Mbps
Active Blinking Green Green
Link Green Amber
1000 Mbps
Active Blinking Green Green
No Link/10Mb
mode(Right)
Off Off
LAN 1
VGA port
COM
p
ort
LAN 4
shared with
IPMI Port
USB*2
LAN 2
USB*2
LAN 3
