2.6 - Tips on Installing Motherboard in Chassis
Before installing your motherboard, make sure your chassis has the
necessary motherboard support studs installed. These studs are usually
metal and are gold in color. Usually, the chassis manufacturer will pre-install
the support studs.
Screw holes
If you are unsure of stud placement, simply lay the motherboard inside the
chassis and align the screw holes of the motherboard to the studs inside the
case.

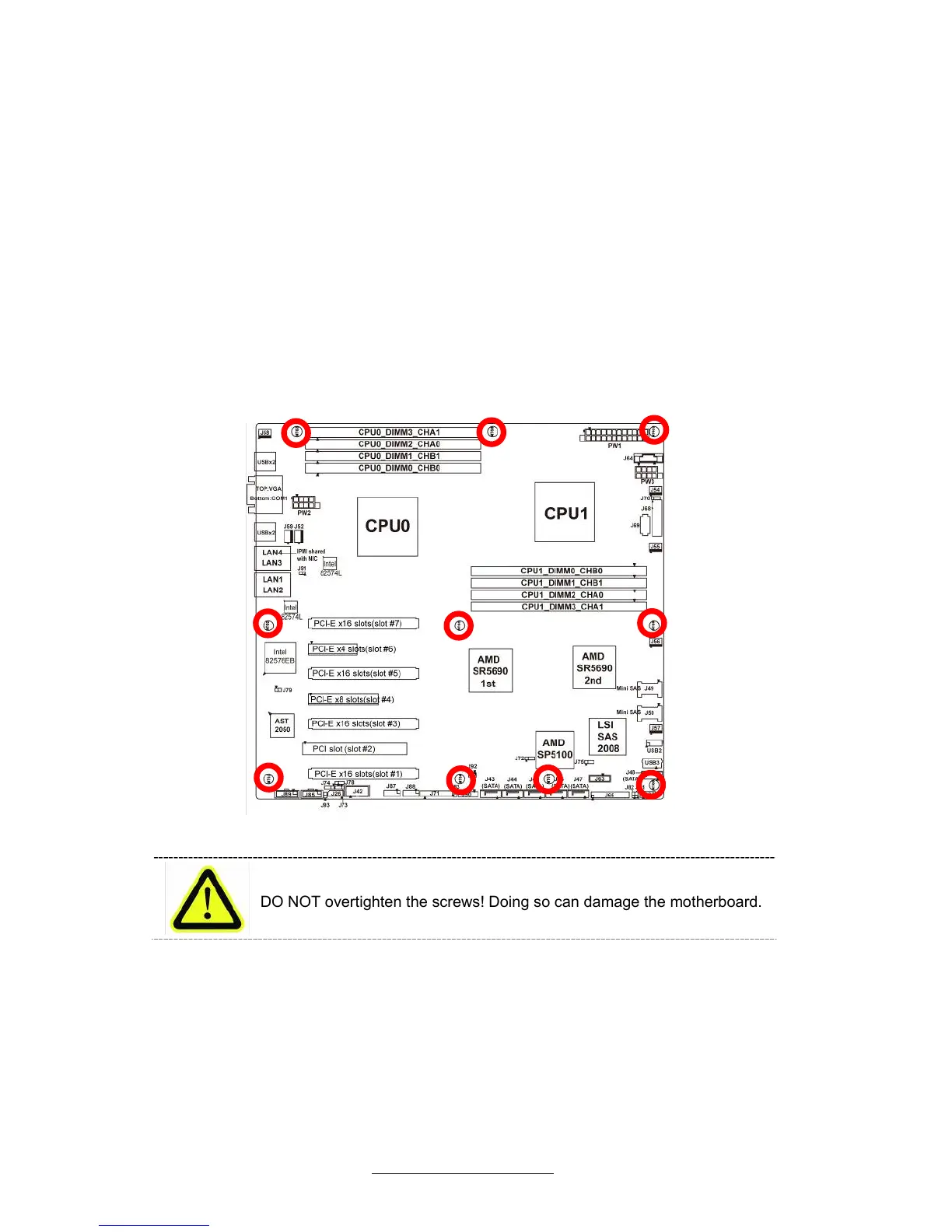

Place 10 screws into the holes indicated by circles to secure the mother
board to the chassis.
DO NOT overtighten the screws! Doing so can damage the motherboard.
