Tyco Electronics TE3124 - 4 Loading Material; 4.1 Loading Labels or Continuous Media from Roll

12 12
i
Notice!
For adjustments and simple installation work, use the accompanying Allen key located in the upper section
of the print unit. No other tools are required for the work described here.
4.1 Loading Labels or Continuous Media from Roll
4.1.1 Positioning the Media Roll on the Roll Retainer
1 32

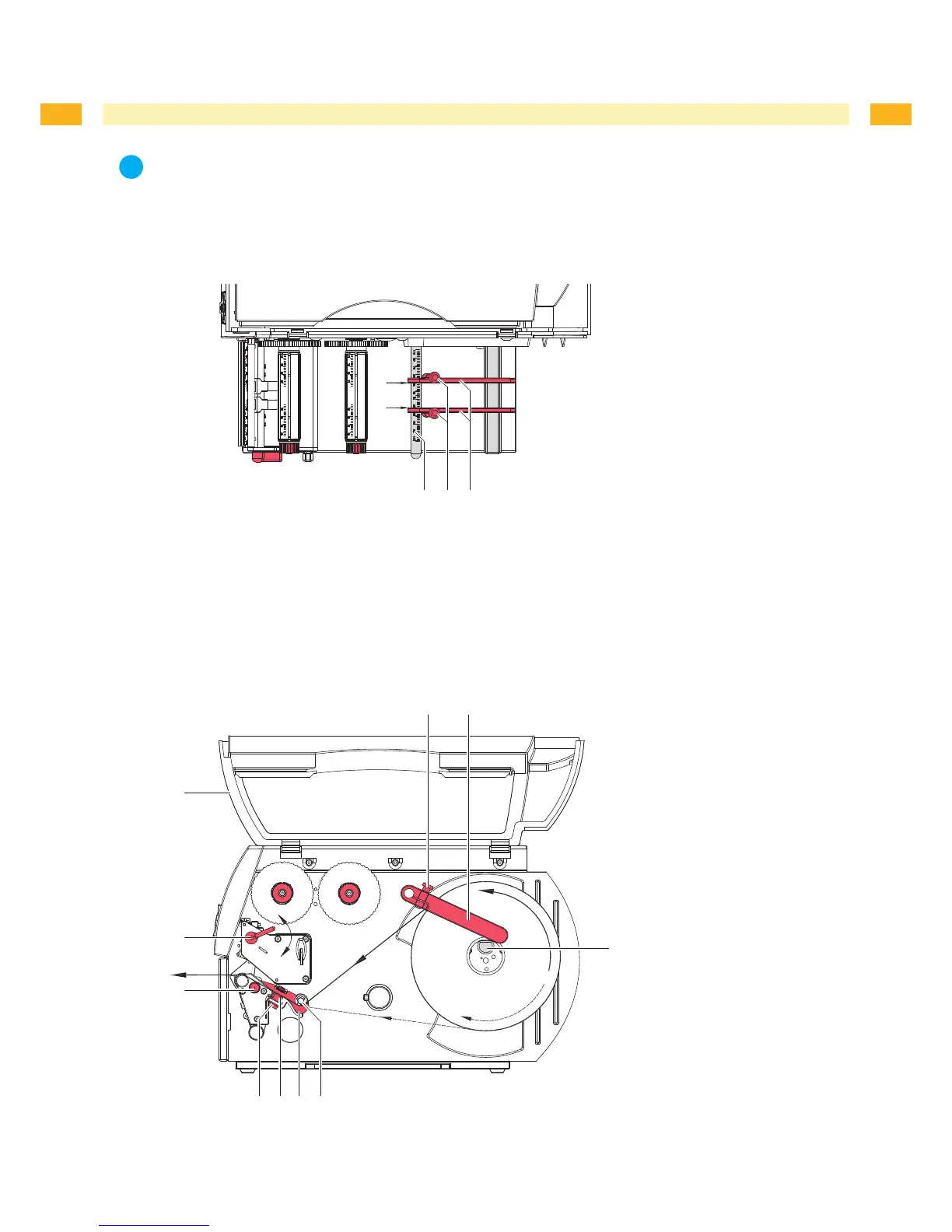

Fig. 5 Adjusting the guide at the roll retainer
Measure the width of the media roll.
Opencover(11).
Loosenknurledscrews(2).
Adjustthemediaguides(3,5)insuchawaythatbothendsoftherollofmediashowidenticalscalevalues..
Figure 5 shows the setting for a roll width of 30 mm.
Tightenknurledscrews(2).
4
2 3
11
10
9
78 56
Fig. 6 Loading media from roll
1.
2.
3.
4.
5.
4 Loading Material
