8 Media
8.1 Media Dimensions
Labels Endless material

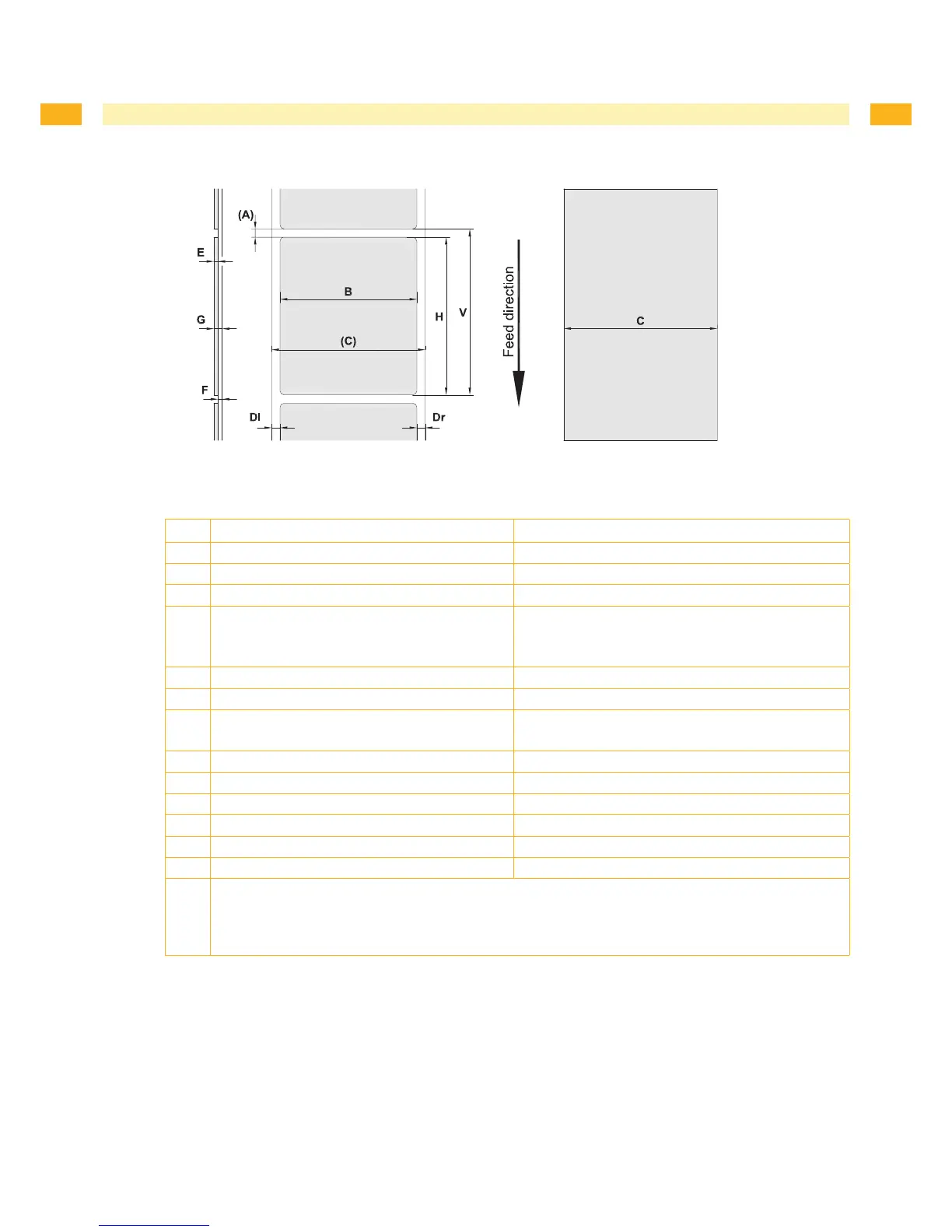

Fig. 13 Label dimensions
Dim. Designation Dim. in mm
B Label width 4 - 106
H Label height 4 - 1000
- Tear-off length > 30
- Cut length
with cutter CU4
with perforation cutter PCU4
> 2
> 12
- Perforation length > 5
A Label distance > 2
C Width of liner
heat shrink tubing
25 - 110
5 - 110
Dl Left margin ≥0
Dr Right margin ≥0
E Label thickness 0,025 - 0,7
F Liner thickness 0,03 - 0,1
G Thickness label with liner 0,055 - 0,8
V Label feed > 7
Small label sizes, thin materials or strong glue can lead to limitations.
Critical applications need to be tested and cleared.
Notethebendingstiffness!Materialmustbeexibletofollowtheradiusoftheprintroller!
For narrow materials a higher minimum thickness is required, e.g. Q = 0,4 at C = 5 !
•
•
•
Table 8 Label dimensions
