PowerSeries - PC1616/PC1808/PC1832/PC1864

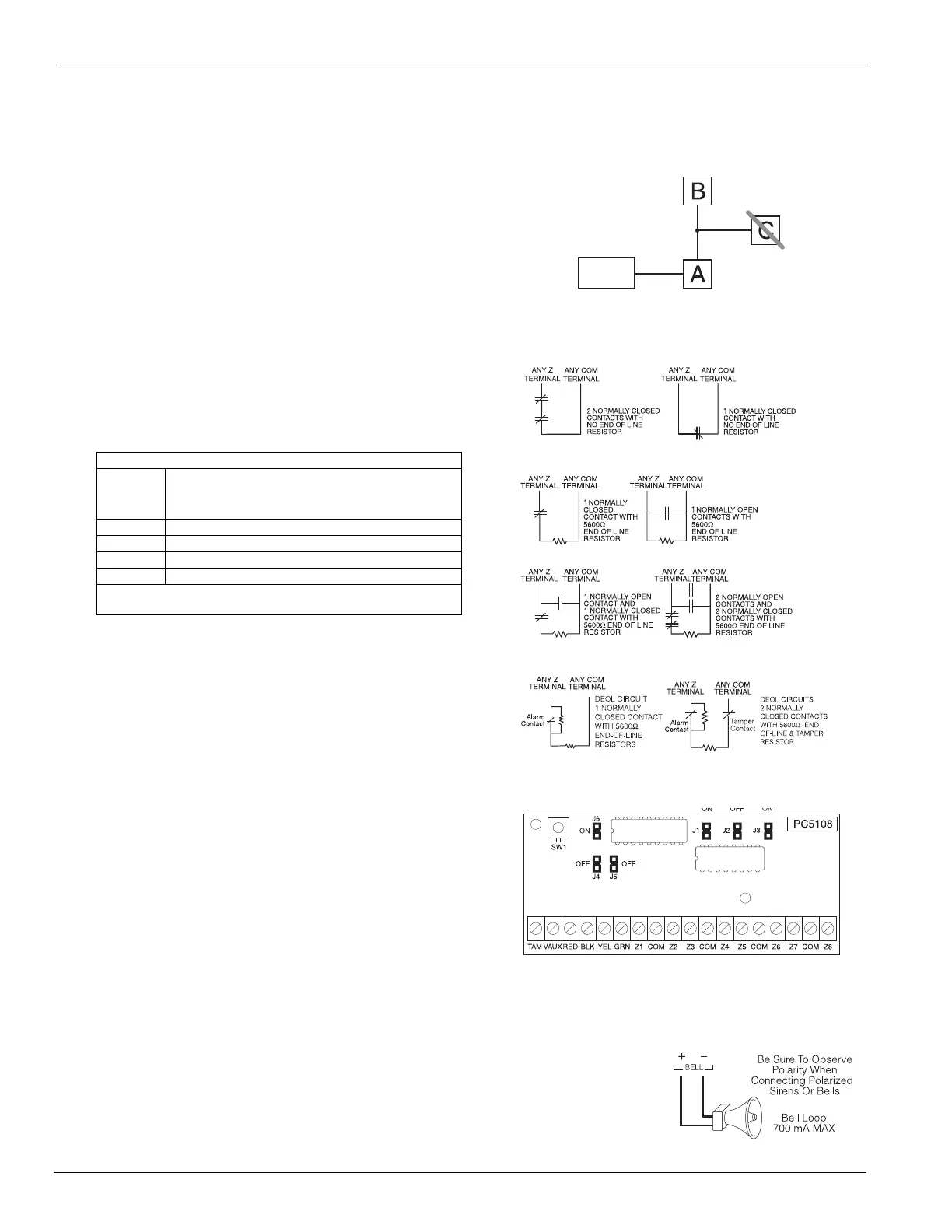

2.2 Keybus Wiring
The 4-wire KEYBUS (red, black, yellow and green) is the communication connection between the control panel and all modules. The 4
KEYBUS terminals of all modules must be connected to the 4 KEYBUS terminals of the main control panel.
The following rules must be followed when wiring the Keybus:
• Minimum 22 AWG wire, max. 18 AWG (2-wire twisted preferred)
•Do NOT use shielded wire
• Modules can be home run, connected in series or can be T-tapped pro-
vided that the maximum wire distance from the control panel to any
module does not exceed 1,000 feet (305m)
• No more than 3,000 feet (915m) of wire can be used in total
2.3 Zone Wiring
Zones can be wired for Normally Open, Normally Closed Contacts with Single-
end-of-line (SEOL) resistors or Double End-of-Line (DEOL) resistors. Observe
the following guidelines
• Minimum 22 AWG wire, maximum 18 AWG
•Do NOT use shielded wire
•
Wire run resistance shall not exceed 100
Refer to the chart below
.
• Section [001]-[004] selects Zone Definition
• Section [013] Opt [1] selects Normally Closed or EOL resistors
• Section [013] Opt [2] selects Single EOL or Double EOL resistors.
• Section [101]-[108] Opt [14], [15], [16] Selects Normally Closed Sin-
gle EOL or Double EOL for on-board zones (Zone 1-8)
Zone Status - Loop Resistance/Loop Status
• Fault
- 0
(shorted wire/loop)
• Tamper
- infinite (broken wire, open)
• Violated
- 11,200
(contact open)
• Secure
- 5600
(contact closed)
2.4 Zone Expanders
Zone expanders add zones in groups of
eight to the Alarm system. Module
jumpers J1, J2, J3 are required to assign
zones to these modules. Jumper settings
for PC5108 v2 are shown here.
• PC5108 v1.0 supports first 32 zones
only
• PC5700 enrolls as two modules
• Do NOT use PC5108 v1 & v2 on the
same panel
Module Zones
Jumpers Assigned
J1 J2 J3
ON ON ON Zones Disabled
OFF ON ON Zones 09-16
ON OFF ON Zones 17-24
OFF OFF ON Zones 25-32
ON ON OFF Zones 33-40
OFF ON OFF Zones 41-48
ON OFF OFF Zones 49-56
OFF OFF OFF Zones 57-64
Refer to the associated installation sheet for Jumper locations for the
PC5108 or PC5700
2.5 Bell Wiring
Bell Output Voltage: 12 VDC, -15%/+10% when input voltage is between 85-110% of rated value and output current is
0.0A - 0.7A.
NOTE: Steady, pulsed alarms are also supported.
The Bell output is supervised and power limited by 2A PTC. If unused, connect a 1000 resistor across Bell+ and Bell-
to prevent the panel from displaying a trouble. See [][2].
CONTROL
PANEL
150’ (46m)
150’ (46m)
500’ (152m)
500’ (152m)
Burglary Zone Wiring Chart
Wire
Gauge
Maximum wire Length to
End-of-line Resistor
(feet/meters)
22
3000 / 914
20
4900 / 1493
19
6200 / 1889
18
7800 / 2377
Figures are based on maximum wiring
resistance of 100
Normally Closed Loops
Single End-of-Line Resistor Wiring
Double End-of-Line Resistor Wiring
