Installation & Wiring

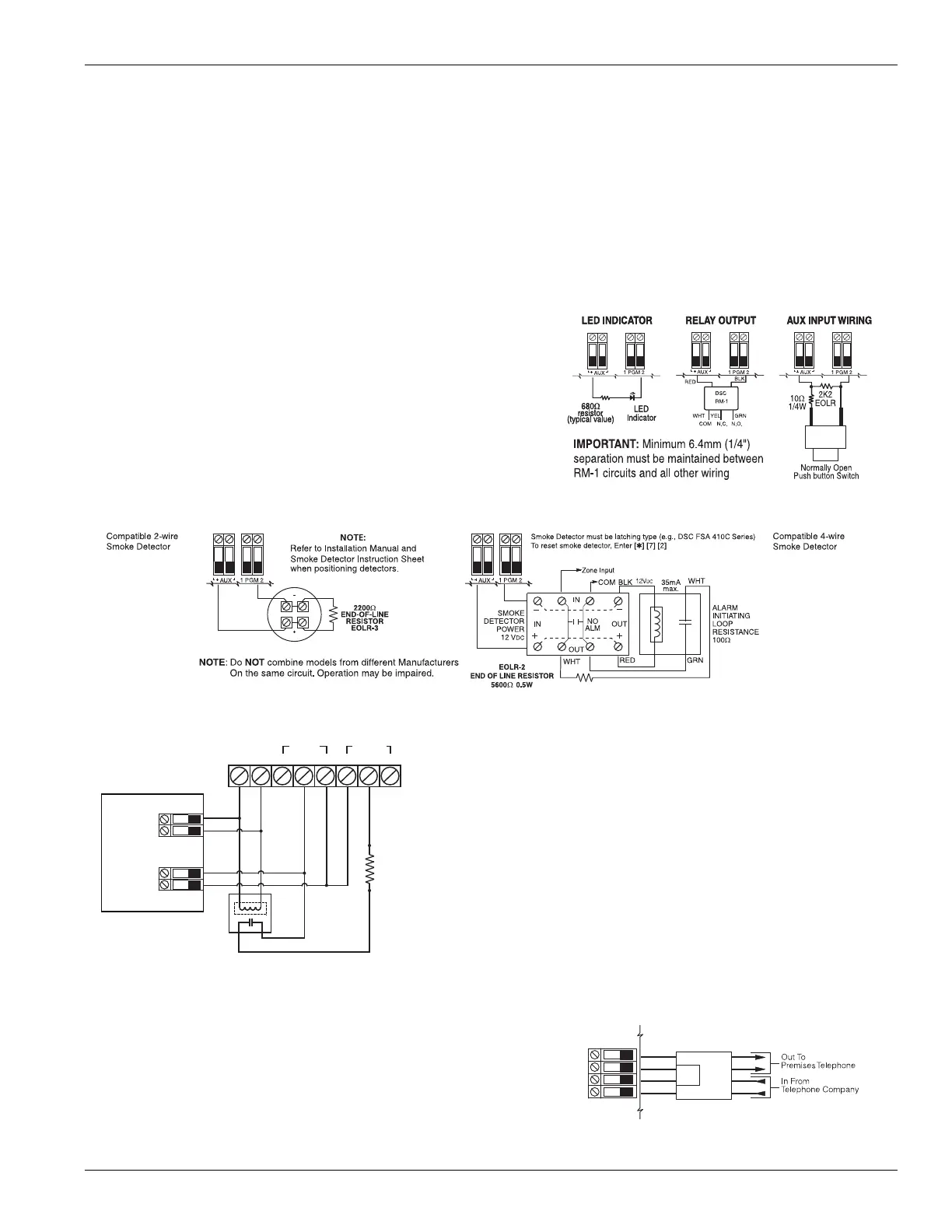

2.6 AUX Power Wiring
The control panel can provide a maximum of 550mA of current for modules, powered detectors, relays, LED’s etc. If the total current required exceeds
550mA an additional power supply is required (e.g.,PC5200, PC5204). See list below.
NOTE: AUX Output voltage: 12V
DC, -15%/+10% when Input Voltage is between 85%-110% of rated value and output current between 0.0A - 0.5A
max. Refer to the list of Compatible Devices on page 3 for the current draw of individual devices.
2.7 PGM Wiring
PGMs switch to ground when activated by control panel.
Connect the positive side of the device to be activated to the AUX+ Terminal.
Connect the negative terminal to the PGM.
current output is as follows
• PGM 1, 3, 4 . . . . . . . . . . . 50mA
• PGM 2 . . . . . . . . . . . . . . 300mA
For currents levels greater than 300mA a relay is required.
PGM2 can also be used for 2-wire smoke detectors.
NOTE: Use SEOL resistors on Fire Zones only.
PGM 1, LED output with current limiting resistor and Optional
Relay driver output
2-wire Smoke Detectors Initiating Circuit
• Style B (Class B), Supervised, Power Limited
• DC Output Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . 9.8-13.8 VDC
• Detector Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2mA (MAX)
• Single-end-of-line (SEOL) Resistor . . . . . . . . . . . . . . . . . . . 2200
• Loop Resistance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24(MAX)
• Standby Impedance . . . . . . . . . . . . . . . . . . . . . . . . . .1020
• Alarm Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . .570(MAX)
• Alarm Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89mA (MAX)
2-wire Smoke Detectors 4-wire Smoke Detectors
2.8 Carbon Monoxide Detector Wiring
2.9 Telephone Line Wiring
Wire the telephone connection terminals (TIP, Ring, T-1, R-1) to an
RJ-31X connector as indicated. Use 26 AWG wire minimum for wiring.
For connection of multiple devices to the telephone line, wire in the sequence indicated.
Telephone format is programmed in section [350].
Telephone Call Directions are programmed in section [351]-[376].
RM-1/RM-2 POWER LOOP
SUPERVISORY RELAY
DSC FSA-210C Series
FSA-210C
FSA-210CT
FSA-210CS
FSA-210CST
FSA-210CLST
FSA-210CR
FSA-210CRT
FSA-210CRS
FSA-210CRST
FSA-210CLRST
FSA-410C
FSA-410CT
FSA-410CS
FSA-410CST
FSA-410CLST
FSA-410CR
FSA-410CRT
FSA-410CRS
FSA-410CRST
FSA-410CLRST
DSC FSA-410C Series
CO DETECTOR
RM-1/RM-2
POWER LOOP
SUPERVISORY
RELAY
(12V
DC, 35mA)
ALARM
INITIATING
LOOP
RESISTANCE
100 ohm
SEOL
RESISTOR
(5600 ohm)
PC1616/1808/1832/1864
ANY
COM
ZONE
INPUT
POWER ALARM TROUBLE
NC C NO NC C NO
ANY
Z
(SEOL TYPE 41)
AUX
+
+
-
-
+
-
DG009789
PC1616/PC1808/1832/1864 v4.5 and higher control panels support
operation of 4-wire CO detectors and DSC wireless CO detectors.
Use only hardwired detectors that are compatible with the AUX output
voltage range of the DSC control panels.
NOTE: Do not loop the wire under terminals for system supervision.
Break the wire run to provide supervision of connections. The power
supervision relay has to be powered from the last detector in the loop.
Wireless CO detectors are also available. When installing wireless CO
detectors, use only DSC model WS4913. A DSC wireless receiver model
RF5132-433 v5.1 (and higher), transceiver model TR5164-433 version 1.0
(and higher) or DSC keypad receiver models RFK55XX-433 (xx= 00/01/
08/16/64) v1.2 (and higher) are required when installing wireless CO
detectors. For more details on either the WS4913 CO detector or the
receivers, please refer to their respective installation manuals.
T-1
R-1
TIP
RING
RJ-31X
RED
GRN
BRN
GRA
To Next Page
